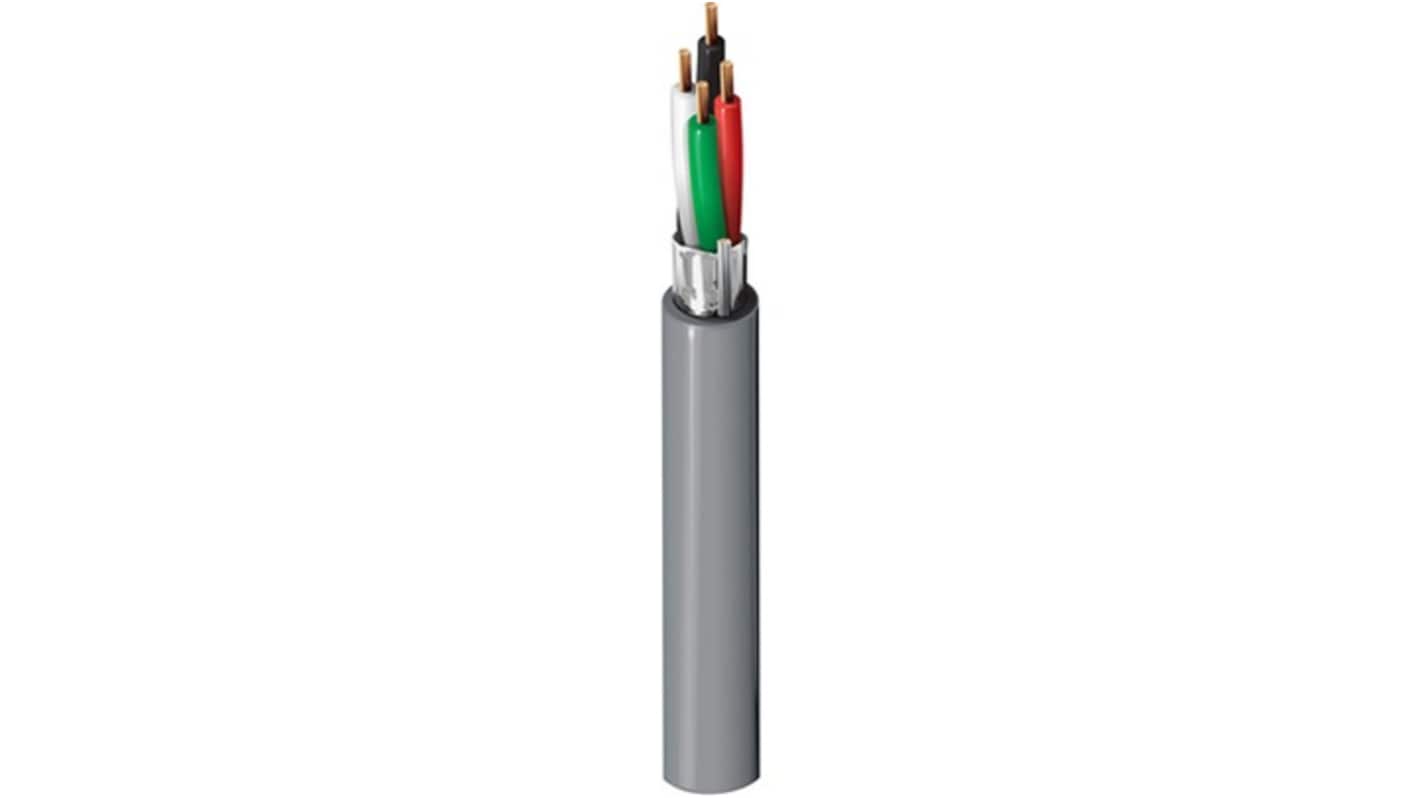

Belden 4502FE Series 4 Core, 22 AWG CSA Screened, 3.7 mm OD, 500 m, Grey

RS Stock No.:: 631-690
Mfr. Part No.:: 4502FE.00500
Brand:: Belden

Belden 4502FE Series 4 Core, 22 AWG CSA Screened, 3.7 mm OD, 500 m, Grey

Subtotal (1 reel of 500 metres)*

£1,088.40

(exc. VAT)

£1,306.08

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

1 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£1,088.40	£2.177

*price indicative

RS Stock No.:: 631-690
Mfr. Part No.:: 4502FE.00500
Brand:: Belden

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Belden
	Product Type	Audio Cable
	Number of Cores	4
	Cross Sectional Area	22 AWG
	Screened/Unscreened	Screened
	Outside Diameter	3.7mm
	Cable Length	500m
	Fire Behaviour	Flame Retardant, Low Smoke Zero Halogen (LSZH)
	Minimum Operating Temperature	-20°C
	Conductor Type	Stranded
	Maximum Operating Temperature	70°C
	Standards/Approvals	IEC 60332‑1‑2, EN 50290‑2‑20, IEC 61034‑2, UKCA, IEC 60754‑1/‑2, RoHS 2
	Jacket Colour	Grey
	Number of Strands	7
	Voltage	30V
	Conductor Material	Bare Copper
	Series	4502FE
	Core Strands	7
	Jacket Material	Polypropylene

	Select all
	Brand Belden
	Product Type Audio Cable
	Number of Cores 4
	Cross Sectional Area 22 AWG
	Screened/Unscreened Screened
	Outside Diameter 3.7mm
	Cable Length 500m
	Fire Behaviour Flame Retardant, Low Smoke Zero Halogen (LSZH)
	Minimum Operating Temperature -20°C
	Conductor Type Stranded
	Maximum Operating Temperature 70°C
	Standards/Approvals IEC 60332‑1‑2, EN 50290‑2‑20, IEC 61034‑2, UKCA, IEC 60754‑1/‑2, RoHS 2
	Jacket Colour Grey
	Number of Strands 7
	Voltage 30V
	Conductor Material Bare Copper
	Series 4502FE
	Core Strands 7
	Jacket Material Polypropylene

Datasheet - 4502FE.00500

COO (Country of Origin):: HU

Belden 4502FE Series Multi-Core Microphone & Instrument Cable, 500m Cable Length, 4 Cores - 4502FE.00500

This multi-core microphone & instrument cable provides screened connectivity for audio signals across professional and industrial environments. Designed for use where reduced emission and robust audio transmission are required, it is supplied on a long reel for continuous deployment and operates at low voltage in fixed or semi-flexible installations.

Features and Benefits:

• 4-core screened construction reduces external interference and crosstalk
• 22AWG stranded copper conductors ensure flexible signal-carrying capacity
• LSZH flame-retardant jacket minimises toxic emissions in fire incidents
• Polypropylene grey outer sheath resists abrasion and simplifies routing
• Rated for 30V operation to suit low-voltage audio systems
• Temperature range from -20°C to 70°C maintains performance in varied conditions

Applications

• Suitable for stage microphone wiring in live performance rigs
• Ideal for multi-instrument wiring in rehearsal and recording studios
• Used with fixed AV installations in theatres and conference venues
• Can be used for long-run audio feeds on sites requiring LSZH materials
• Used for signal distribution in automation panels with screened cabling needs

How many conductors are present and how are they configured?

The cable contains four individual cores, each formed from seven fine strands of bare copper to balance flexibility with conductor area.

What mechanical flexibility can I expect from the cable?

Stranded 22AWG conductors combined with a polypropylene jacket yield a pliable cable suitable for installation runs and moderate handling during setup.

Which standards relate to its fire and smoke performance?

It meets recognised tests for flame propagation and smoke/toxic gas emissions under international and regional test criteria for low-smoke, low-halogen materials.

Is the cable screened and how does that affect installations?

Yes, it is screened to provide electromagnetic protection, which is especially useful when routing near power or control cabling to preserve audio integrity.
