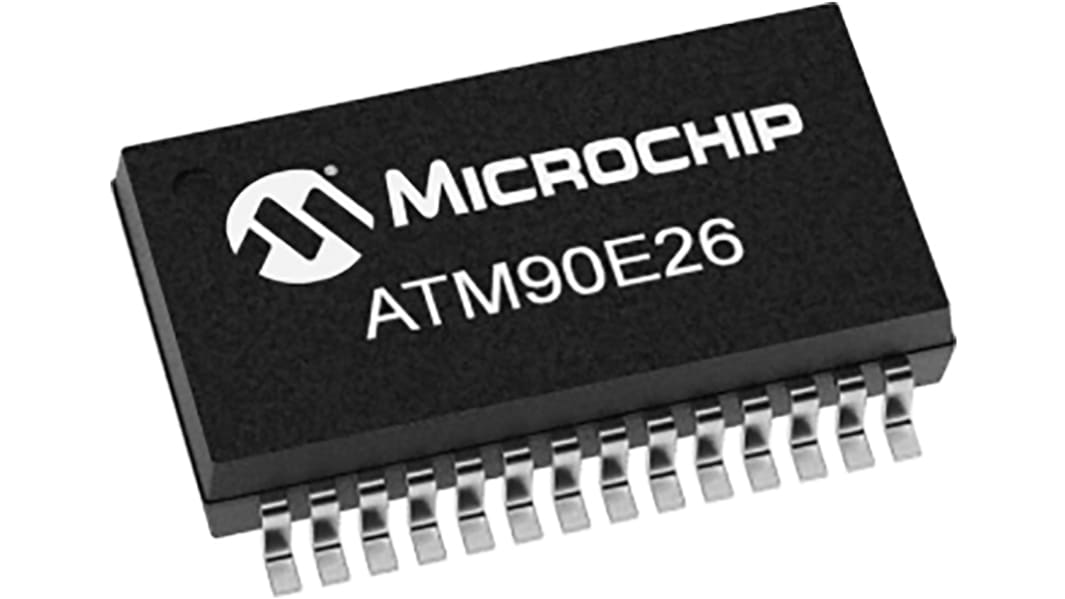

Microchip ATM90E26-YU-R Energy Metering IC, 3-Channel 16 bit, 8 kHz UART, SPI, 28-Pin SSOP

View all Analogue Front End

Subtotal (1 pack of 10 units)*

£10.48

(exc. VAT)

£12.58

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 350 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 +£1.048£10.48

*price indicative

Packaging Options:
RS Stock No.:
177-3162
Mfr. Part No.:
ATM90E26-YU-R
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Product Type

Energy Metering IC

Number of ADCs

3

Resolution

16 bit

Sampling Rate

8kHz

Interface Type

UART, SPI

Number of Channels

3

Mount Type

Surface

Package Type

SSOP

Minimum Supply Voltage

2.8V

Pin Count

28

Maximum Supply Voltage

3.6V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Series

M90E26

Height

1.78mm

Standards/Approvals

IEC62052-11, IEC62053-21, IEC62053-23

Length

10.33mm

Automotive Standard

No

The ATM90E26 is a high-performance energy metering device for single-phase two-wire, single-phase three-wire or anti-tampering active and reactive energy meters. With the measurement function, the ATM90E26 can also be used in power instruments which need to measure voltage, current, etc.

Additional Features:

Accuracy of 0.1% for active energy and 0.2% for reactive energy over a dynamic range of 5000:1.

Temperature coefficient is 15 ppm/ ℃ (typical) for on-chip reference voltage.

Single-point calibration for active energy, no calibration needed for reactive energy.
