RS PRO Analogue Panel Ammeter DC, 76 mm x 74 mm, ±1.5 % High Torque Pivot and Jewel Moving Coil and Moving Iron
- RS Stock No.:
- 186-2530
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£34.76
(exc. VAT)
£41.71
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £34.76 |
| 5 - 9 | £33.02 |
| 10 + | £31.28 |
*price indicative
- RS Stock No.:
- 186-2530
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Analogue Panel Ammeter | |
| Current Type | DC | |
| Moving Element | High Torque Pivot and Jewel Moving Coil and Moving Iron | |
| Cutout Height | 76mm | |
| Cutout Width | 74mm | |
| Depth | 45.7mm | |
| Meter Accuracy | ±1.5 % | |
| Maximum Operating Temperature | 60°C | |
| Minimum Operating Temperature | 0°C | |
| Standards/Approvals | 93/68/EEC, UL3111-1, EN 60664-1, IEC 529, IS9249, ISO 20653:2006-08, EN 61010-1, part 5, IS 1248, IS: 9000, ANSI C39.1, DIN 43802, UL 94 V-O, 2014/30/EC, DIN 43807, IEC 1010, VDE 0110-1:2008-01, IEC 51, 2014/35/EC, VDE/VDI 3540, DIN 46200/46282, BS EN 61326, IS 2419, DIN 43701 | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Analogue Panel Ammeter | ||
Current Type DC | ||
Moving Element High Torque Pivot and Jewel Moving Coil and Moving Iron | ||
Cutout Height 76mm | ||
Cutout Width 74mm | ||
Depth 45.7mm | ||
Meter Accuracy ±1.5 % | ||
Maximum Operating Temperature 60°C | ||
Minimum Operating Temperature 0°C | ||
Standards/Approvals 93/68/EEC, UL3111-1, EN 60664-1, IEC 529, IS9249, ISO 20653:2006-08, EN 61010-1, part 5, IS 1248, IS: 9000, ANSI C39.1, DIN 43802, UL 94 V-O, 2014/30/EC, DIN 43807, IEC 1010, VDE 0110-1:2008-01, IEC 51, 2014/35/EC, VDE/VDI 3540, DIN 46200/46282, BS EN 61326, IS 2419, DIN 43701 | ||
RoHS Status: Exempt

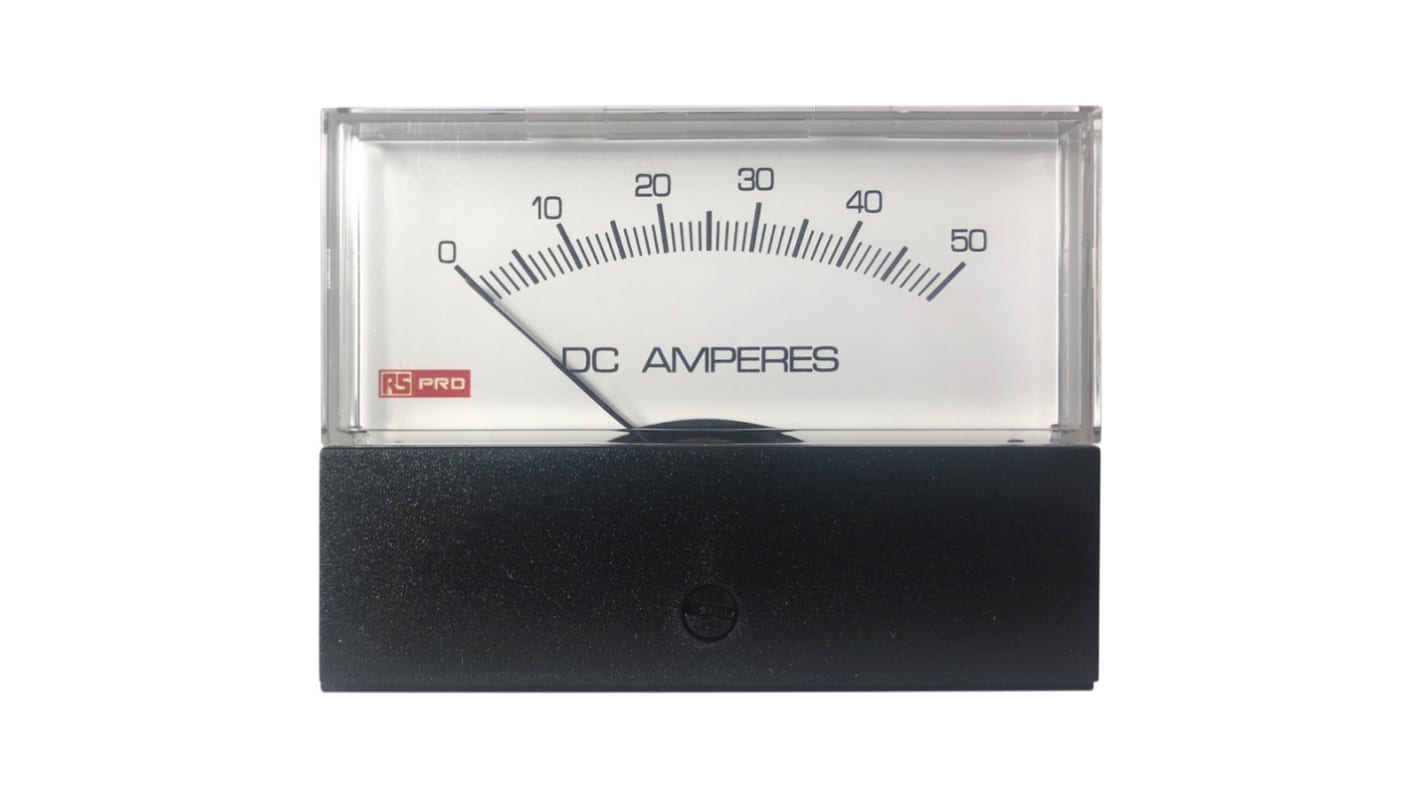

RS PRO DC Analogue Panel Ammeter
The RS PRO 2.5in 76mm x 74mm cut-out DC analogue panel ammeter has a measurement range from 0A to 50A input. The meter offers a centre cored, self-shielding moving coil movement using pivots, hairsprings, and sprung jewels. The meter is enclosed in a polycarbonate cover. This innovative design features a detachable lower fascia plate that allows good flexibility.
Features and Benefits
• Operating temperature ranges between 0°C and 60°C
• Accuracy: 1.5%
• Pointer: Knife-edge type
• Relative humidity: From 25% to 80%
• Rear zero adjuster
• High torque pivot
Applications
• Marine
• Switchgear
• Distribution systems
• Control panels
• Embedded generation, energy management, building management
• Utility power monitoring
• Motor monitoring
Certifications
• UL 94 V-0 approved
• 2014/30/EC (EMC directive)
• 2014/35/EC (low voltage directive)
• CE certified
• IP42 rated
• EN 61010-1
• VDE 0110-1: 2008-01 approved
• IEC 529
• IEC 1010
• ISO 20653: 2006-08
Note
Terminals : 10-32 UNF, with Nominal Diameter of 4.826mm
