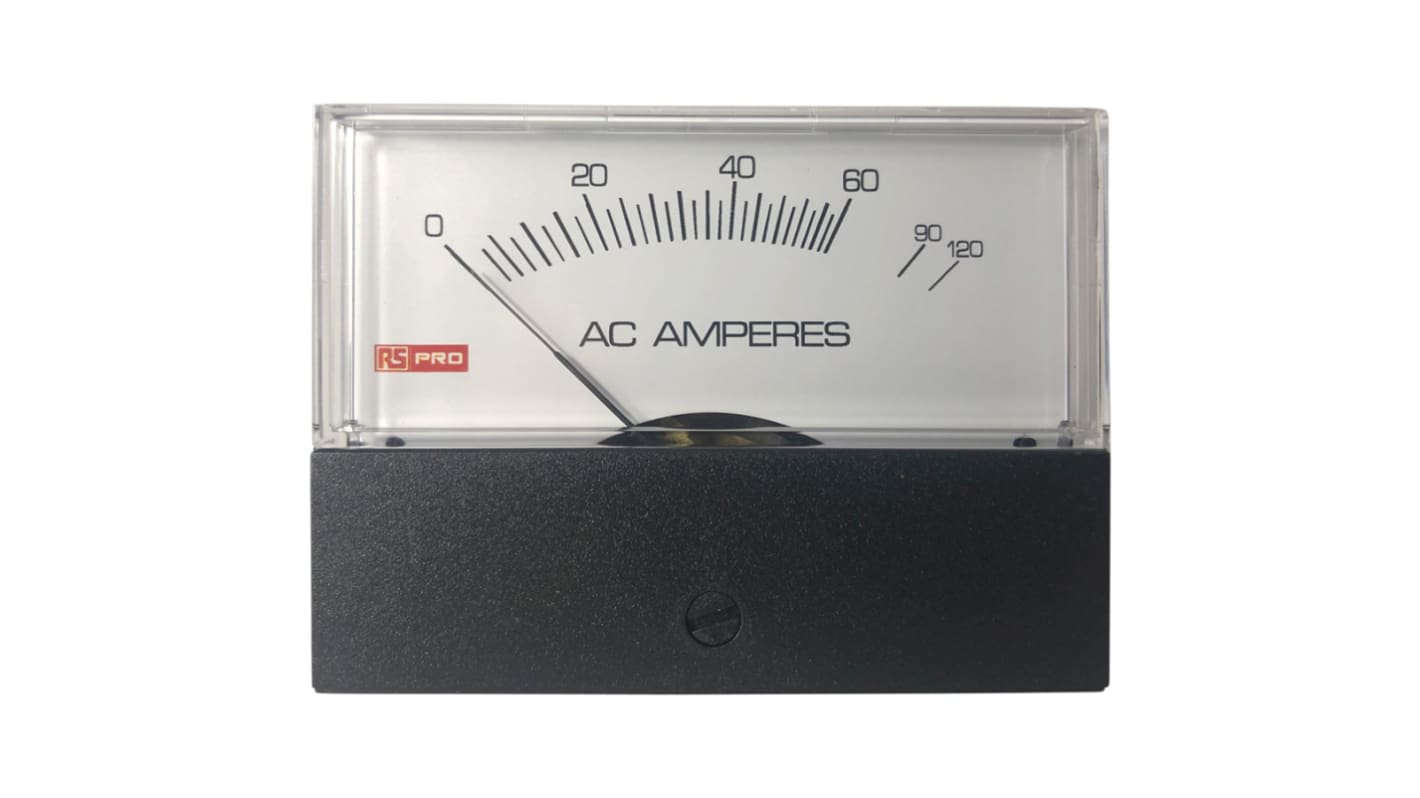

RS PRO Analogue Panel Ammeter 60 A AC, 76 mm x 74 mm, ±1.5 % High Torque Pivot and Jewel Moving Coil and Moving Iron
- RS Stock No.:
- 186-2518
- Brand:
- RS PRO
Subtotal (1 unit)*
£25.59
(exc. VAT)
£30.71
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £25.59 |
*price indicative
- RS Stock No.:
- 186-2518
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Analogue Panel Ammeter | |
| Current Type | AC | |
| Moving Element | High Torque Pivot and Jewel Moving Coil and Moving Iron | |
| Cutout Height | 76mm | |
| Cutout Width | 74mm | |
| Depth | 45.7mm | |
| Meter Accuracy | ±1.5 % | |
| Maximum Operating Temperature | 60°C | |
| Maximum Ampere Value | 60 A | |
| Minimum Operating Temperature | 0°C | |
| Standards/Approvals | ISO 20653:2006-08, IS9249, 2014/35/EC, BS EN 61326, IEC 1010, DIN 43701, part 5, VDE/VDI 3540, UL3111-1, DIN 43802, EN 60664-1, IS 2419, 93/68/EEC, DIN 46200/46282, VDE 0110-1:2008-01, 2014/30/EC, IS 1248, ANSI C39.1, IEC 529, EN 61010-1, DIN 43807, IS:9000, IEC 51, UL 94 V-O | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Analogue Panel Ammeter | ||
Current Type AC | ||
Moving Element High Torque Pivot and Jewel Moving Coil and Moving Iron | ||
Cutout Height 76mm | ||
Cutout Width 74mm | ||
Depth 45.7mm | ||
Meter Accuracy ±1.5 % | ||
Maximum Operating Temperature 60°C | ||
Maximum Ampere Value 60 A | ||
Minimum Operating Temperature 0°C | ||
Standards/Approvals ISO 20653:2006-08, IS9249, 2014/35/EC, BS EN 61326, IEC 1010, DIN 43701, part 5, VDE/VDI 3540, UL3111-1, DIN 43802, EN 60664-1, IS 2419, 93/68/EEC, DIN 46200/46282, VDE 0110-1:2008-01, 2014/30/EC, IS 1248, ANSI C39.1, IEC 529, EN 61010-1, DIN 43807, IS:9000, IEC 51, UL 94 V-O | ||
RoHS Status: Exempt
RS PRO AC Analogue Panel Ammeter
The RS PRO 2.5in 76mm x 74mm cut-out AC analogue panel ammeter has a measurement range from 0A to 10A input and 0A to 120A scale. The moving iron clapper type repulsion design consists of a pivot, a hairspring, and a jewel movement. The bottom jewel is oil-filled to provide damping while the top spring is for resilience. The meter is enclosed in a polycarbonate cover. This innovative design features a detachable lower fascia plate that allows good flexibility.
Features and Benefits
• Operating temperature ranges between 0°C and 60°C
• Accuracy: 1.5%
• Pointer: Knife-edge type
• Relative humidity: From 25% to 80%
• Rear zero adjuster
• High torque pivot
Applications
• Marine
• Switchgear
• Distribution systems
• Control panels
• Embedded generation, energy management, building management
• Utility power monitoring
• Motor monitoring
Certifications
• UL 94 V-0 approved
• 2014/30/EC (EMC directive)
• 2014/35/EC (low voltage directive)
• CE certified
• IP42 rated
• EN 61010-1
• VDE 0110-1: 2008-01 approved
• IEC 529
• IEC 1010
• ISO 20653: 2006-08
