RS PRO Analogue Panel Ammeter 1000 A DC, 57 mm x 44 mm, ±1.5 % High Torque Pivot and Jewel Moving Coil and Moving Iron

View all Ammeters
Bulk discount available

Subtotal (1 unit)*

£21.41

(exc. VAT)

£25.69

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 38 unit(s) shipping from 29 April 2026
  • Plus 3 unit(s) shipping from 29 April 2026
  • Plus 20 unit(s) shipping from 25 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£21.41
5 - 9£20.34
10 +£19.27

*price indicative

RS Stock No.:
186-2536
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Analogue Panel Ammeter

Current Type

DC

Moving Element

High Torque Pivot and Jewel Moving Coil and Moving Iron

Cutout Height

57mm

Cutout Width

44mm

Depth

45.7mm

Meter Accuracy

±1.5 %

Maximum Operating Temperature

60°C

Minimum Operating Temperature

0°C

Maximum Ampere Value

1000 A

Standards/Approvals

DIN 43701, UL 94 V-O, EN 61010-1, ISO 20653:2006-08, 93/68/EEC, DIN 43807, ANSI C39.1, IS 1248, BS EN 61326, UL3111-1, IEC 529, IS 2419, VDE 0110-1:2008-01, 2014/35/EC, EN 60664-1, DIN 43802, 2014/30/EC, DIN 46200/46282, IEC 1010, VDE/VDI 3540, IEC 51, IS: 9000, IS9249

Maximum Measurement

600 V, 1000 A

RoHS Status: Exempt

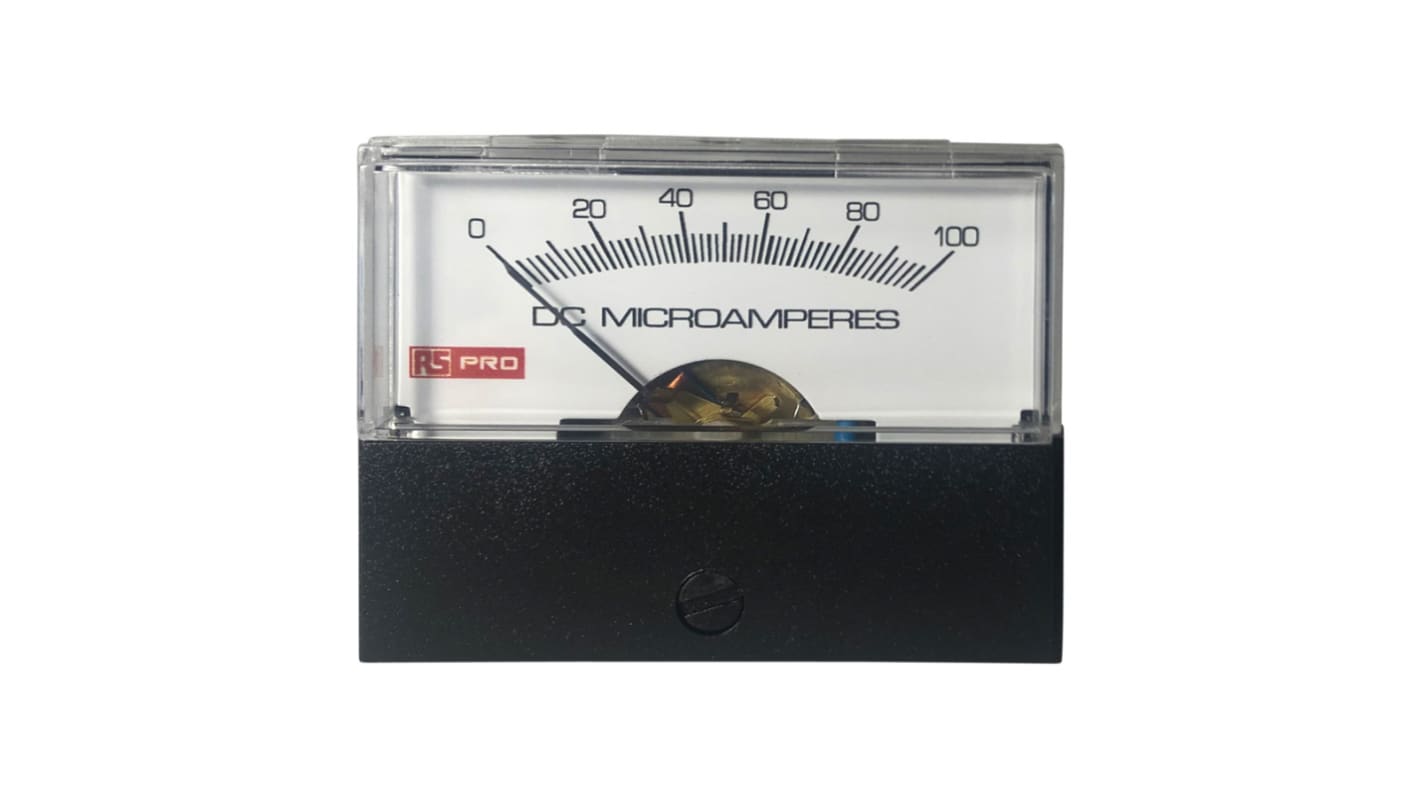

RS PRO DC Analogue Panel Ammeter


The RS PRO 1.5in 57mm x 44mm cut-out DC analogue panel ammeter has a measurement range of 0μA to 100μA input. The meter consists of a centre cored, self-shielding moving coil movement using pivots, hairsprings, and sprung jewels. The meter is enclosed in a polycarbonate cover. This innovative design features a detachable lower fascia plate that allows flexibility.

Features and Benefits


• Operating temperature ranges between 0°C and 60°C

• Accuracy: 1.5%

• Pointer: Knife-edge type

• Relative humidity: 25% to 80%

• Rear zero adjuster

• High torque pivot and jewel movement

Applications


• Marine

• Switchgear

• Distribution systems

• Control panels

• Embedded generation, energy management, building management

• Utility power monitoring

• Motor monitoring

Certifications


• UL 94 V-0 approved

• 2014/30/EC (EMC directive)

• 2014/35/EC (low voltage directive)

• CE certified

• IP42 rated

• EN 61010-1

• VDE 0110-1: 2008-01 approved

• IEC 529

• IEC 1010

• ISO 20653: 2006-08
