RS PRO RS PRO Analogue Panel Ammeter 100 A AC, 92 mm x 92 mm, 1 % Moving Iron
- RS Stock No.:
- 186-2466
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£18.36
(exc. VAT)
£22.03
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | £18.36 |
| 5 - 9 | £17.44 |
| 10 + | £16.53 |
*price indicative
- RS Stock No.:
- 186-2466
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Analogue Panel Ammeter | |
| Current Type | AC | |
| Moving Element | Moving Iron | |
| Cutout Height | 92mm | |
| Cutout Width | 92mm | |
| Depth | 62mm | |
| Meter Accuracy | 1 % | |
| Maximum Operating Temperature | 65°C | |
| Maximum Ampere Value | 100 A | |
| Minimum Operating Temperature | -10°C | |
| Standards/Approvals | DIN 46200/46282, IEC51/DINEN60051, 2014/35/EC, IEC 529, ISO 20653:2006-08, EN 61010, VDE/VDI 3540, DIN 43802, DIN 43718, DIN 43807, 93/68/EEC, IEC 61010, UL 94 V-0, DIN 43701, 2014/30/EC, VDE 0100-410:2018-10, DIN IEC 61554 | |
| Series | RS PRO | |
| Maximum Measurement | 1000 A | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Analogue Panel Ammeter | ||
Current Type AC | ||
Moving Element Moving Iron | ||
Cutout Height 92mm | ||
Cutout Width 92mm | ||
Depth 62mm | ||
Meter Accuracy 1 % | ||
Maximum Operating Temperature 65°C | ||
Maximum Ampere Value 100 A | ||
Minimum Operating Temperature -10°C | ||
Standards/Approvals DIN 46200/46282, IEC51/DINEN60051, 2014/35/EC, IEC 529, ISO 20653:2006-08, EN 61010, VDE/VDI 3540, DIN 43802, DIN 43718, DIN 43807, 93/68/EEC, IEC 61010, UL 94 V-0, DIN 43701, 2014/30/EC, VDE 0100-410:2018-10, DIN IEC 61554 | ||
Series RS PRO | ||
Maximum Measurement 1000 A | ||
RoHS Status: Exempt

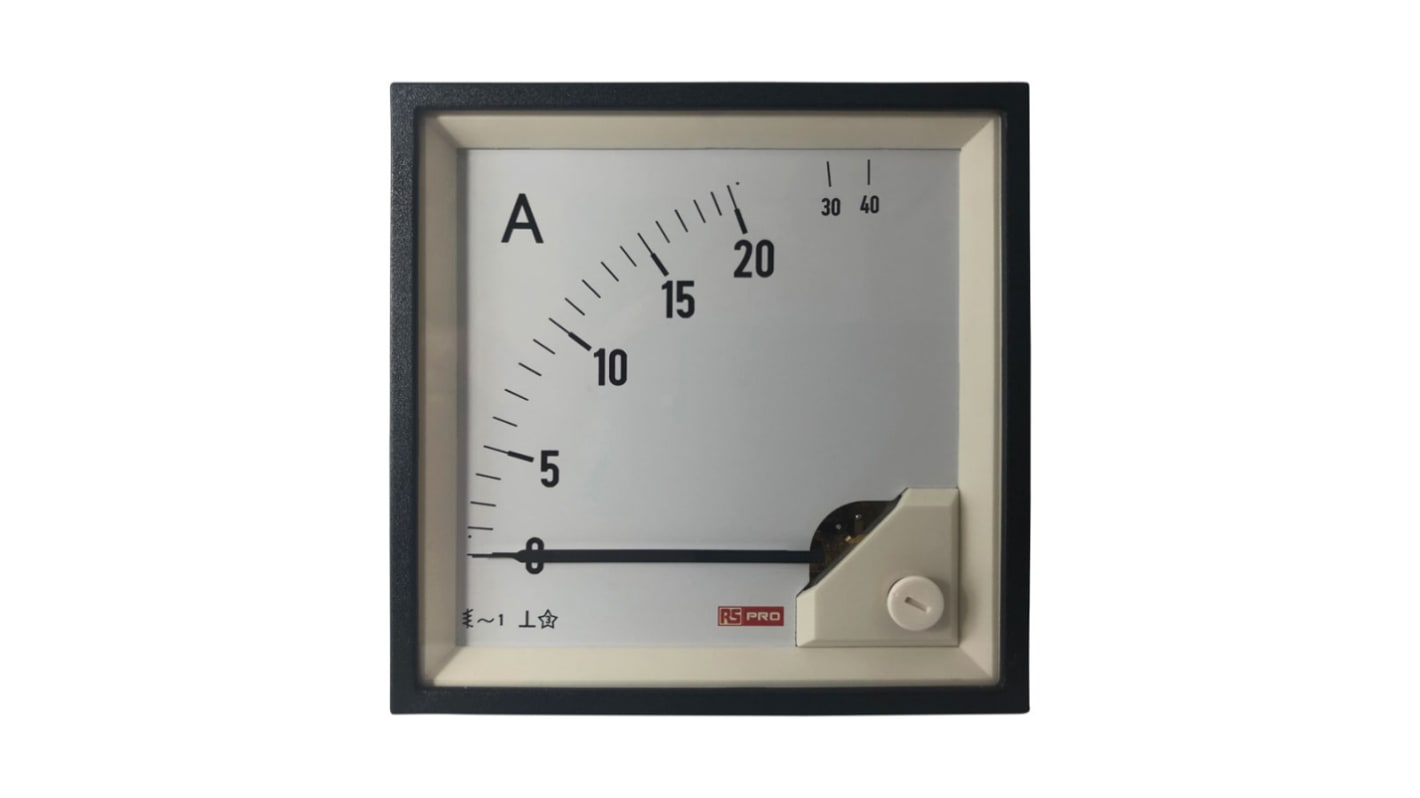

RS PRO AC Analogue Panel Ammeter
The RS PRO 92mm x 92mm cut-out AC analogue panel ammeter has a measurement range from 0A to 40A input. The DIN style panel meter comprises of moving iron movement that indicates true RMS value and it is substantially independent of system waveform. The scales are calibrated down to 10% and can have overload scales of X2, X3, X5, or X6 to measure motor inrush current. The meter is housed in a moulded polycarbonate case and it is suitable for measurement of AC currents in the frequency range from 15Hz to 400Hz.
Features and Benefits
• Operating temperature ranges between -10°C and 65°C
• Accuracy: 1%
• Pointer: Knife-edge type
• Pointer deflection: From 0° to 90°
• Nominal range of use: From 100mA to 100A direct connection
• Shock resistance: 15g for pulse duration 11 milliseconds
• Moulded square case suitable for mounting control/switchgear panels in machinery consoles
• Overload: 2 times nominal current (continuous)
• Relative humidity: Less than 75% annual average (noncondensing)
Certifications
• UL 94 V-0 approved
• 2014/30/EC (EMC directive)
• 2014/35/EC (low voltage directive)
• CE certified
• IP52 rated
• EN 61010
• VDE 0100-410: 2018-10 approved
• IEC 529
• IEC 61010
• ISO 20653: 2006-08
