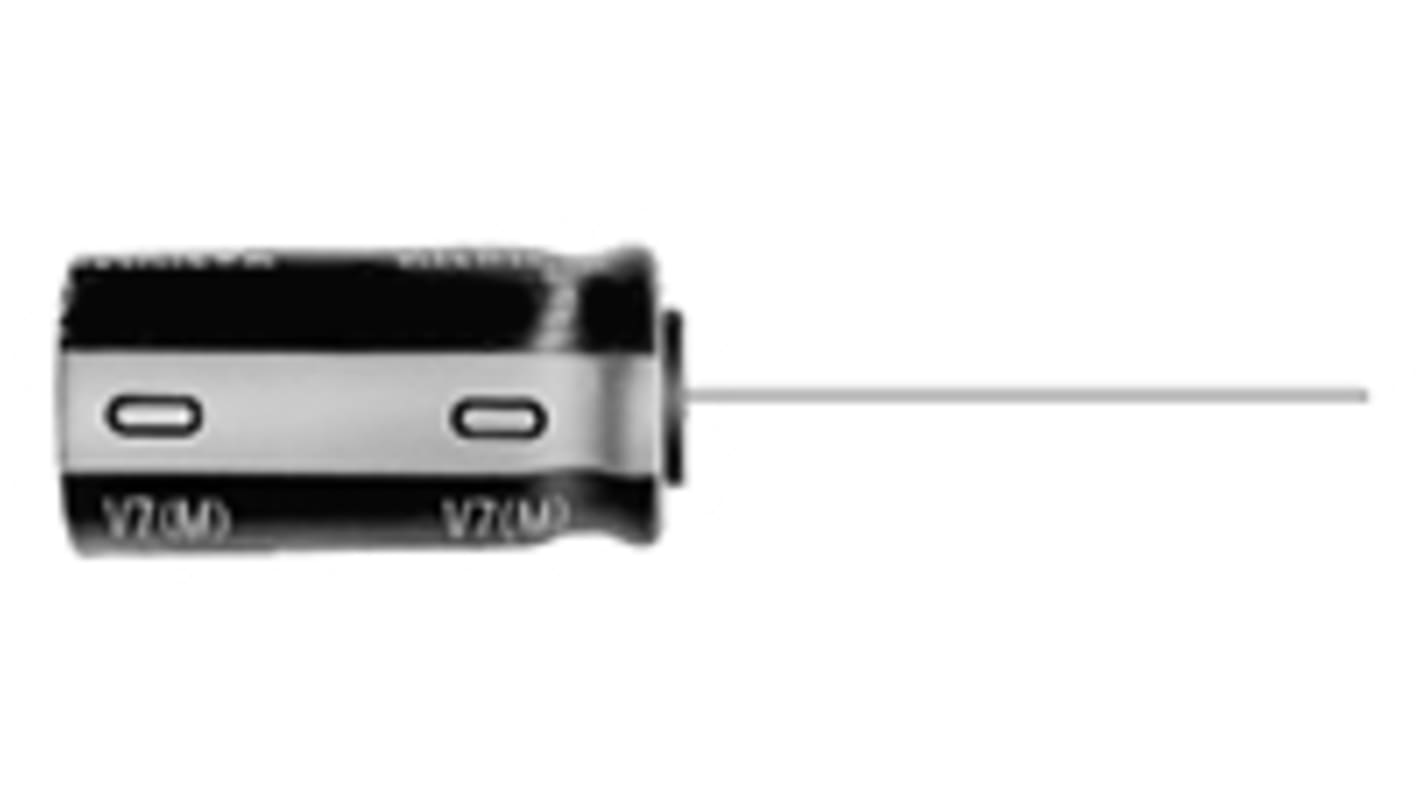

Nichicon 6800 μF Capacitor 50 V, 50V dc, Radial, Radial, Through Hole, Through Hole - UVZ1H682MRD Lead
- RS Stock No.:
- 845-4792
- Mfr. Part No.:
- UVZ1H682MRD
- Brand:
- Nichicon
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 845-4792
- Mfr. Part No.:
- UVZ1H682MRD
- Brand:
- Nichicon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nichicon | |
| Capacitance | 6800μF | |
| Product Type | Capacitor | |
| Voltage | 50, 50V | |
| Mount Type | Radial, Radial, Through Hole, Through Hole | |
| Construction | Radial Can | |
| Packaging | Bulk | |
| Height | 50mm | |
| Polarity | Polar | |
| Length | 50mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 22mm | |
| Pin Count | 2 | |
| Capacitor Ripple Current | 2.5A | |
| Termination Type | Lead | |
| Maximum Operating Temperature | 105°C | |
| Lifetime | 1000 h, 1000 h | |
| Standards/Approvals | 2011/65/EU, EU2015/863, RoHS | |
| Lead Pitch | 10mm | |
| Tolerance | ±20 % | |
| Series | VZ | |
| Automotive Standard | No | |
| Leakage Current | 10200μA | |
| Dissipation Factor | 0.12% | |
| Select all | ||
|---|---|---|
Brand Nichicon | ||
Capacitance 6800μF | ||
Product Type Capacitor | ||
Voltage 50, 50V | ||
Mount Type Radial, Radial, Through Hole, Through Hole | ||
Construction Radial Can | ||
Packaging Bulk | ||
Height 50mm | ||
Polarity Polar | ||
Length 50mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 22mm | ||
Pin Count 2 | ||
Capacitor Ripple Current 2.5A | ||
Termination Type Lead | ||
Maximum Operating Temperature 105°C | ||
Lifetime 1000 h, 1000 h | ||
Standards/Approvals 2011/65/EU, EU2015/863, RoHS | ||
Lead Pitch 10mm | ||
Tolerance ±20 % | ||
Series VZ | ||
Automotive Standard No | ||
Leakage Current 10200μA | ||
Dissipation Factor 0.12% | ||
- COO (Country of Origin):
- JP
Nichicon VZ Series, 24μF to 22000
Nichicon VZ series aluminium electrolytic capacitors are miniature sized, low impedance, high reliability capacitors for switching power supplies. The VZ series is highly reliable with a lifetime rating of up to 1000 hours.
High reliability
High temperature range
High ripple current
