Wurth Elektronik 100 nF Capacitor 50 V, 50V dc, Surface Mount - 865250640001 Solder
- RS Stock No.:
- 839-5117
- Mfr. Part No.:
- 865250640001
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 pack of 25 units)*
£5.45
(exc. VAT)
£6.55
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 100 | £0.218 | £5.45 |
| 125 - 225 | £0.161 | £4.03 |
| 250 - 475 | £0.142 | £3.55 |
| 500 + | £0.123 | £3.08 |
*price indicative
- RS Stock No.:
- 839-5117
- Mfr. Part No.:
- 865250640001
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Capacitor | |
| Capacitance | 100nF | |
| Voltage | 50, 50V | |
| Mount Type | Surface Mount | |
| Construction | Cylindrical Can | |
| Packaging | Tape & Reel | |
| Height | 3.85mm | |
| Polarity | Polar | |
| Length | 5.5mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 5.5mm | |
| Pin Count | 2 | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 85°C | |
| Lead Pitch | 1mm | |
| Lifetime | 2000 h, 2000 h | |
| Standards/Approvals | No | |
| Series | WCAP-ASNP | |
| Automotive Standard | No | |
| Tolerance | ±20 % | |
| Leakage Current | 10μA | |
| Dissipation Factor | 15, 15% | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Capacitor | ||
Capacitance 100nF | ||
Voltage 50, 50V | ||
Mount Type Surface Mount | ||
Construction Cylindrical Can | ||
Packaging Tape & Reel | ||
Height 3.85mm | ||
Polarity Polar | ||
Length 5.5mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 5.5mm | ||
Pin Count 2 | ||
Termination Type Solder | ||
Maximum Operating Temperature 85°C | ||
Lead Pitch 1mm | ||
Lifetime 2000 h, 2000 h | ||
Standards/Approvals No | ||
Series WCAP-ASNP | ||
Automotive Standard No | ||
Tolerance ±20 % | ||
Leakage Current 10μA | ||
Dissipation Factor 15, 15% | ||

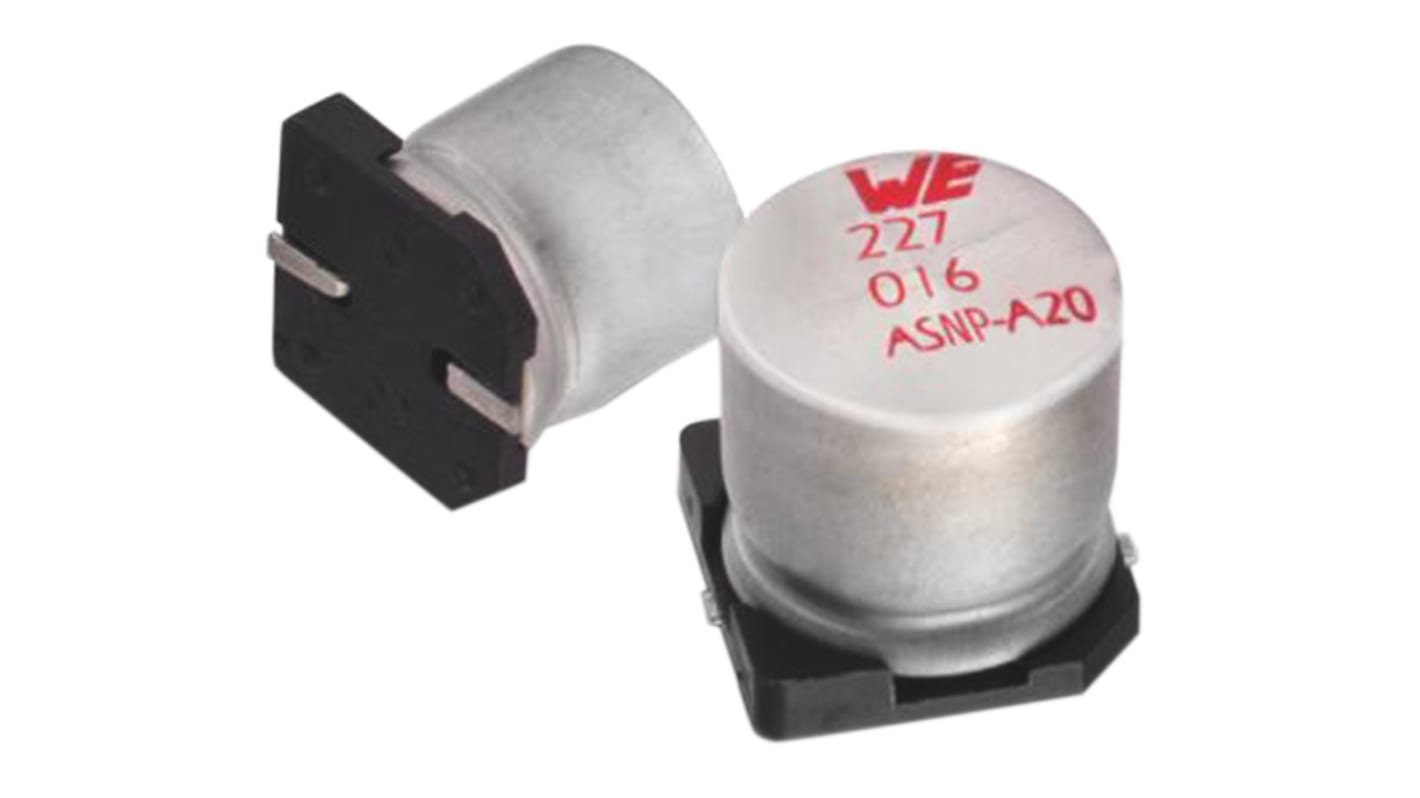

Wurth Elektronik SMD Non-Polar WCAP-ASNP Series Capacitors
WCAP-ASNP are non-polarised Aluminium Electrolytic Capacitor Series
Features and Benefits
• Load life: 2000 h @ +85°C
• Operating temperature: -40°C to +85°C
• Reflow soldering recommended
