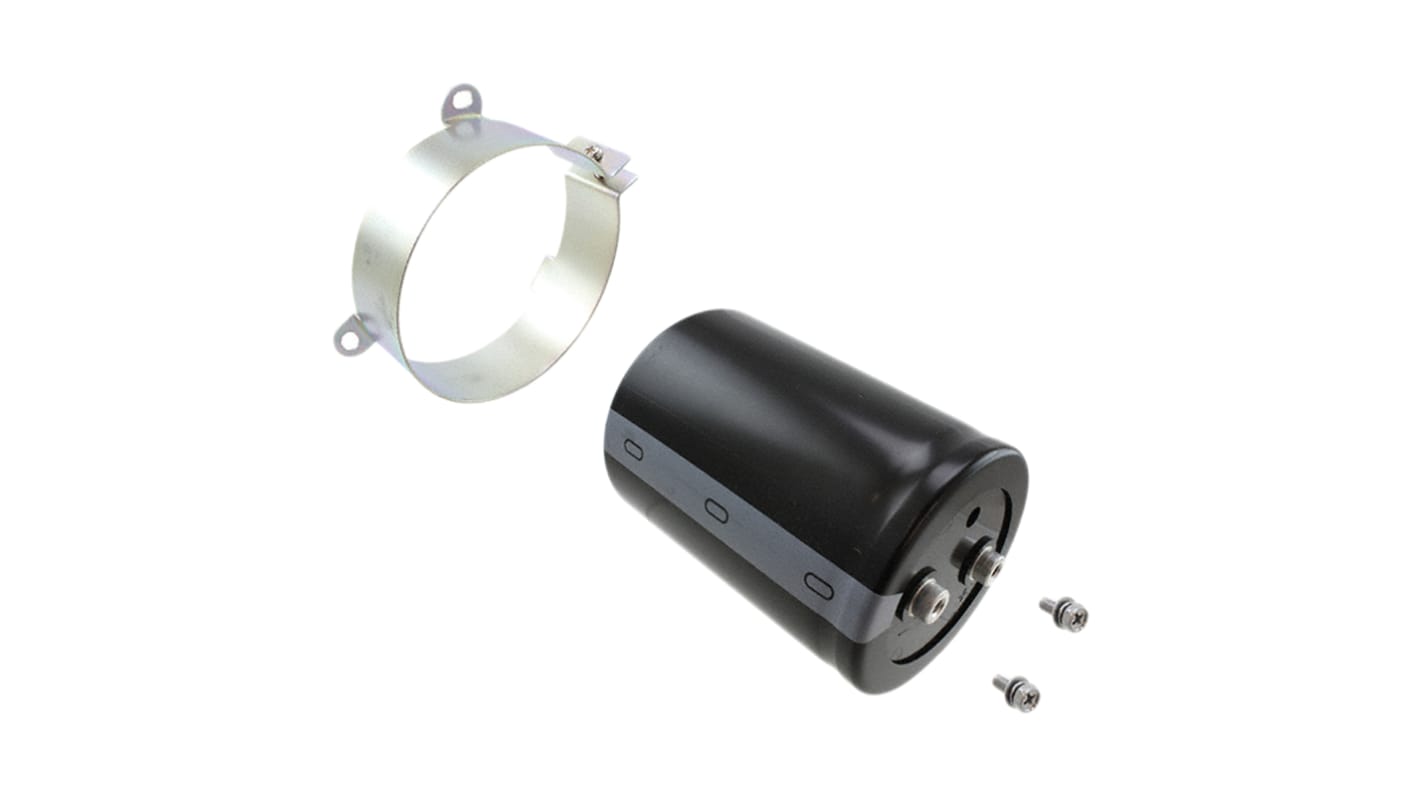

Nichicon 6800 μF Capacitor 400V dc, Screw
- RS Stock No.:
- 714-8663
- Mfr. Part No.:
- LNY2G682MSEG
- Brand:
- Nichicon
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£55.30
(exc. VAT)
£66.36
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 13 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £55.30 |
| 25 + | £51.60 |
*price indicative
- RS Stock No.:
- 714-8663
- Mfr. Part No.:
- LNY2G682MSEG
- Brand:
- Nichicon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nichicon | |
| Capacitance | 6800μF | |
| Product Type | Capacitor | |
| Voltage | 400V dc | |
| Construction | Cylindrical Can | |
| Mount Type | Screw | |
| Height | 165mm | |
| Length | 165mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 63.5mm | |
| Pin Count | 2 | |
| Termination Type | Screw | |
| Capacitor Ripple Current | 19.1A | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | EU, RoHS | |
| Lifetime | 2000 h | |
| Series | LNY | |
| Automotive Standard | No | |
| Leakage Current | 5mA | |
| Tolerance | ±20 % | |
| Select all | ||
|---|---|---|
Brand Nichicon | ||
Capacitance 6800μF | ||
Product Type Capacitor | ||
Voltage 400V dc | ||
Construction Cylindrical Can | ||
Mount Type Screw | ||
Height 165mm | ||
Length 165mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 63.5mm | ||
Pin Count 2 | ||
Termination Type Screw | ||
Capacitor Ripple Current 19.1A | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals EU, RoHS | ||
Lifetime 2000 h | ||
Series LNY | ||
Automotive Standard No | ||
Leakage Current 5mA | ||
Tolerance ±20 % | ||
- COO (Country of Origin):
- JP
Nichicon NY Series
Nichicon NY Series aluminium electrolytic capacitors are screw terminal clamp fixing capacitors that offer a wide operating temperature range, rated capacitance range of 620 to 22000μF, high ripple current, and a load life of 2000 hours. These NY electrolytic capacitors are suited for use in industrial power supplies for inverter circuitry.
Load life of 2000 hours
High ripple current
Flame retardant
Clamp-fixing +85°C
Ideal for computer power supply applications or other applications that require long operational life
