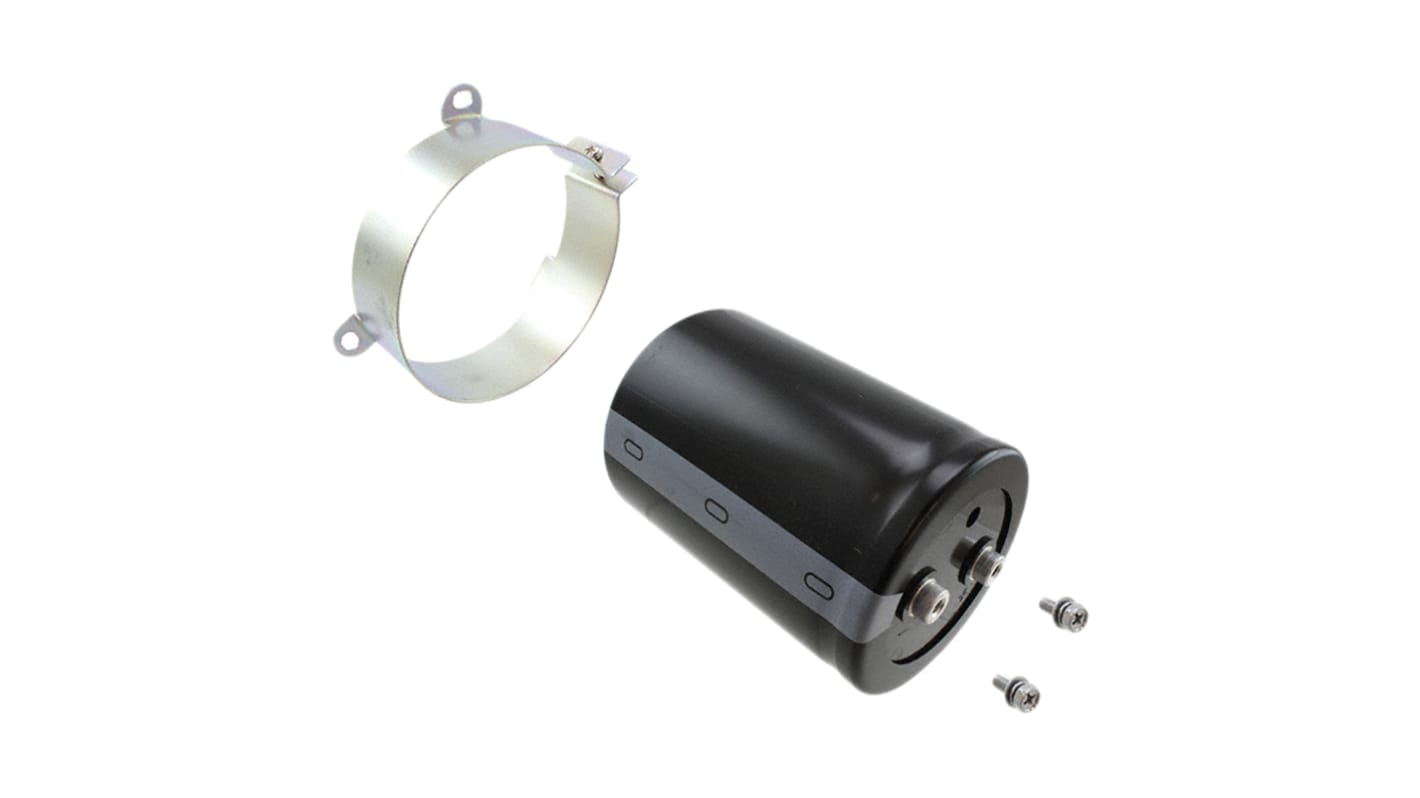

Nichicon 15000μF Aluminium Electrolytic Capacitor 400V dc, Screw Terminal - LNY2G153MSEJ
- RS Stock No.:
- 714-8673
- Mfr. Part No.:
- LNY2G153MSEJ
- Brand:
- Nichicon
Bulk discount available
Subtotal (1 unit)*
£177.47
(exc. VAT)
£212.96
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £177.47 |
5 - 14 | £153.33 |
15 + | £145.70 |
*price indicative
- RS Stock No.:
- 714-8673
- Mfr. Part No.:
- LNY2G153MSEJ
- Brand:
- Nichicon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Nichicon | |
Capacitance | 15000µF | |
Voltage | 400V dc | |
Mounting Type | Screw Terminal | |
Technology | Aluminium Electrolytic | |
Dimensions | 90 (Dia.) x 190mm | |
Height | 190mm | |
Minimum Operating Temperature | -40°C | |
Diameter | 90mm | |
Maximum Operating Temperature | +85°C | |
Lifetime | 2000h | |
Ripple Current | 28.3A | |
Leakage Current | 5000 μA | |
Tolerance | ±20% | |
Series | LNY | |
Select all | ||
---|---|---|
Brand Nichicon | ||
Capacitance 15000µF | ||
Voltage 400V dc | ||
Mounting Type Screw Terminal | ||
Technology Aluminium Electrolytic | ||
Dimensions 90 (Dia.) x 190mm | ||
Height 190mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 90mm | ||
Maximum Operating Temperature +85°C | ||
Lifetime 2000h | ||
Ripple Current 28.3A | ||
Leakage Current 5000 μA | ||
Tolerance ±20% | ||
Series LNY | ||
Nichicon NY Series
Nichicon NY Series aluminium electrolytic capacitors are screw terminal clamp fixing capacitors that offer a wide operating temperature range, rated capacitance range of 620 to 22000μF, high ripple current, and a load life of 2000 hours. These NY electrolytic capacitors are suited for use in industrial power supplies for inverter circuitry.
Load life of 2000 hours
High ripple current
Flame retardant
High ripple current
Flame retardant
Clamp-fixing +85°C
Ideal for computer power supply applications or other applications that require long operational life
