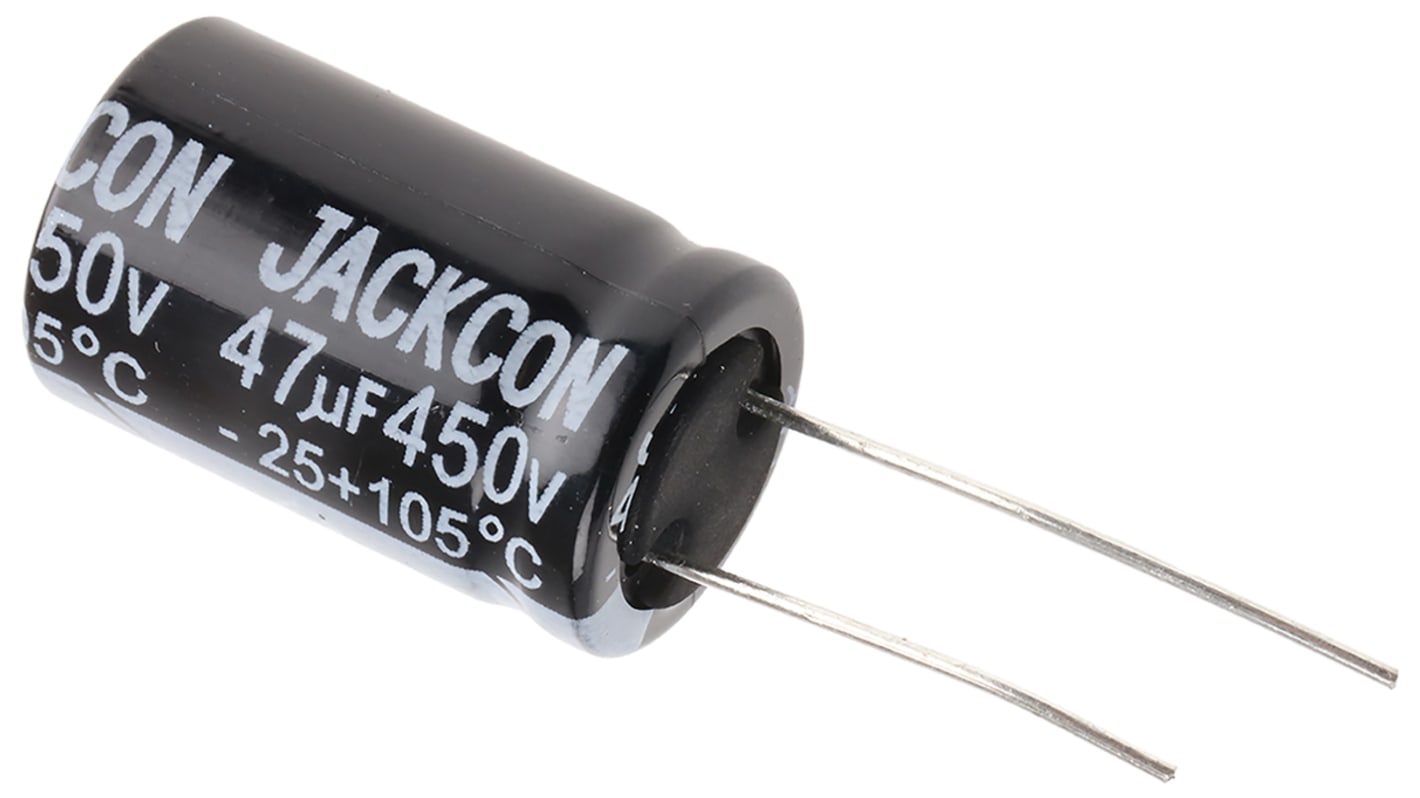

RS PRO 47μF Aluminium Electrolytic Capacitor 450V dc, Radial, Through Hole
- RS Stock No.:
- 711-2141
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 pack of 2 units)*
£2.85
(exc. VAT)
£3.42
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 48 unit(s) shipping from 06 October 2025
- Plus 76 unit(s) shipping from 06 October 2025
- Plus 390 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 18 | £1.425 | £2.85 |
| 20 - 48 | £1.335 | £2.67 |
| 50 - 98 | £1.225 | £2.45 |
| 100 - 198 | £1.17 | £2.34 |
| 200 + | £1.055 | £2.11 |
*price indicative
- RS Stock No.:
- 711-2141
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Capacitance | 47µF | |
| Voltage | 450V dc | |
| Mounting Type | Radial, Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 16 (Dia.) x 26mm | |
| Height | 26mm | |
| Length | 26mm | |
| Minimum Operating Temperature | -25°C | |
| Diameter | 16mm | |
| Maximum Operating Temperature | 105°C | |
| Lifetime | 2000h | |
| Lead Pitch | 7.5mm | |
| Series | RS | |
| Tolerance | ±20% | |
| Leakage Current | <=0.03 CV or 3 μA @ 1 min | |
| Polarised | Polar | |
| Ripple Current | 250mA | |
| Dissipation Factor | 20% | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Capacitance 47µF | ||
Voltage 450V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 16 (Dia.) x 26mm | ||
Height 26mm | ||
Length 26mm | ||
Minimum Operating Temperature -25°C | ||
Diameter 16mm | ||
Maximum Operating Temperature 105°C | ||
Lifetime 2000h | ||
Lead Pitch 7.5mm | ||
Series RS | ||
Tolerance ±20% | ||
Leakage Current <=0.03 CV or 3 μA @ 1 min | ||
Polarised Polar | ||
Ripple Current 250mA | ||
Dissipation Factor 20% | ||
- COO (Country of Origin):
- TW
General Purpose Radial 400 to 450V
Safety vent construction design
Applications include communication equipment and switching power supply
Applications include communication equipment and switching power supply
