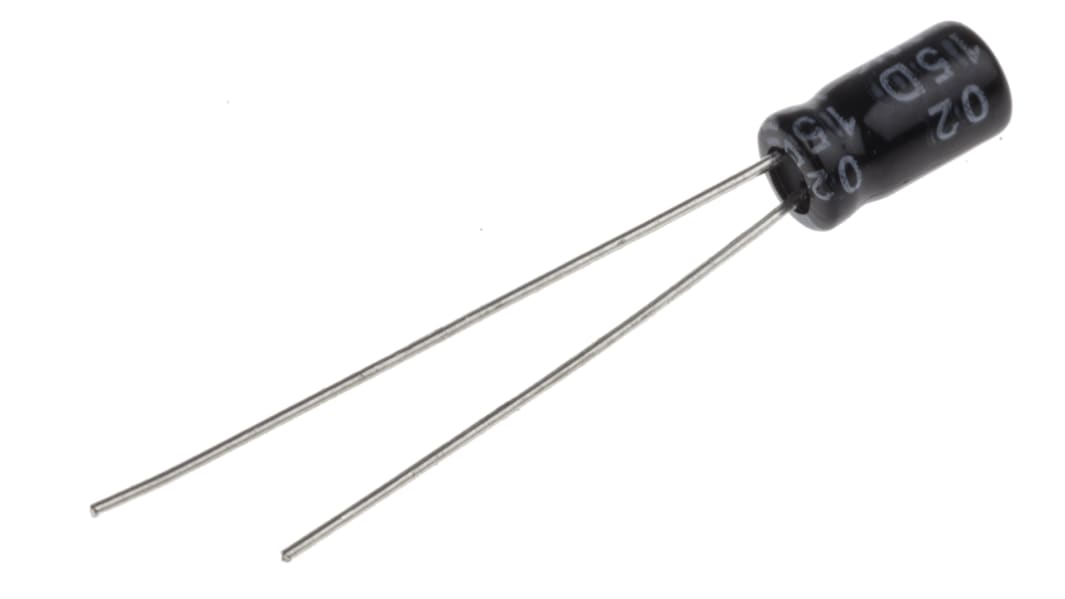

RS PRO 220μF Aluminium Electrolytic Capacitor 16V dc, Radial, Through Hole
- RS Stock No.:
- 706-0591
- Brand:
- RS PRO
Save 26% when you buy 1000 units
Subtotal (1 pack of 25 units)*
£6.40
(exc. VAT)
£7.675
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- 325 left, ready to ship
- Final 625 unit(s) shipping from 09 October 2025
Units | Per unit | Per Pack* |
---|---|---|
25 - 75 | £0.256 | £6.40 |
100 - 225 | £0.238 | £5.95 |
250 - 475 | £0.219 | £5.48 |
500 - 975 | £0.21 | £5.25 |
1000 + | £0.189 | £4.73 |
*price indicative
- RS Stock No.:
- 706-0591
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Capacitance | 220µF | |
Voltage | 16V dc | |
Mounting Type | Radial, Through Hole | |
Technology | Aluminium Electrolytic | |
Dimensions | 8 (Dia.) x 5mm | |
Height | 5mm | |
Length | 5mm | |
Minimum Operating Temperature | -40°C | |
Diameter | 8mm | |
Maximum Operating Temperature | 105°C | |
Lead Pitch | 3.5mm | |
Lifetime | 1000h | |
Tolerance | ±20% | |
Polarised | Polar | |
Ripple Current | 92mA | |
Leakage Current | <=0.01 CV or 3 μA @ 2 min | |
Series | RS | |
Dissipation Factor | 20% | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Capacitance 220µF | ||
Voltage 16V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 8 (Dia.) x 5mm | ||
Height 5mm | ||
Length 5mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 8mm | ||
Maximum Operating Temperature 105°C | ||
Lead Pitch 3.5mm | ||
Lifetime 1000h | ||
Tolerance ±20% | ||
Polarised Polar | ||
Ripple Current 92mA | ||
Leakage Current <=0.01 CV or 3 μA @ 2 min | ||
Series RS | ||
Dissipation Factor 20% | ||
- COO (Country of Origin):
- TW
