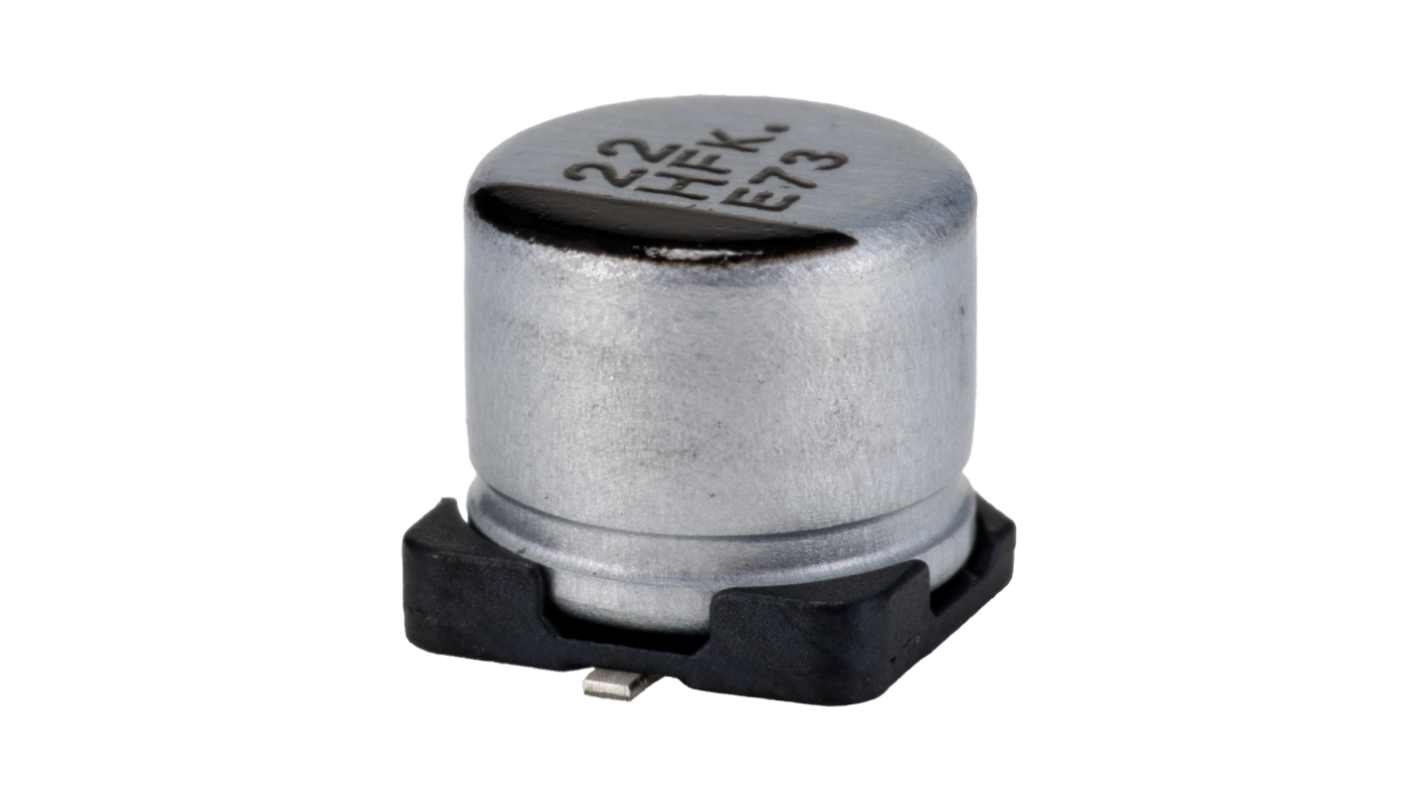

Panasonic 22μF Aluminium Electrolytic Aluminium Electrolytic Capacitor 50V dc, Surface Mount - EEEFK1H220P
- RS Stock No.:
- 537-0562
- Mfr. Part No.:
- EEEFK1H220P
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 pack of 5 units)*
£1.92
(exc. VAT)
£2.305
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 915 unit(s) ready to ship
- Plus 645 unit(s) ready to ship from another location
- Plus 32,700 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £0.384 | £1.92 |
| 50 - 95 | £0.36 | £1.80 |
| 100 - 245 | £0.338 | £1.69 |
| 250 - 495 | £0.314 | £1.57 |
| 500 + | £0.286 | £1.43 |
*price indicative
- RS Stock No.:
- 537-0562
- Mfr. Part No.:
- EEEFK1H220P
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 22µF | |
| Voltage | 50V dc | |
| Mounting Type | Surface Mount | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 6.3 (Dia.) x 5.8mm | |
| Height | 5.8mm | |
| Length | 5.8mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 6.3mm | |
| Maximum Operating Temperature | +105°C | |
| Lead Pitch | 1.8mm | |
| Lifetime | 2000h | |
| Equivalent Series Resistance | 880mΩ | |
| Tolerance | ±20% | |
| Automotive Standard | AEC-Q200 | |
| Leakage Current | 11 μA | |
| Ripple Current | 165mA | |
| Series | FK | |
| Polarised | Polar | |
| Dissipation Factor | 200% | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 22µF | ||
Voltage 50V dc | ||
Mounting Type Surface Mount | ||
Technology Aluminium Electrolytic | ||
Dimensions 6.3 (Dia.) x 5.8mm | ||
Height 5.8mm | ||
Length 5.8mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 6.3mm | ||
Maximum Operating Temperature +105°C | ||
Lead Pitch 1.8mm | ||
Lifetime 2000h | ||
Equivalent Series Resistance 880mΩ | ||
Tolerance ±20% | ||
Automotive Standard AEC-Q200 | ||
Leakage Current 11 μA | ||
Ripple Current 165mA | ||
Series FK | ||
Polarised Polar | ||
Dissipation Factor 200% | ||
FK Series reels
Offered in a full reel, the FK series of aluminium electrolytic capacitors from Panasonic are a miniaturised version of the FC series, featuring impedance values 40-60% less than the FC series. These electrolytic capacitors have a long life of up to 5000 hours and are AEC-Q200 qualified, making them suitable for automotive applications. Part numbers with an A* suffix are able to withstand high reflow temperatures for extended periods.
