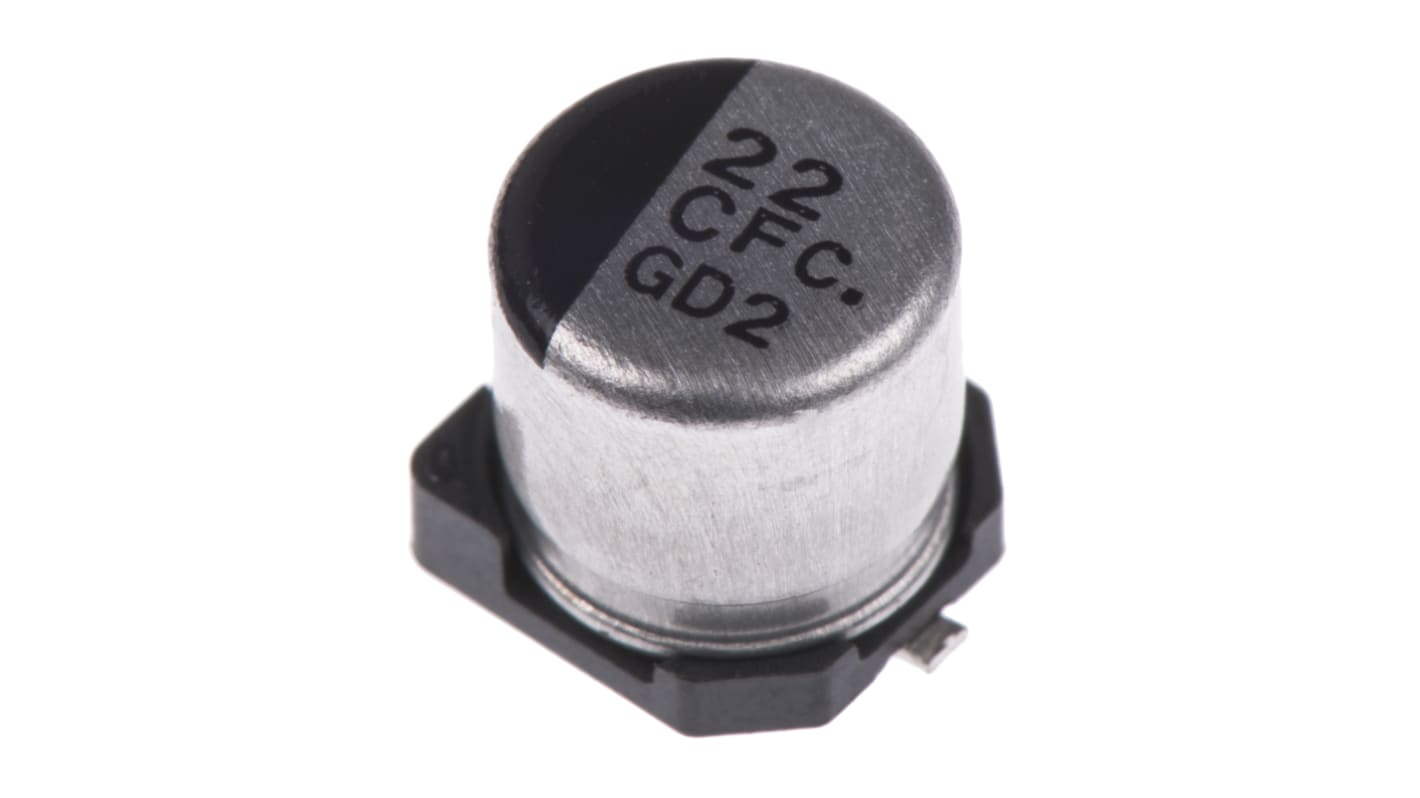

Panasonic 22 μF Capacitor 16V dc, Surface Mount Solder - EEEFC1C220R C
- RS Stock No.:
- 537-0152
- Mfr. Part No.:
- EEEFC1C220R
- Brand:
- Panasonic
Subtotal (1 pack of 5 units)*
£1.62
(exc. VAT)
£1.945
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 195 unit(s) shipping from 13 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £0.324 | £1.62 |
*price indicative
- RS Stock No.:
- 537-0152
- Mfr. Part No.:
- EEEFC1C220R
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Product Type | Capacitor | |
| Capacitance | 22μF | |
| Voltage | 16V dc | |
| Mount Type | Surface Mount | |
| Packaging | Tape | |
| Height | 5.4mm | |
| Polarity | Polar | |
| Length | 5.4mm | |
| Package/Case | C | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 5mm | |
| Pin Count | 2 | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | RoHS | |
| Lifetime | 1000 h | |
| Tolerance ± | 20% | |
| Automotive Standard | AEC-Q200 | |
| Leakage Current | 3μA | |
| Ripple Current | 95mA | |
| Series | FC SMD | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Product Type Capacitor | ||
Capacitance 22μF | ||
Voltage 16V dc | ||
Mount Type Surface Mount | ||
Packaging Tape | ||
Height 5.4mm | ||
Polarity Polar | ||
Length 5.4mm | ||
Package/Case C | ||
Minimum Operating Temperature -40°C | ||
Diameter 5mm | ||
Pin Count 2 | ||
Termination Type Solder | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals RoHS | ||
Lifetime 1000 h | ||
Tolerance ± 20% | ||
Automotive Standard AEC-Q200 | ||
Leakage Current 3μA | ||
Ripple Current 95mA | ||
Series FC SMD | ||
FC Series (Low ESR)
Panasonic FC Series Type V electrolytic capacitors feature low impedance and 1000 hours endurance at +105°C. Vibration proof options are available.
AEC-Q200 qualified (some deviations apply)
Half the impedance of the HA series from Panasonic
High reliability
Long life
Low impedance
High ripple current
Pb-Free reflow soldering compliant
Applications
These Panasonic electrolytic capacitors are recommended for use in industrial infrastructure in motor drivers, inverters, measuring instruments, power supplies, HEMS, BEMS and FEMS. Other suitable applications include ICT applications such as PCs, base stations, data centres, non-contact charge. FC Series Type V aluminium capacitors can be utilised in home appliances including air conditioners, white goods and home information appliances. Other uses include OA equipment, lighting, medical equipment, electric tools and power management, safety, infotainment and comfort accessories in automotive applications.
