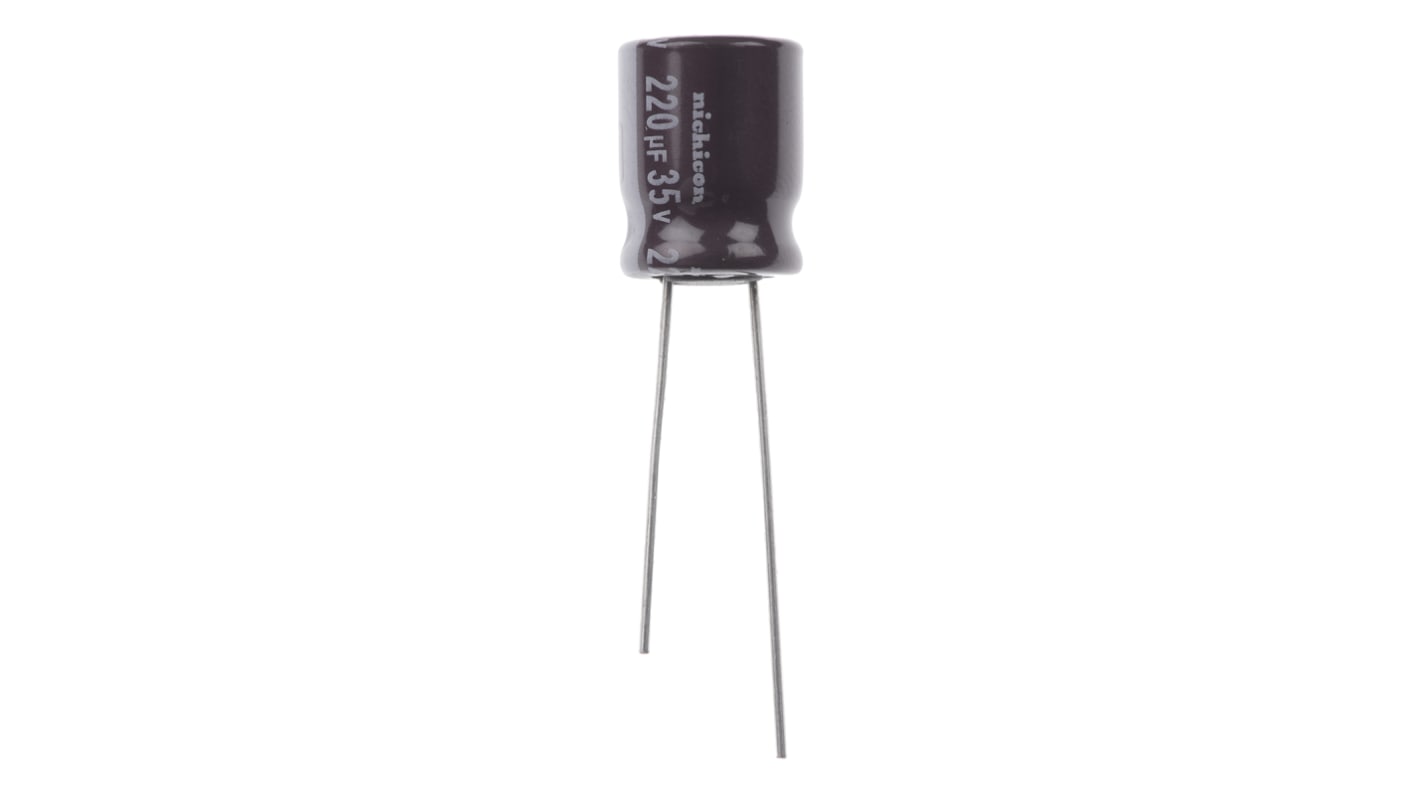

Nichicon 220μF Aluminium Electrolytic Capacitor 35V dc, Radial, Through Hole - UPS1V221MPD
- RS Stock No.:
- 519-4166
- Mfr. Part No.:
- UPS1V221MPD
- Brand:
- Nichicon
Bulk discount available
Subtotal (1 pack of 5 units)*
£1.53
(exc. VAT)
£1.835
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- 95 left, ready to ship
- Plus 135 left, ready to ship from another location
- Final 2,505 unit(s) shipping from 30 October 2025
Units | Per unit | Per Pack* |
---|---|---|
5 - 45 | £0.306 | £1.53 |
50 - 95 | £0.288 | £1.44 |
100 - 245 | £0.268 | £1.34 |
250 - 495 | £0.25 | £1.25 |
500 + | £0.228 | £1.14 |
*price indicative
- RS Stock No.:
- 519-4166
- Mfr. Part No.:
- UPS1V221MPD
- Brand:
- Nichicon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Nichicon | |
Capacitance | 220µF | |
Voltage | 35V dc | |
Mounting Type | Radial, Through Hole | |
Technology | Aluminium Electrolytic | |
Dimensions | 10 (Dia.) x 12.5mm | |
Height | 12.5mm | |
Minimum Operating Temperature | -55°C | |
Diameter | 10mm | |
Maximum Operating Temperature | +105°C | |
Lifetime | 2000h | |
Lead Pitch | 5mm | |
Series | PS | |
Ripple Current | 600mA | |
Leakage Current | 4 μA | |
Tolerance | ±20% | |
Select all | ||
---|---|---|
Brand Nichicon | ||
Capacitance 220µF | ||
Voltage 35V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 10 (Dia.) x 12.5mm | ||
Height 12.5mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 10mm | ||
Maximum Operating Temperature +105°C | ||
Lifetime 2000h | ||
Lead Pitch 5mm | ||
Series PS | ||
Ripple Current 600mA | ||
Leakage Current 4 μA | ||
Tolerance ±20% | ||
Nichicon PS Series Capacitors
Nichicon PS Series Aluminium Electrolytic Capacitors are high reliability polymer capacitors which are rated up to 3000 hours. The PS series capacitors offer a high temperature range, high voltage, low impedance and high ripple current.
Features & Benefits:
High reliability
High ripple current
Long life up to 3000 hours
Lead free reflow soldering
Low ESR
High ripple current
Long life up to 3000 hours
Lead free reflow soldering
Low ESR
Wide temperature range
Miniature sized
Miniature sized
