Vishay 220μF Aluminium Electrolytic Capacitor 250V dc, Snap-In - MAL215753221E3
- RS Stock No.:
- 321-0418
- Mfr. Part No.:
- MAL215753221E3
- Brand:
- Vishay

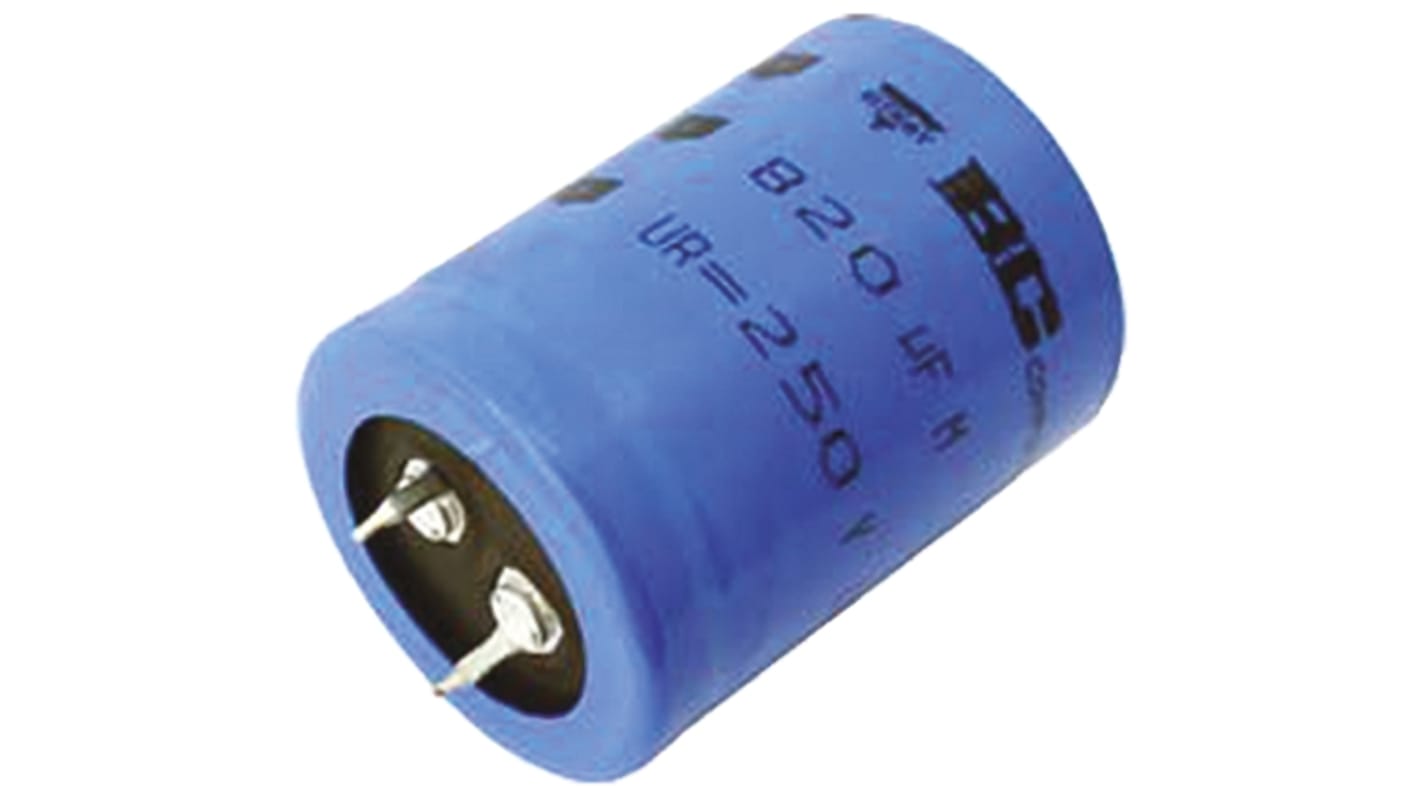

Image representative of range
Bulk discount available
Subtotal (1 unit)*
£5.43
(exc. VAT)
£6.52
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 155 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £5.43 |
| 10 - 24 | £4.61 |
| 25 - 49 | £4.35 |
| 50 - 99 | £4.07 |
| 100 + | £3.81 |
*price indicative
- RS Stock No.:
- 321-0418
- Mfr. Part No.:
- MAL215753221E3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Capacitance | 220µF | |
| Voltage | 250V dc | |
| Mounting Type | Snap-In | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 22 (Dia.) x 30mm | |
| Height | 30mm | |
| Minimum Operating Temperature | -25°C | |
| Diameter | 22mm | |
| Maximum Operating Temperature | +85°C | |
| Lead Pitch | 10mm | |
| Lifetime | 5000h | |
| Equivalent Series Resistance | 1.08Ω | |
| Ripple Current | 1.23A | |
| Leakage Current | 550 μA | |
| Series | 157 PUM-SI | |
| Tolerance | ±20% | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Capacitance 220µF | ||
Voltage 250V dc | ||
Mounting Type Snap-In | ||
Technology Aluminium Electrolytic | ||
Dimensions 22 (Dia.) x 30mm | ||
Height 30mm | ||
Minimum Operating Temperature -25°C | ||
Diameter 22mm | ||
Maximum Operating Temperature +85°C | ||
Lead Pitch 10mm | ||
Lifetime 5000h | ||
Equivalent Series Resistance 1.08Ω | ||
Ripple Current 1.23A | ||
Leakage Current 550 μA | ||
Series 157 PUM-SI | ||
Tolerance ±20% | ||
157 Series
Polarized Aluminium Electrolytic Capacitors, Non-Solid Electrolyte
Miniature snap-in high voltage capacitors
Up to 500 V
Useful life: 5000 h at 85 °C
Applications: General purpose, Industrial and Audio/Video Systems; Smoothing and Filtering; Standard and Switched Mode Power Supplies; Energy Storage in Pulse Systems
Up to 500 V
Useful life: 5000 h at 85 °C
Applications: General purpose, Industrial and Audio/Video Systems; Smoothing and Filtering; Standard and Switched Mode Power Supplies; Energy Storage in Pulse Systems
