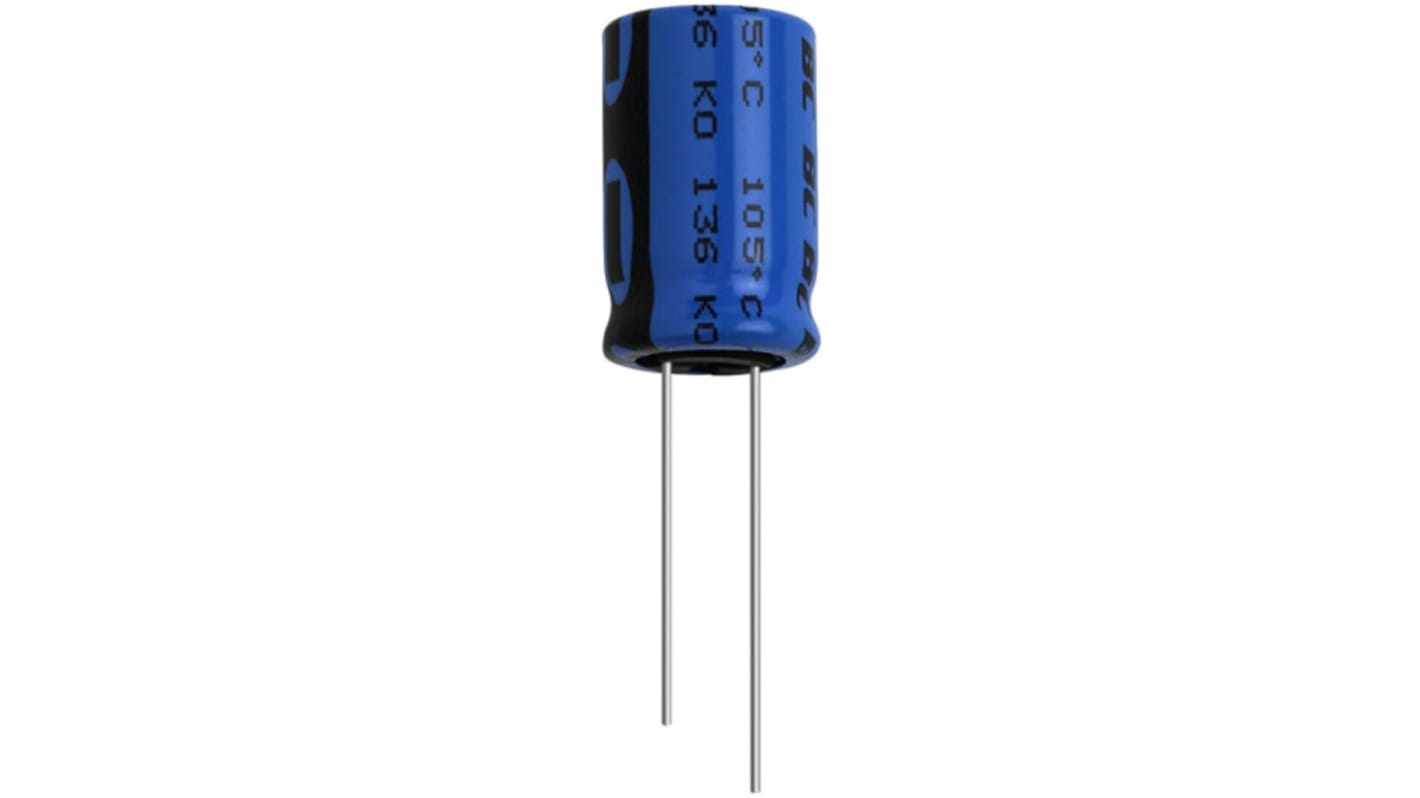

Vishay 1000 μF Capacitor 35V dc, Through Hole - MAL213660102E3 Radial Lead
- RS Stock No.:
- 280-6733
- Mfr. Part No.:
- MAL213660102E3
- Brand:
- Vishay
Bulk discount available
Subtotal (1 bag of 10 units)*
£12.72
(exc. VAT)
£15.26
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 480 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 10 - 10 | £1.272 | £12.72 |
| 20 - 40 | £1.202 | £12.02 |
| 50 - 90 | £1.06 | £10.60 |
| 100 + | £0.918 | £9.18 |
*price indicative
- RS Stock No.:
- 280-6733
- Mfr. Part No.:
- MAL213660102E3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Capacitance | 1000μF | |
| Product Type | Capacitor | |
| Voltage | 35V dc | |
| Mount Type | Through Hole | |
| Polarity | Polar | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 16mm | |
| Capacitor Ripple Current | 1.7A | |
| Termination Type | Radial Lead | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 105°C | |
| Lifetime | 10000 h | |
| Lead Pitch | 7.5mm | |
| Standards/Approvals | EN 130300, IEC 60384-4 | |
| Series | 136 RVI | |
| Tolerance | ±20 % | |
| Automotive Standard | No | |
| Leakage Current | 350μA | |
| Equivalent Series Resistance ESR | 0.31Ω | |
| Dissipation Factor | 0.12% | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Capacitance 1000μF | ||
Product Type Capacitor | ||
Voltage 35V dc | ||
Mount Type Through Hole | ||
Polarity Polar | ||
Minimum Operating Temperature -55°C | ||
Diameter 16mm | ||
Capacitor Ripple Current 1.7A | ||
Termination Type Radial Lead | ||
Pin Count 2 | ||
Maximum Operating Temperature 105°C | ||
Lifetime 10000 h | ||
Lead Pitch 7.5mm | ||
Standards/Approvals EN 130300, IEC 60384-4 | ||
Series 136 RVI | ||
Tolerance ±20 % | ||
Automotive Standard No | ||
Leakage Current 350μA | ||
Equivalent Series Resistance ESR 0.31Ω | ||
Dissipation Factor 0.12% | ||
- COO (Country of Origin):
- AT
The Vishay aluminium electrolytic capacitors has radial very low impedance. That comes with radial leads, cylindrical aluminium case with pressure relief and insulated with a blue sleeve. Used for general industrial, EDP, audio video and telecommunications applications.
Charge and discharge proof
Very low impedance and low ESR
