Vishay 2.2 μF Capacitor 100V dc, Through Hole - MAL213839228E3 Axial
- RS Stock No.:
- 280-3534
- Mfr. Part No.:
- MAL213839228E3
- Brand:
- Vishay
Subtotal (1 box of 1000 units)*
£1,064.00
(exc. VAT)
£1,277.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Box* |
|---|---|---|
| 1000 + | £1.064 | £1,064.00 |
*price indicative
- RS Stock No.:
- 280-3534
- Mfr. Part No.:
- MAL213839228E3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Capacitor | |
| Capacitance | 2.2μF | |
| Voltage | 100V dc | |
| Construction | Non-Solid Electrolyte | |
| Mount Type | Through Hole | |
| Polarity | Polar | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 6.3mm | |
| Pin Count | 2 | |
| Termination Type | Axial | |
| Capacitor Ripple Current | 24mA | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | EN 130300, IEC 60062, IEC 60068, IEC 60384-4 | |
| Lifetime | 10000 h | |
| Lead Pitch | 17.5mm | |
| Automotive Standard | No | |
| Series | 138 AML | |
| Equivalent Series Resistance ESR | 65Ω | |
| Leakage Current | 4.4μA | |
| Tolerance | ±20 % | |
| Dissipation Factor | 0.09% | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Capacitor | ||
Capacitance 2.2μF | ||
Voltage 100V dc | ||
Construction Non-Solid Electrolyte | ||
Mount Type Through Hole | ||
Polarity Polar | ||
Minimum Operating Temperature -40°C | ||
Diameter 6.3mm | ||
Pin Count 2 | ||
Termination Type Axial | ||
Capacitor Ripple Current 24mA | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals EN 130300, IEC 60062, IEC 60068, IEC 60384-4 | ||
Lifetime 10000 h | ||
Lead Pitch 17.5mm | ||
Automotive Standard No | ||
Series 138 AML | ||
Equivalent Series Resistance ESR 65Ω | ||
Leakage Current 4.4μA | ||
Tolerance ±20 % | ||
Dissipation Factor 0.09% | ||
- COO (Country of Origin):
- AT

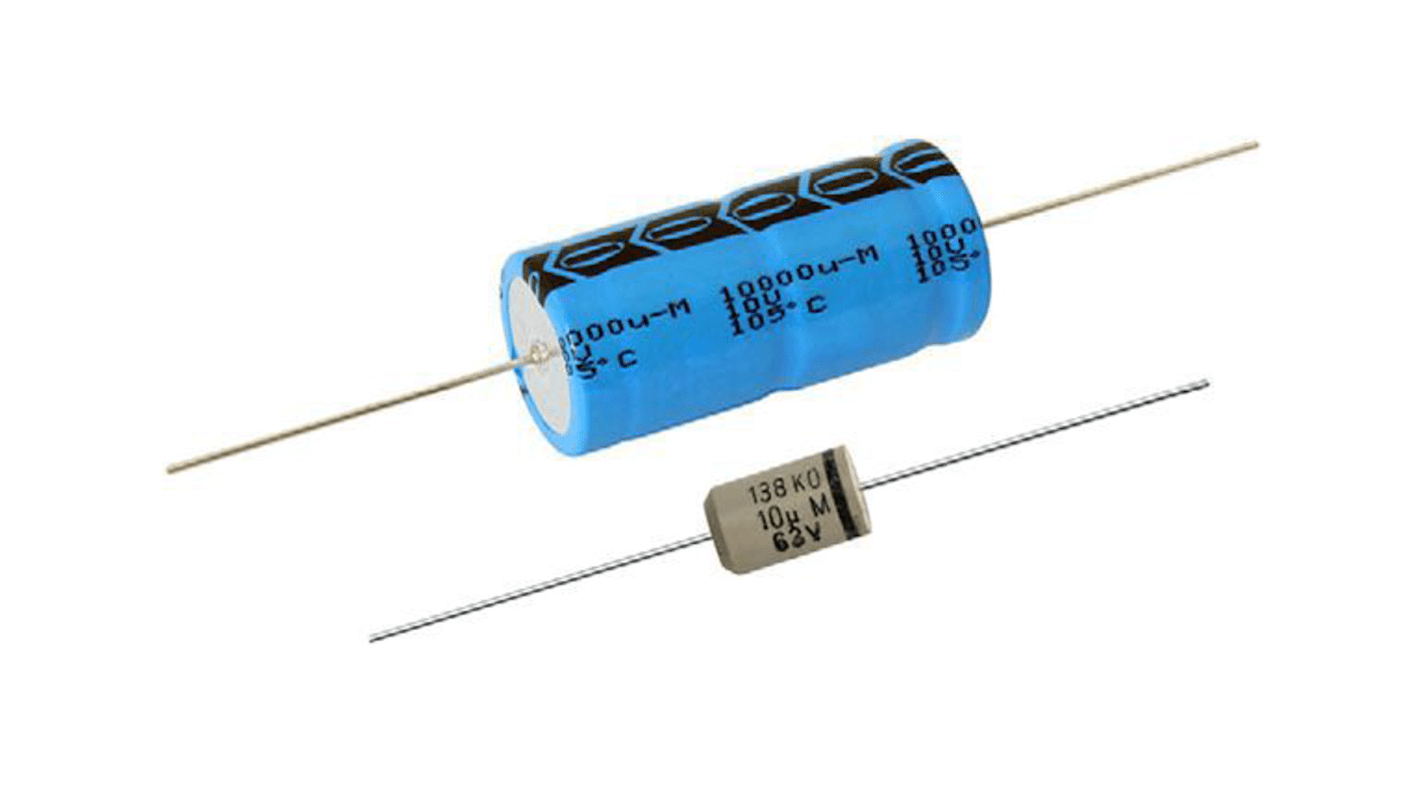

The Vishay Aluminium electrolytic capacitors are built in cylindrical aluminium cases with axial leads. This aluminium electrolytic capacitor has a long useful life and offers a high CV product per unit volume.
Lead free
RoHS compliant
Insulated with blue sleeve
Charge and discharge proof
High ripple current capability
