Vishay 0.22 F Capacitor 25 V - MAL210126224E3
- RS Stock No.:
- 280-3355
- Mfr. Part No.:
- MAL210126224E3
- Brand:
- Vishay
Subtotal (1 box of 12 units)*
£910.992
(exc. VAT)
£1,093.188
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 48 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 12 + | £75.916 | £910.99 |
*price indicative
- RS Stock No.:
- 280-3355
- Mfr. Part No.:
- MAL210126224E3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Capacitance | 0.22F | |
| Product Type | Capacitor | |
| Voltage | 25 V | |
| Polarity | Polar | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 76 mm | |
| Capacitor Ripple Current | 22.5 A | |
| Termination Type | Screw | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | IEC 60384-4 / EN 130300, CECC 30301, IEC 60068 | |
| Lifetime | 600000 h (at 40 °C h), 10000 to 15000 h (at +85 °C) | |
| Equivalent Series Resistance ESR | 6mΩ | |
| Leakage Current | 11mA | |
| Automotive Standard | No | |
| Tolerance | ±20 % | |
| Series | 101/102 PHR-ST | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Capacitance 0.22F | ||
Product Type Capacitor | ||
Voltage 25 V | ||
Polarity Polar | ||
Minimum Operating Temperature -40°C | ||
Diameter 76 mm | ||
Capacitor Ripple Current 22.5 A | ||
Termination Type Screw | ||
Pin Count 2 | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals IEC 60384-4 / EN 130300, CECC 30301, IEC 60068 | ||
Lifetime 600000 h (at 40 °C h), 10000 to 15000 h (at +85 °C) | ||
Equivalent Series Resistance ESR 6mΩ | ||
Leakage Current 11mA | ||
Automotive Standard No | ||
Tolerance ±20 % | ||
Series 101/102 PHR-ST | ||

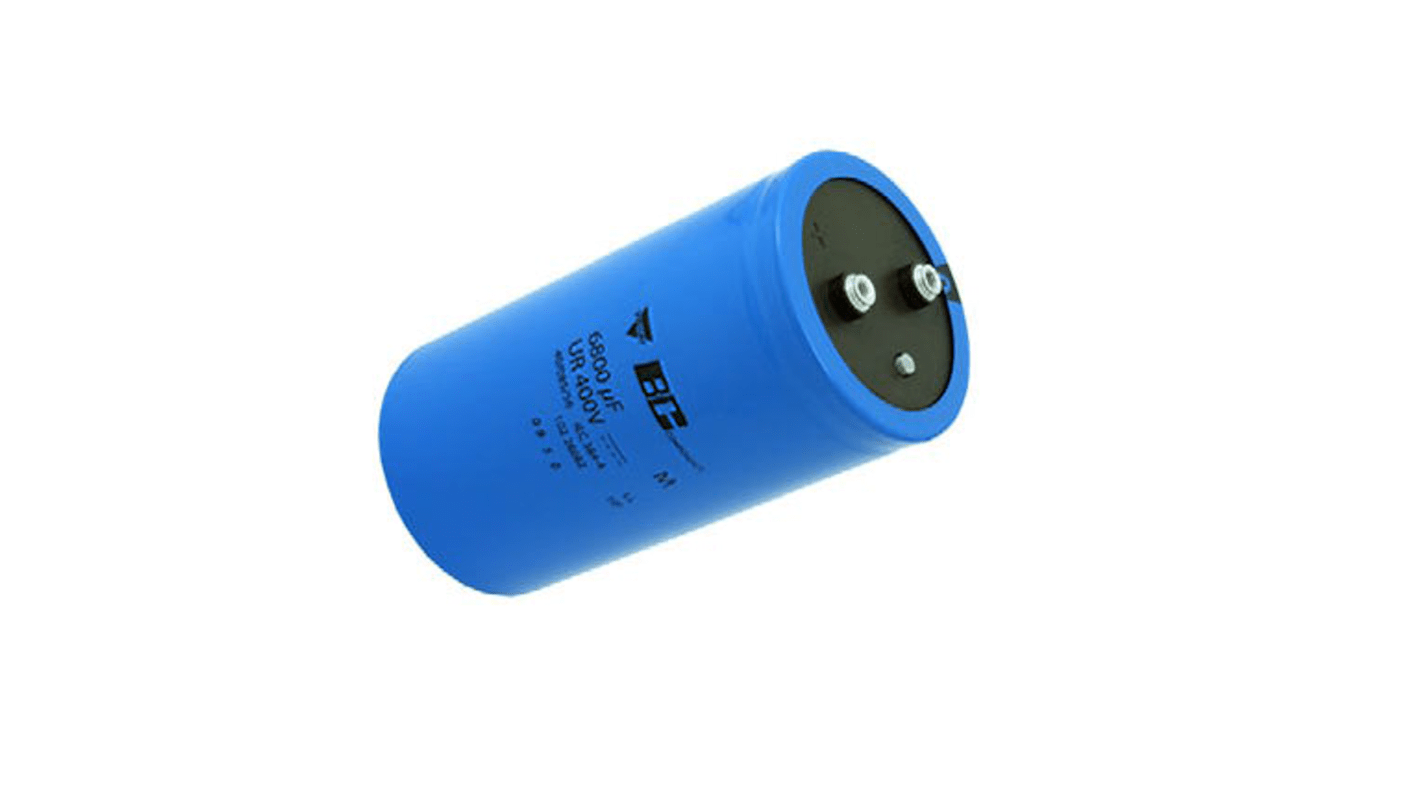

The Vishay Aluminium electrolytic capacitors are built in cylindrical aluminium cases with screw terminals. This aluminium electrolytic capacitor has a long useful life and high power ripple current.
Low ESR
Lead free
RoHS compliant
Insulated with blue sleeve
Pressure relief in the sealing
