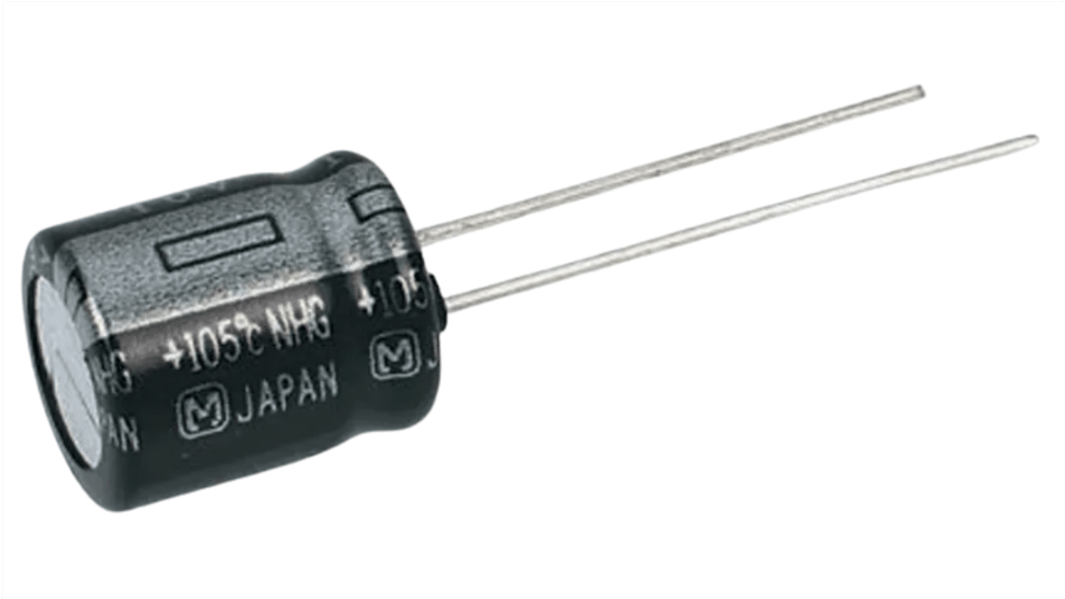

Panasonic 1000 μF Capacitor 6.3V dc, Through Hole Radial Lead
- RS Stock No.:
- 240-3752
- Distrelec Article No.:
- 304-40-722
- Mfr. Part No.:
- ECA0JHG102
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 pack of 10 units)*
£2.12
(exc. VAT)
£2.54
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,310 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.212 | £2.12 |
| 50 - 90 | £0.166 | £1.66 |
| 100 + | £0.132 | £1.32 |
*price indicative
- RS Stock No.:
- 240-3752
- Distrelec Article No.:
- 304-40-722
- Mfr. Part No.:
- ECA0JHG102
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Product Type | Capacitor | |
| Capacitance | 1000μF | |
| Voltage | 6.3V dc | |
| Mount Type | Through Hole | |
| Construction | Radial Can | |
| Packaging | Tape | |
| Polarity | Polar | |
| Height | 11.5mm | |
| Length | 11.5mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 8mm | |
| Capacitor Ripple Current | 380mA | |
| Pin Count | 2 | |
| Termination Type | Radial Lead | |
| Maximum Operating Temperature | 105°C | |
| Lead Pitch | 5mm | |
| Lifetime | 1000 h | |
| Standards/Approvals | RoHS | |
| Tolerance | ±20 % | |
| Leakage Current | 3μA | |
| Automotive Standard | AEC-Q200 | |
| Series | NHG | |
| Dissipation Factor | 8% | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Product Type Capacitor | ||
Capacitance 1000μF | ||
Voltage 6.3V dc | ||
Mount Type Through Hole | ||
Construction Radial Can | ||
Packaging Tape | ||
Polarity Polar | ||
Height 11.5mm | ||
Length 11.5mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 8mm | ||
Capacitor Ripple Current 380mA | ||
Pin Count 2 | ||
Termination Type Radial Lead | ||
Maximum Operating Temperature 105°C | ||
Lead Pitch 5mm | ||
Lifetime 1000 h | ||
Standards/Approvals RoHS | ||
Tolerance ±20 % | ||
Leakage Current 3μA | ||
Automotive Standard AEC-Q200 | ||
Series NHG | ||
Dissipation Factor 8% | ||
The Panasonic NHG-A series 1000μF aluminium electrolytic capacitors (radial lead type) capacitance has rated voltage 6.3V.
Endurance : 105 ℃ 1000 h to 2000 h
AEC-Q200 compliant (6.3 V to 100 V)
RoHS compliant
