Vishay 1000 μF Capacitor 25V dc, Radial, Through Hole - MAL217056102E3 Axial
- RS Stock No.:
- 238-5641
- Mfr. Part No.:
- MAL217056102E3
- Brand:
- Vishay
Subtotal (1 box of 500 units)*
£351.50
(exc. VAT)
£422.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 04 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 500 + | £0.703 | £351.50 |
*price indicative
- RS Stock No.:
- 238-5641
- Mfr. Part No.:
- MAL217056102E3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Capacitance | 1000μF | |
| Product Type | Capacitor | |
| Voltage | 25V dc | |
| Mount Type | Radial, Through Hole | |
| Packaging | Tape | |
| Polarity | Polar | |
| Length | 20mm | |
| Minimum Operating Temperature | 105°C | |
| Diameter | 12.5mm | |
| Termination Type | Axial | |
| Pin Count | 2 | |
| Capacitor Ripple Current | 1.8A | |
| Maximum Operating Temperature | 105°C | |
| Lead Pitch | 5mm | |
| Lifetime | 10000 h | |
| Standards/Approvals | AEC-Q200, IEC 60068, IEC 60384-4/EN 130300 | |
| Equivalent Series Resistance ESR | 0.033Ω | |
| Leakage Current | 253μA | |
| Tolerance | ±20 % | |
| Series | 170 | |
| Automotive Standard | AEC-Q200 | |
| Dissipation Factor | 0.14% | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Capacitance 1000μF | ||
Product Type Capacitor | ||
Voltage 25V dc | ||
Mount Type Radial, Through Hole | ||
Packaging Tape | ||
Polarity Polar | ||
Length 20mm | ||
Minimum Operating Temperature 105°C | ||
Diameter 12.5mm | ||
Termination Type Axial | ||
Pin Count 2 | ||
Capacitor Ripple Current 1.8A | ||
Maximum Operating Temperature 105°C | ||
Lead Pitch 5mm | ||
Lifetime 10000 h | ||
Standards/Approvals AEC-Q200, IEC 60068, IEC 60384-4/EN 130300 | ||
Equivalent Series Resistance ESR 0.033Ω | ||
Leakage Current 253μA | ||
Tolerance ±20 % | ||
Series 170 | ||
Automotive Standard AEC-Q200 | ||
Dissipation Factor 0.14% | ||

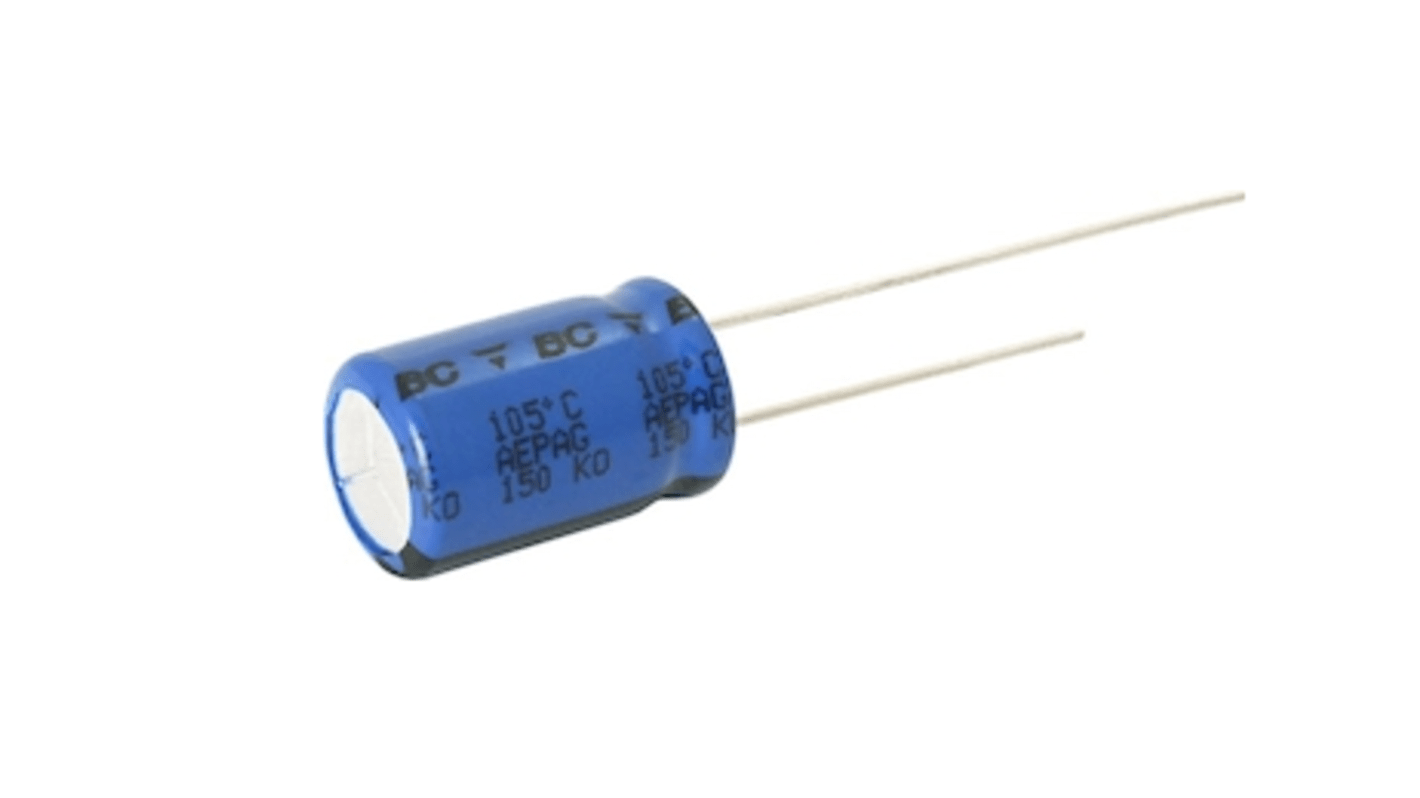

The Vishay aluminium electrolytic capacitors have rated capacitance of 1000 μF. These have radial leads, cylindrical aluminium case with pressure relief, insulated with blue sleeve. Charge and discharge proof. Suitable for power supplies (SMPS, DC/DC conv
Very long useful life 4000h to 10000h at 105°C , high stability, high reliability
AEC-Q200 qualified
Excellent ripple current capability
