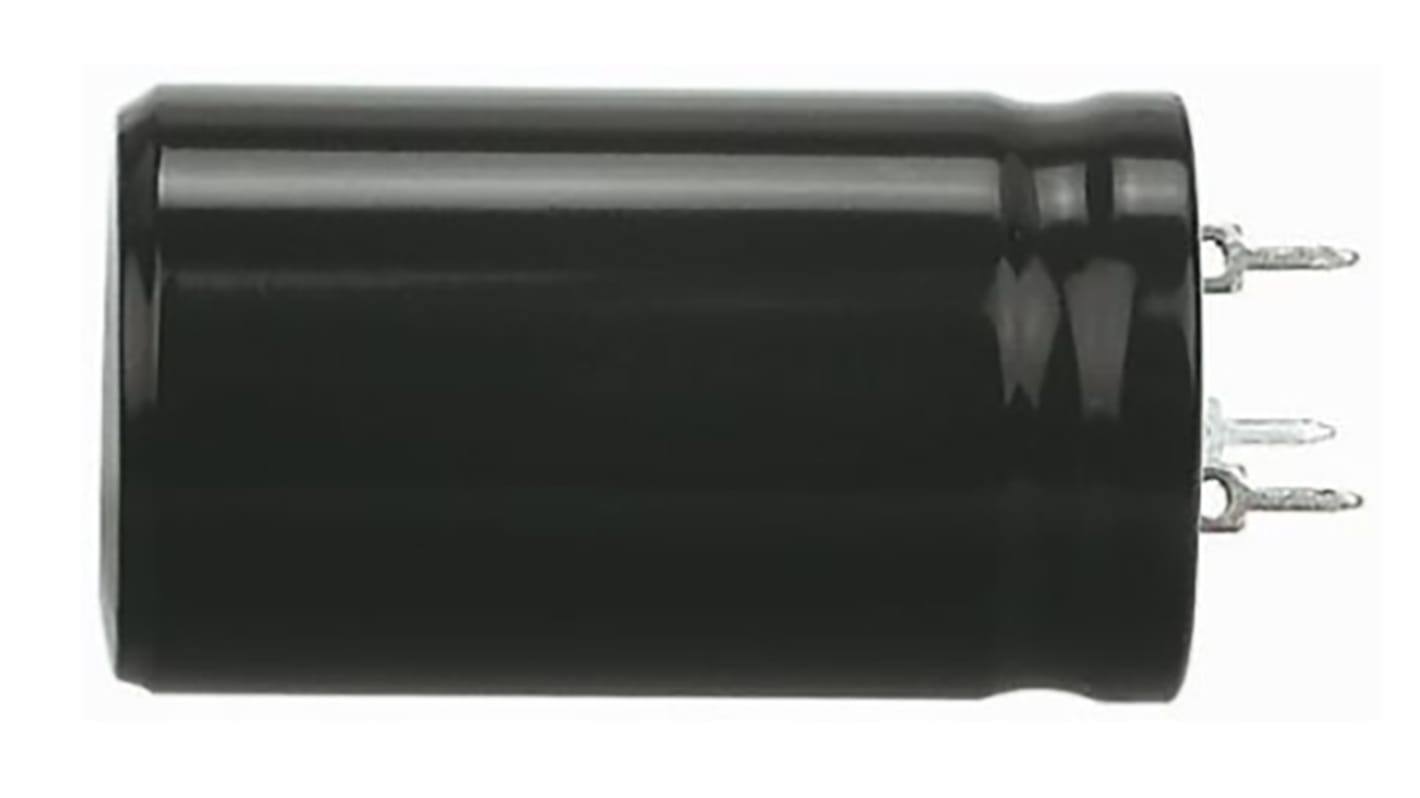

KEMET 1000μF Aluminium Electrolytic Capacitor 100V dc, PCB Mount - ALP22A102AB100
- RS Stock No.:
- 227-1210
- Mfr. Part No.:
- ALP22A102AB100
- Brand:
- KEMET
40 In stock - FREE next working day delivery available
Added
Price Each
£5.21
(exc. VAT)
£6.25
(inc. VAT)
| Units | Per unit |
| 1 + | £5.21 |
- RS Stock No.:
- 227-1210
- Mfr. Part No.:
- ALP22A102AB100
- Brand:
- KEMET
Legislation and Compliance
Product Details
ALP22 Series
Long life low ESR aluminium electrolytic capacitors incorporating a safety vent and insulating sleeve.
Additional PCB pins are intended for mechanical connection only. It is recommended that they be soldered to the printed circuit board on isolated pads
Additional PCB pins are intended for mechanical connection only. It is recommended that they be soldered to the printed circuit board on isolated pads
Specifications
Attribute | Value |
|---|---|
| Capacitance | 1000µF |
| Voltage | 100V dc |
| Mounting Type | PCB Mount |
| Technology | Aluminium Electrolytic |
| Dimensions | 25 x 45mm |
| Length | 45mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 25mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 12000 h @ +85 °C/100V dc/Ir |
| Equivalent Series Resistance | 126 mΩ @ 100 kHz |
| Series | ALP22 |
| Tolerance | -10 → +30% |
| Leakage Current | 0.6 mA |
| Ripple Current | 1.96 A @ 100Hz |
| Polarised | Polar |
