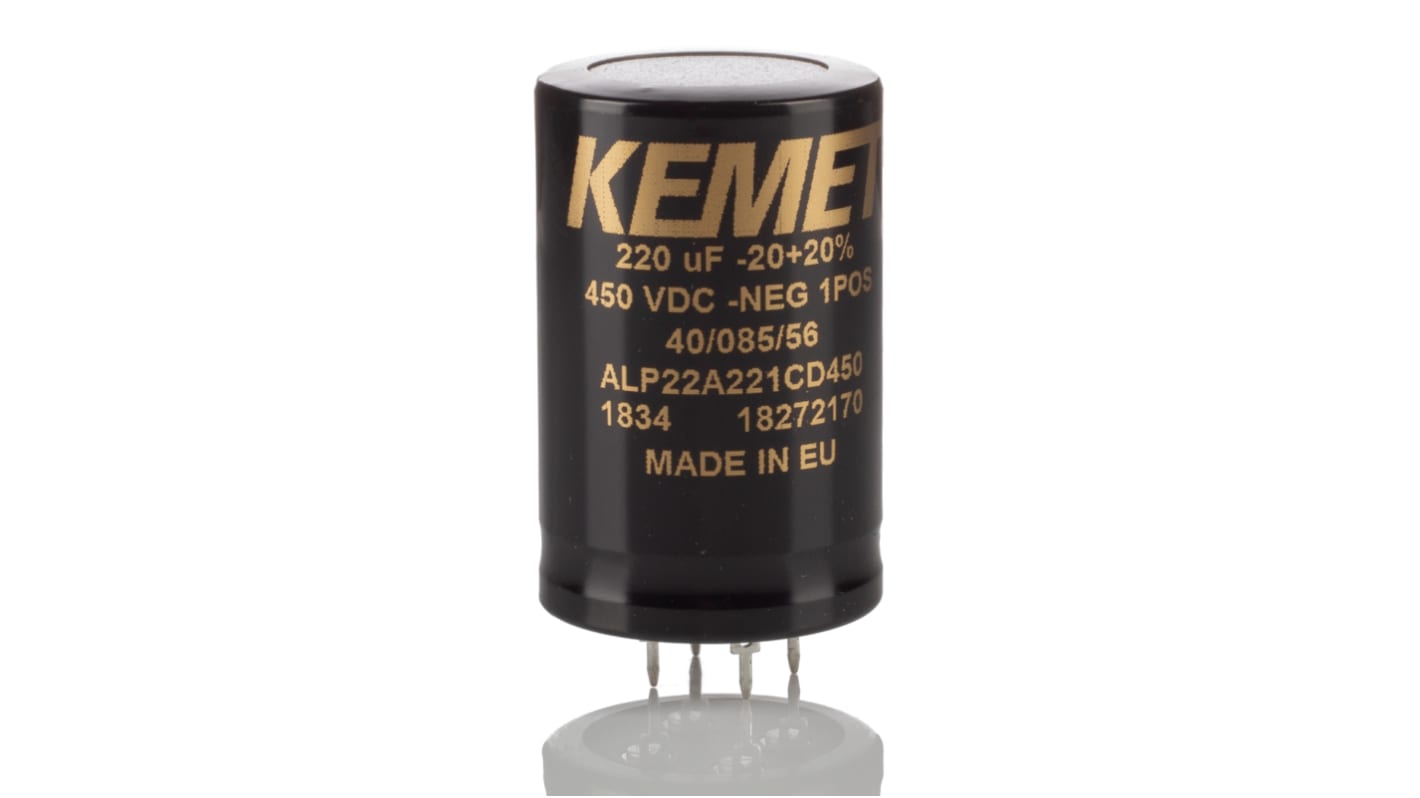

KEMET 220μF Aluminium Electrolytic Capacitor 450V dc, PCB Mount - ALP22A221CD450
- RS Stock No.:
- 227-1349
- Mfr. Part No.:
- ALP22A221CD450
- Brand:
- KEMET
Subtotal (1 unit)*
£11.78
(exc. VAT)
£14.14
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1 unit(s) shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £11.78 |
*price indicative
- RS Stock No.:
- 227-1349
- Mfr. Part No.:
- ALP22A221CD450
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Capacitance | 220µF | |
| Voltage | 450V dc | |
| Mounting Type | PCB Mount | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 35 x 55mm | |
| Length | 55mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 35mm | |
| Maximum Operating Temperature | +85°C | |
| Lifetime | 18000 h @ +85 °C/450V dc/Ir | |
| Series | ALP22 | |
| Polarised | Polar | |
| Ripple Current | 1.31 A @ 100Hz | |
| Tolerance | -10 → +30% | |
| Leakage Current | 1.836 mA | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Capacitance 220µF | ||
Voltage 450V dc | ||
Mounting Type PCB Mount | ||
Technology Aluminium Electrolytic | ||
Dimensions 35 x 55mm | ||
Length 55mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 35mm | ||
Maximum Operating Temperature +85°C | ||
Lifetime 18000 h @ +85 °C/450V dc/Ir | ||
Series ALP22 | ||
Polarised Polar | ||
Ripple Current 1.31 A @ 100Hz | ||
Tolerance -10 → +30% | ||
Leakage Current 1.836 mA | ||
ALP22 Series
Long life low ESR aluminium electrolytic capacitors incorporating a safety vent and insulating sleeve.
Additional PCB pins are intended for mechanical connection only. It is recommended that they be soldered to the printed circuit board on isolated pads
Additional PCB pins are intended for mechanical connection only. It is recommended that they be soldered to the printed circuit board on isolated pads
