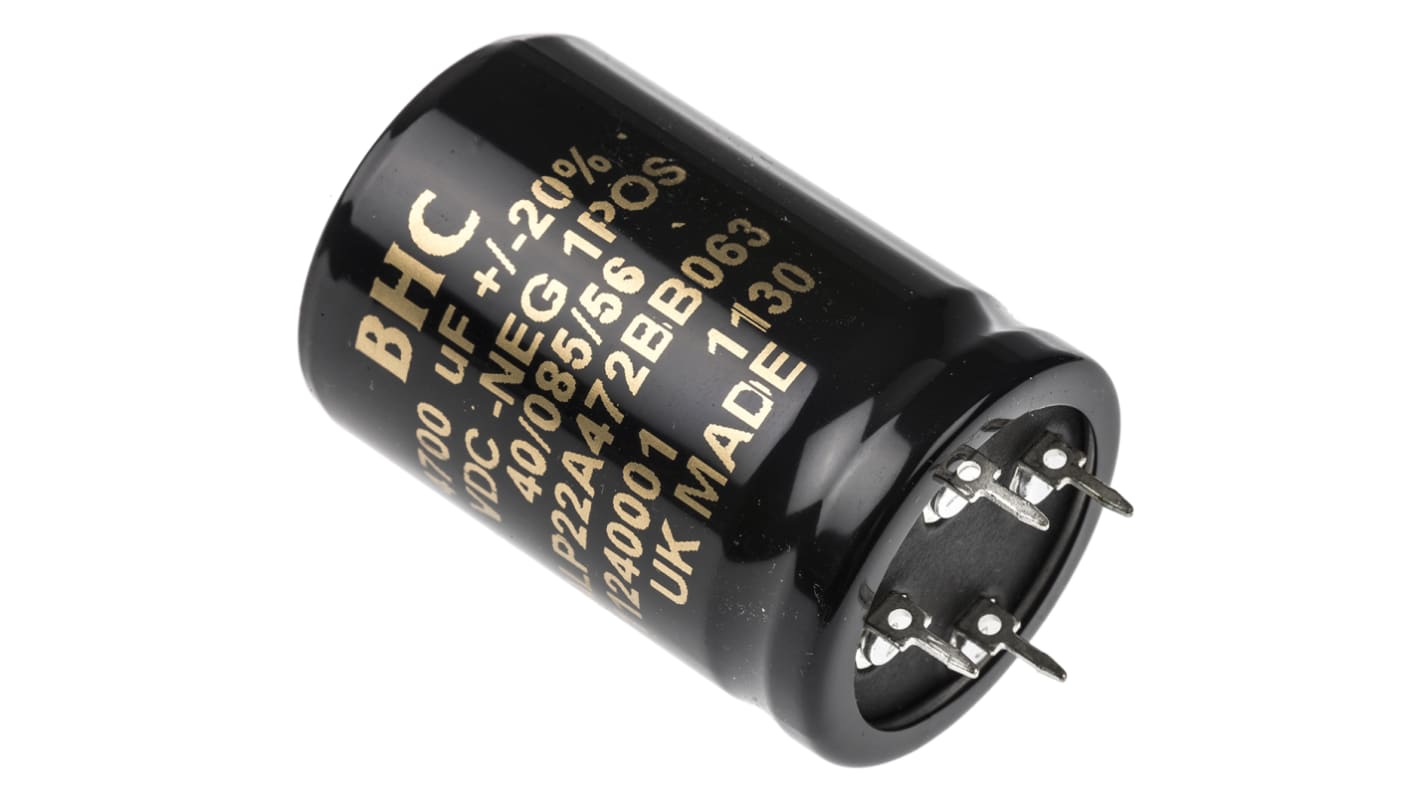

KEMET 4700μF Aluminium Electrolytic Capacitor 63V dc, PCB Mount - ALP22A472BB063
- RS Stock No.:
- 172-6842
- Mfr. Part No.:
- ALP22A472BB063
- Brand:
- KEMET
Subtotal (1 bag of 160 units)*
£1,315.52
(exc. VAT)
£1,578.56
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 960 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 160 + | £8.222 | £1,315.52 |
*price indicative
- RS Stock No.:
- 172-6842
- Mfr. Part No.:
- ALP22A472BB063
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Capacitance | 4700µF | |
| Voltage | 63V dc | |
| Mounting Type | PCB Mount | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 30 x 45mm | |
| Length | 45mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 30mm | |
| Maximum Operating Temperature | +85°C | |
| Lifetime | 15000 h @ +85 °C/63V dc/Ir | |
| Polarised | Polar | |
| Equivalent Series Resistance | 49 mΩ @ 100 kHz | |
| Tolerance | -10 → +30% | |
| Series | ALP22 | |
| Leakage Current | 1.7766 mA | |
| Ripple Current | 7.19 A @ 100Hz | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Capacitance 4700µF | ||
Voltage 63V dc | ||
Mounting Type PCB Mount | ||
Technology Aluminium Electrolytic | ||
Dimensions 30 x 45mm | ||
Length 45mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 30mm | ||
Maximum Operating Temperature +85°C | ||
Lifetime 15000 h @ +85 °C/63V dc/Ir | ||
Polarised Polar | ||
Equivalent Series Resistance 49 mΩ @ 100 kHz | ||
Tolerance -10 → +30% | ||
Series ALP22 | ||
Leakage Current 1.7766 mA | ||
Ripple Current 7.19 A @ 100Hz | ||
ALP22 Series
Long life low ESR aluminium electrolytic capacitors incorporating a safety vent and insulating sleeve.
Additional PCB pins are intended for mechanical connection only. It is recommended that they be soldered to the printed circuit board on isolated pads
Additional PCB pins are intended for mechanical connection only. It is recommended that they be soldered to the printed circuit board on isolated pads
