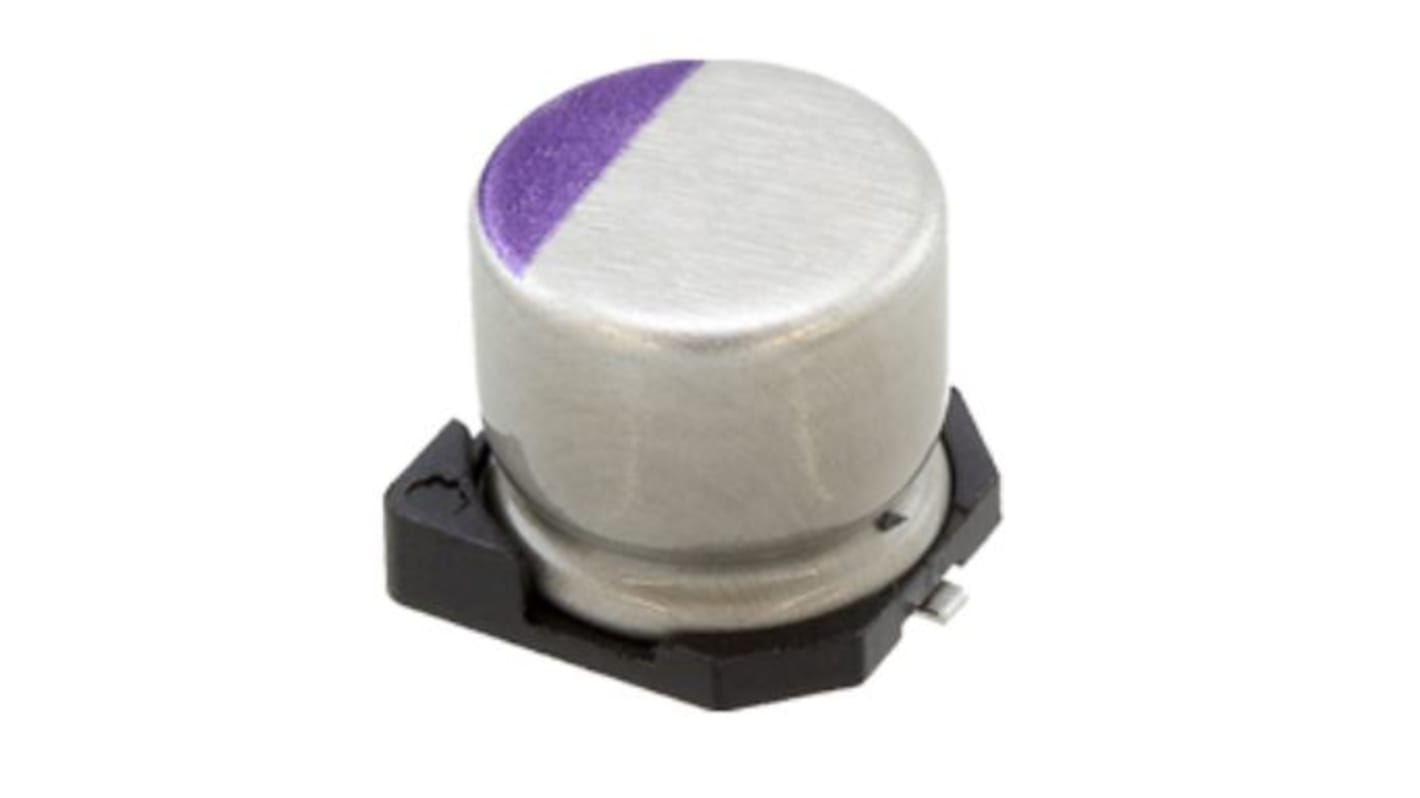

Panasonic 220 μF Solid Capacitor 16V dc, Surface Mount - 16SVPG220M 1000
- RS Stock No.:
- 223-7693
- Mfr. Part No.:
- 16SVPG220M
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 pack of 5 units)*
£8.60
(exc. VAT)
£10.30
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £1.72 | £8.60 |
| 50 - 95 | £1.396 | £6.98 |
| 100 - 245 | £1.20 | £6.00 |
| 250 - 495 | £1.098 | £5.49 |
| 500 + | £1.062 | £5.31 |
*price indicative
- RS Stock No.:
- 223-7693
- Mfr. Part No.:
- 16SVPG220M
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Product Type | Solid Capacitor | |
| Capacitance | 220μF | |
| Voltage | 16V dc | |
| Mount Type | Surface Mount | |
| Packaging | Carrier Tape | |
| Height | 6.6mm | |
| Polarity | Polar | |
| Length | 5.9mm | |
| Package/Case | 1000 | |
| Minimum Operating Temperature | 105°C | |
| Diameter | 6.3mm | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 105°C | |
| Lifetime | 5000 h | |
| Standards/Approvals | RoHS | |
| Leakage Current | 704μA | |
| Ripple Current | 4.1A | |
| Equivalent Series Resistance ESR | 14mΩ | |
| Series | SVPG | |
| Automotive Standard | No | |
| Tolerance ± | 20% | |
| Dissipation Factor | 12% | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Product Type Solid Capacitor | ||
Capacitance 220μF | ||
Voltage 16V dc | ||
Mount Type Surface Mount | ||
Packaging Carrier Tape | ||
Height 6.6mm | ||
Polarity Polar | ||
Length 5.9mm | ||
Package/Case 1000 | ||
Minimum Operating Temperature 105°C | ||
Diameter 6.3mm | ||
Pin Count 2 | ||
Maximum Operating Temperature 105°C | ||
Lifetime 5000 h | ||
Standards/Approvals RoHS | ||
Leakage Current 704μA | ||
Ripple Current 4.1A | ||
Equivalent Series Resistance ESR 14mΩ | ||
Series SVPG | ||
Automotive Standard No | ||
Tolerance ± 20% | ||
Dissipation Factor 12% | ||
The Panasonic OS-CON is an aluminium solid capacitor with high conductive polymer. OS-CON acquires low Equivalent Series Resistance (ESR), excellent noise reduction capability and frequency characteristics. In addition, OS-CON has a long life span and its ESR has little change even at low temperatures since the electrolyte is solid. It has 220 μF capacitance.
Long life
Superior temperature characteristics
High voltage and high reliability
Pb free compliant
