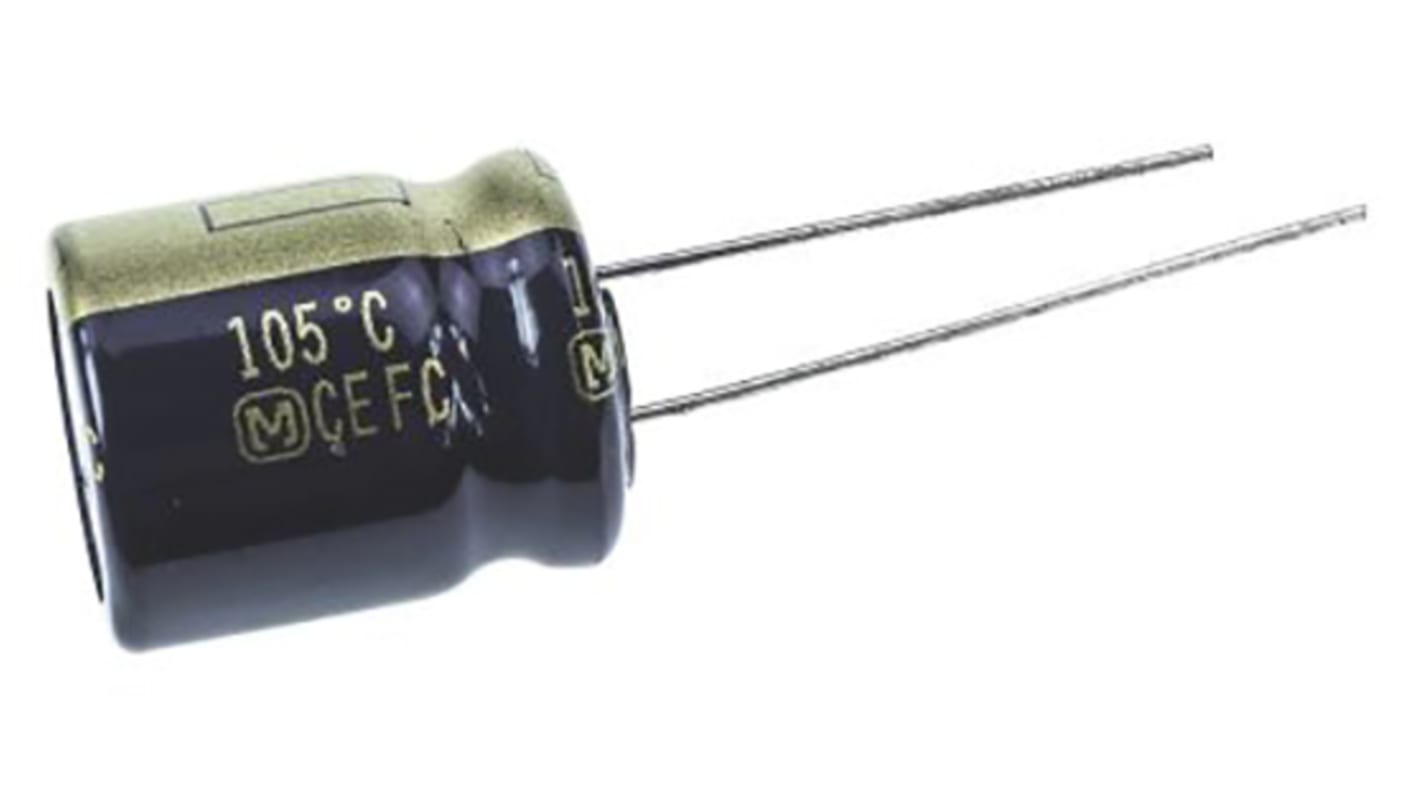

Panasonic 100μF Aluminium Electrolytic Capacitor 10V dc, Radial, Through Hole - EEUFC1A101S
- RS Stock No.:
- 176-6389
- Mfr. Part No.:
- EEUFC1A101S
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 pack of 25 units)*
£2.975
(exc. VAT)
£3.575
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 200 unit(s) shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | £0.119 | £2.975 |
| 50 - 75 | £0.112 | £2.80 |
| 100 + | £0.063 | £1.575 |
*price indicative
- RS Stock No.:
- 176-6389
- Mfr. Part No.:
- EEUFC1A101S
- Brand:
- Panasonic
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 100µF | |
| Voltage | 10V dc | |
| Mounting Type | Radial, Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 5 (Dia.) x 11mm | |
| Height | 11mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 5mm | |
| Maximum Operating Temperature | +105°C | |
| Lead Pitch | 2mm | |
| Lifetime | 1000h | |
| Leakage Current | 3 μA | |
| Automotive Standard | AEC-Q200 | |
| Polarised | Polar | |
| Series | FC | |
| Tolerance | ±20% | |
| Ripple Current | 175mArms | |
| Dissipation Factor | 0.19% | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 100µF | ||
Voltage 10V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 5 (Dia.) x 11mm | ||
Height 11mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 5mm | ||
Maximum Operating Temperature +105°C | ||
Lead Pitch 2mm | ||
Lifetime 1000h | ||
Leakage Current 3 μA | ||
Automotive Standard AEC-Q200 | ||
Polarised Polar | ||
Series FC | ||
Tolerance ±20% | ||
Ripple Current 175mArms | ||
Dissipation Factor 0.19% | ||
