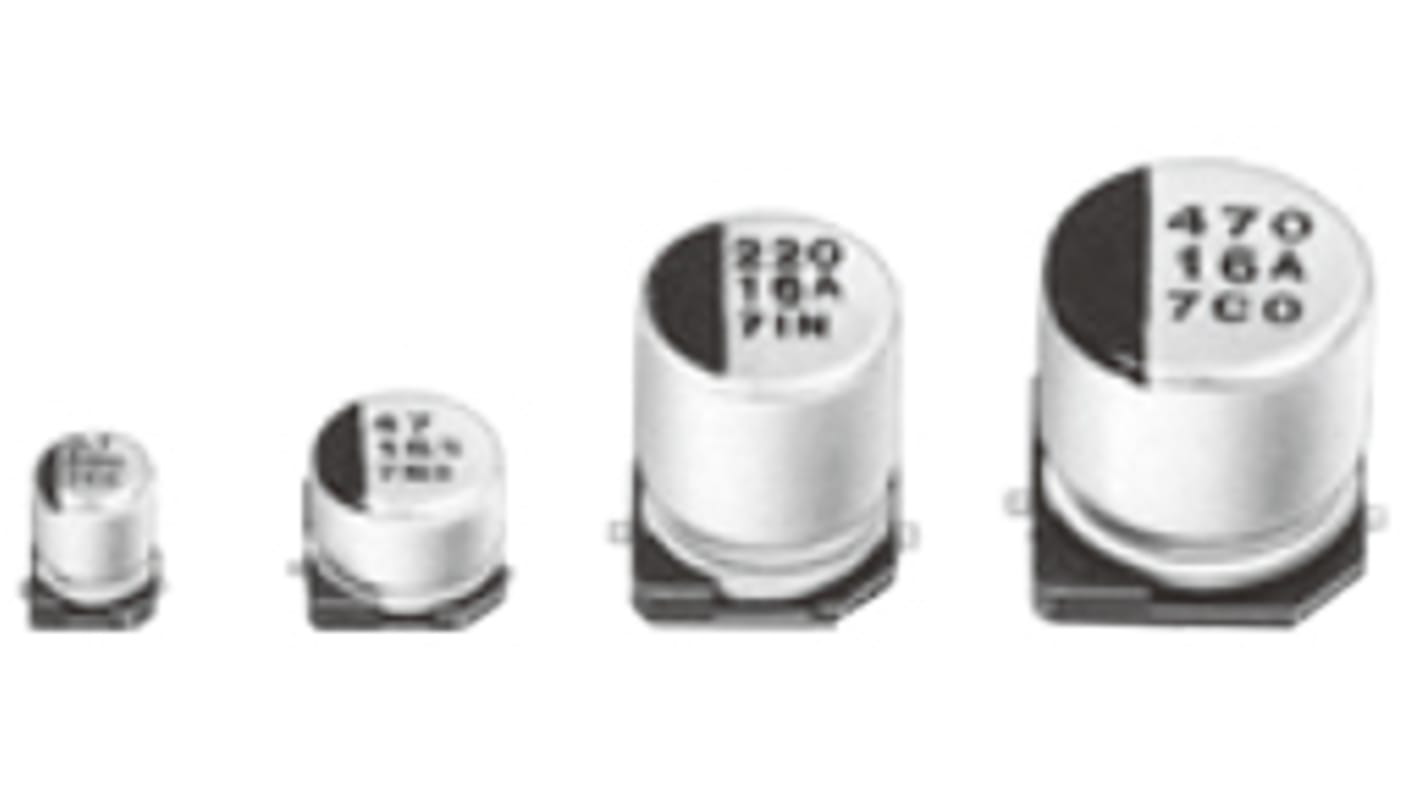

Panasonic 10μF Aluminium Electrolytic Capacitor 25V dc, Surface Mount - EEE1EA100WR
- RS Stock No.:
- 176-3770
- Mfr. Part No.:
- EEE1EA100WR
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 pack of 50 units)*
£6.30
(exc. VAT)
£7.55
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 3,050 unit(s) ready to ship
- Plus 4,250 unit(s) shipping from 09 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 200 | £0.126 | £6.30 |
| 250 - 450 | £0.095 | £4.75 |
| 500 - 950 | £0.084 | £4.20 |
| 1000 + | £0.079 | £3.95 |
*price indicative
- RS Stock No.:
- 176-3770
- Mfr. Part No.:
- EEE1EA100WR
- Brand:
- Panasonic
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 10µF | |
| Voltage | 25V dc | |
| Mounting Type | Surface Mount | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 4 (Dia.) x 5.4mm | |
| Height | 5.4mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 4mm | |
| Maximum Operating Temperature | +85°C | |
| Lead Pitch | 1mm | |
| Lifetime | 1000h | |
| Polarised | Polar | |
| Tolerance | ±20% | |
| Ripple Current | 22mArms | |
| Leakage Current | 6 μA | |
| Automotive Standard | AEC-Q200 | |
| Series | S | |
| Dissipation Factor | 0.2% | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 10µF | ||
Voltage 25V dc | ||
Mounting Type Surface Mount | ||
Technology Aluminium Electrolytic | ||
Dimensions 4 (Dia.) x 5.4mm | ||
Height 5.4mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 4mm | ||
Maximum Operating Temperature +85°C | ||
Lead Pitch 1mm | ||
Lifetime 1000h | ||
Polarised Polar | ||
Tolerance ±20% | ||
Ripple Current 22mArms | ||
Leakage Current 6 μA | ||
Automotive Standard AEC-Q200 | ||
Series S | ||
Dissipation Factor 0.2% | ||
