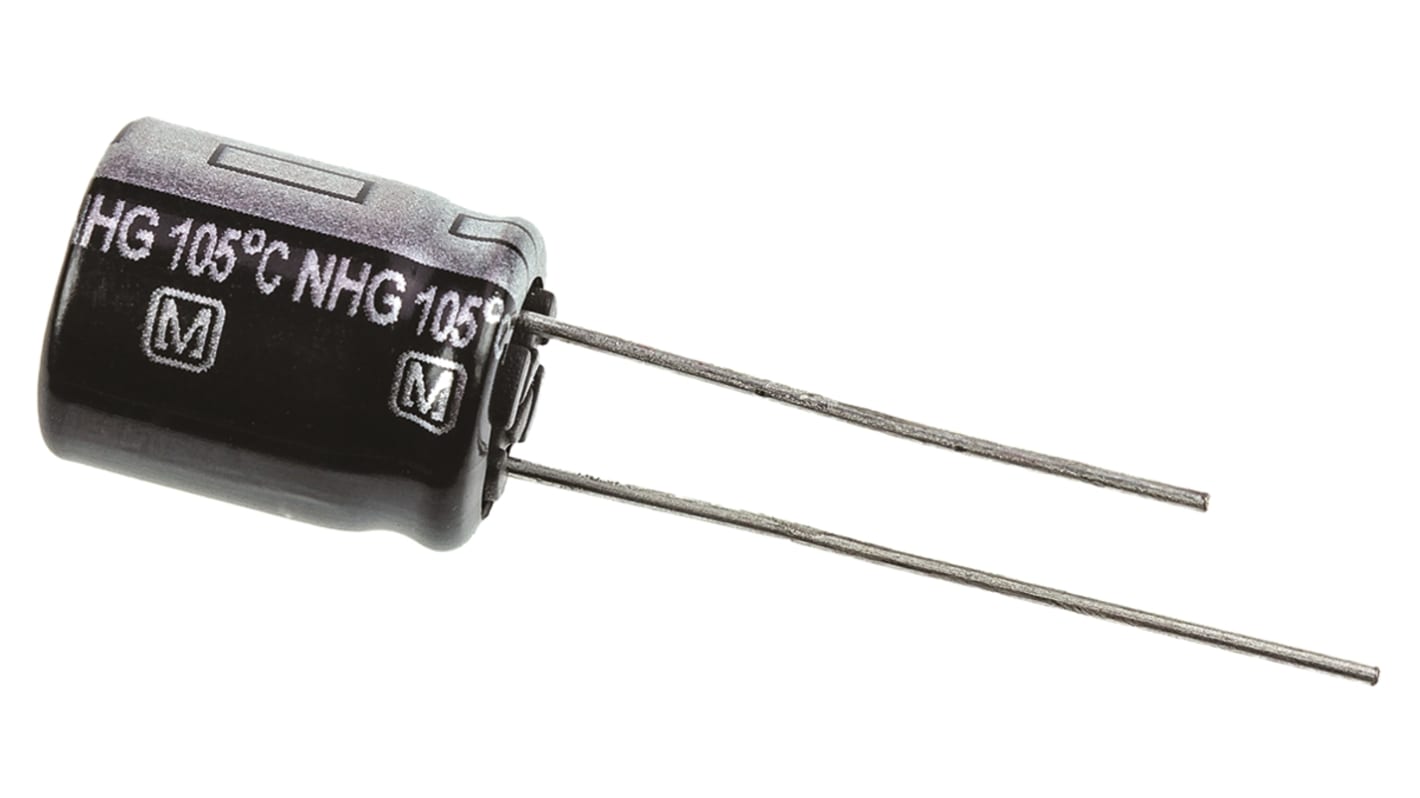

Panasonic 100μF Aluminium Electrolytic Capacitor 63V dc, Radial, Through Hole - ECA1JHG101
- RS Stock No.:
- 108-4607
- Mfr. Part No.:
- ECA1JHG101
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 bag of 200 units)*
£46.60
(exc. VAT)
£56.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 800 unit(s) ready to ship
- Plus 200 unit(s) ready to ship from another location
- Plus 400 unit(s) shipping from 09 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 200 - 200 | £0.233 | £46.60 |
| 400 - 600 | £0.221 | £44.20 |
| 800 - 1800 | £0.198 | £39.60 |
| 2000 + | £0.175 | £35.00 |
*price indicative
- RS Stock No.:
- 108-4607
- Mfr. Part No.:
- ECA1JHG101
- Brand:
- Panasonic
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 100µF | |
| Voltage | 63V dc | |
| Mounting Type | Radial, Through Hole | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 10 (Dia.) x 12.5mm | |
| Height | 12.5mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 10mm | |
| Maximum Operating Temperature | +105°C | |
| Lifetime | 2000h | |
| Lead Pitch | 5mm | |
| Polarised | Polar | |
| Ripple Current | 215mA | |
| Tolerance | ±20% | |
| Series | NHG | |
| Leakage Current | 3 μA | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 100µF | ||
Voltage 63V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 10 (Dia.) x 12.5mm | ||
Height 12.5mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 10mm | ||
Maximum Operating Temperature +105°C | ||
Lifetime 2000h | ||
Lead Pitch 5mm | ||
Polarised Polar | ||
Ripple Current 215mA | ||
Tolerance ±20% | ||
Series NHG | ||
Leakage Current 3 μA | ||
