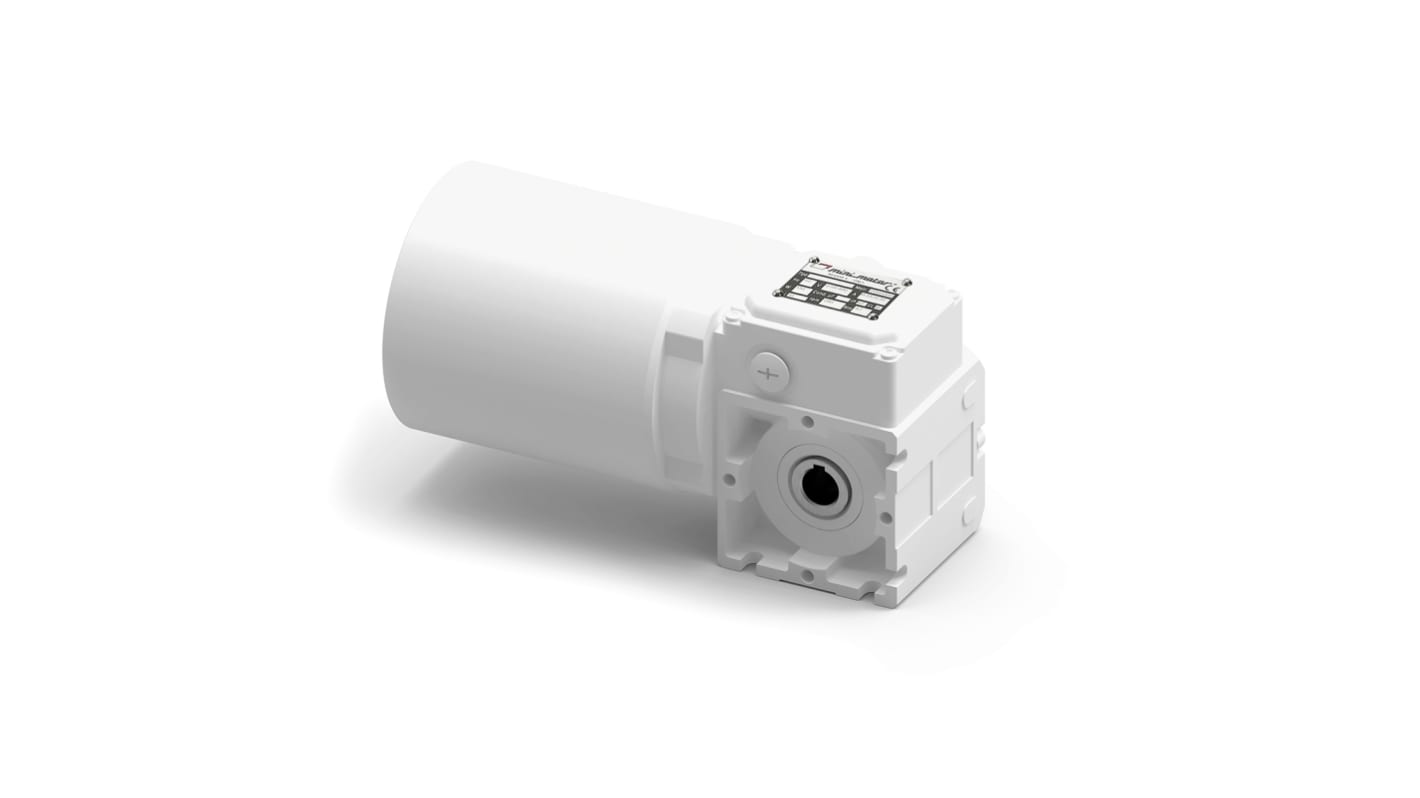

Mini Motor XCF Worm AC Geared Motor, 290 W, 2-Pole, 400V
- RS Stock No.:
- 181-7031
- Mfr. Part No.:
- XCF5T2-50-B3
- Brand:
- Mini Motor
Subtotal (1 unit)*
£1,127.19
(exc. VAT)
£1,352.63
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 27 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,127.19 |
*price indicative
- RS Stock No.:
- 181-7031
- Mfr. Part No.:
- XCF5T2-50-B3
- Brand:
- Mini Motor
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Mini Motor | |
| Product Type | AC Geared Motor | |
| Power Rating | 290W | |
| Sub Type | Geared | |
| Supply Voltage | 400V | |
| Output Speed | 56rpm | |
| Number of Poles | 2 | |
| Gearhead Type | Worm | |
| Gear Ratio | 50:1 | |
| Material | Aluminium, Steel | |
| Length | 291mm | |
| Standards/Approvals | RoHS, IEC/EN 60529 | |
| Width | 96mm | |
| Depth | 151mm | |
| Current Rating | 1.56A | |
| Maximum Output Torque | 31.4Nm | |
| Bearing Type | Roller, Ball | |
| Series | XCF | |
| Select all | ||
|---|---|---|
Brand Mini Motor | ||
Product Type AC Geared Motor | ||
Power Rating 290W | ||
Sub Type Geared | ||
Supply Voltage 400V | ||
Output Speed 56rpm | ||
Number of Poles 2 | ||
Gearhead Type Worm | ||
Gear Ratio 50:1 | ||
Material Aluminium, Steel | ||
Length 291mm | ||
Standards/Approvals RoHS, IEC/EN 60529 | ||
Width 96mm | ||
Depth 151mm | ||
Current Rating 1.56A | ||
Maximum Output Torque 31.4Nm | ||
Bearing Type Roller, Ball | ||
Series XCF | ||
- COO (Country of Origin):
- IT
WORM GEARED MOTOR. White epoxy protective coated for use in harsh environments. Technicalities, MOTOR: Asynchronous three-phase motor with 2 poles. Protection IP67 in compliance with IEC/EN 60529 standards. GEAR UNIT: With die-cast aluminium casing. Wheel rim in special bronze 120/160 HB hardness. Worm gear in hardened steel with thread rotating on ball and roller bearings. Output shaft in stainless steel. Lubrication with special long-lasting oil. Sealing rings designed for high temperatures. Rated torque from 4.4 to 35 Nm.
For clean environments
Up to 35Nm rated torque
Minimal dirt trap points
Epoxy coated with no external fan
