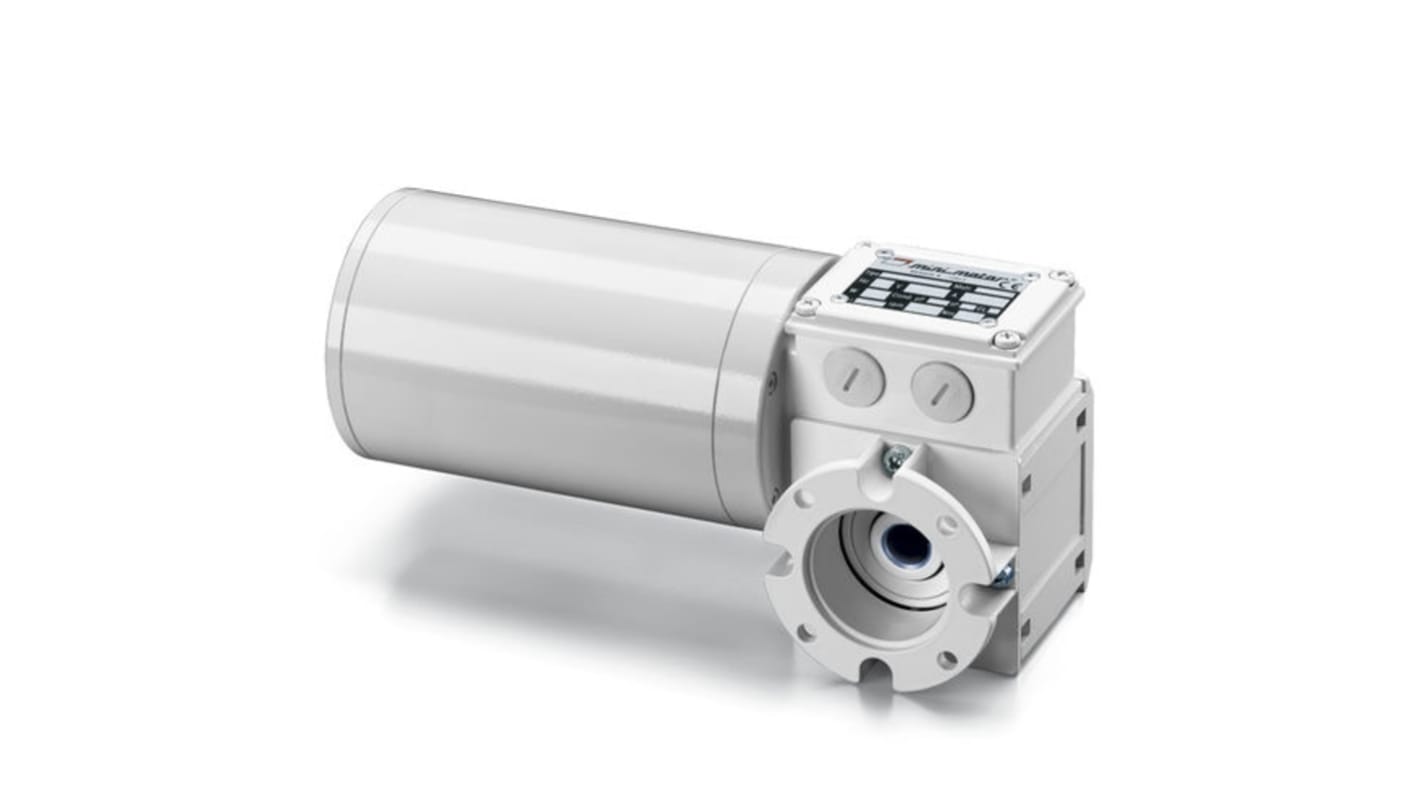

Mini Motor Worm AC Geared Motor, 130 W, 2-Pole, 230V, 400 V
- RS Stock No.:
- 181-7023
- Mfr. Part No.:
- PCF5T2-20-B3
- Brand:
- Mini Motor
Subtotal (1 unit)*
£974.86
(exc. VAT)
£1,169.83
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £974.86 |
*price indicative
- RS Stock No.:
- 181-7023
- Mfr. Part No.:
- PCF5T2-20-B3
- Brand:
- Mini Motor
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Mini Motor | |
| Power Rating | 130W | |
| Product Type | AC Geared Motor | |
| Supply Voltage | 230, 400V | |
| Output Speed | 145rpm | |
| Number of Poles | 2 | |
| Gearhead Type | Worm | |
| Width | 60mm | |
| Depth | 117.5mm | |
| Length | 238.5mm | |
| Maximum Output Torque | 15.4Nm | |
| Select all | ||
|---|---|---|
Brand Mini Motor | ||
Power Rating 130W | ||
Product Type AC Geared Motor | ||
Supply Voltage 230, 400V | ||
Output Speed 145rpm | ||
Number of Poles 2 | ||
Gearhead Type Worm | ||
Width 60mm | ||
Depth 117.5mm | ||
Length 238.5mm | ||
Maximum Output Torque 15.4Nm | ||
- COO (Country of Origin):
- IT
EN: Inline Helical Geared Motor. 130 W three-phase motor;USA: Inline Helical Geared Motor. Single-phase and three-phase motor 1/5.6 HP;MOTOR: Three-phase 2-pole asynchronous motor, totally enclosed. Built-in thermal cutoff. Winding Class H. Protection IP67 in compliance with IEC/EN 60929 standards.;GEAR UNIT: Coaxial with die-cast aluminium gearcase. Hardened and tempered gears with their shafts rotating on roller bearings. Seal rings in special high-temperature rubber (FKM). Lubrication with special long-lasting oil for use with foodstuffs (H1).;There are 14 available gear ratios (i), from 6.48 to 372.8. Rated torque up to 20 Nm.;White epoxy paint protective coat.;Version B3 - B5.;ALWAYS specify application environment.
