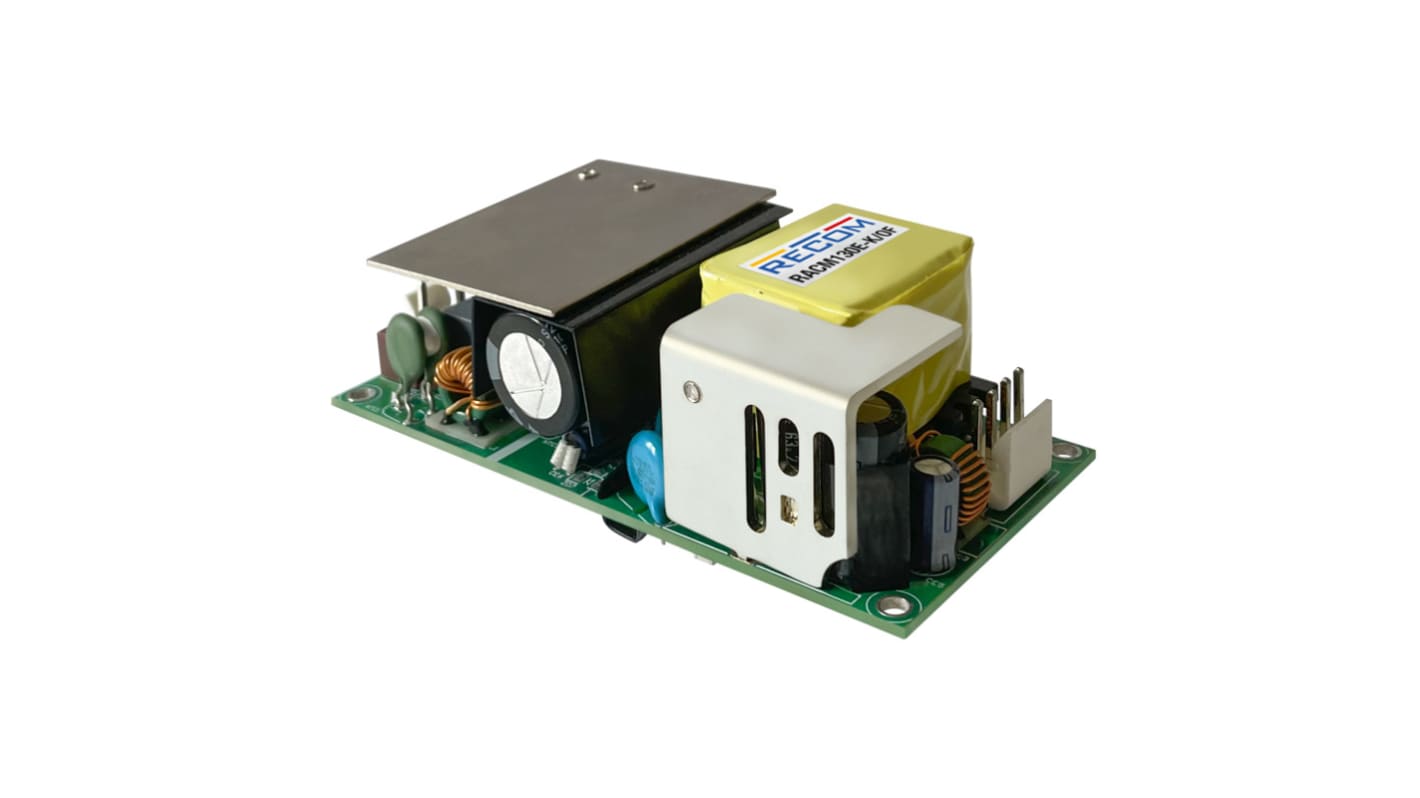

Recom, AC/DC Converter 1.08 A, 12 V dc, 12 V dc, Open Frame
- RS Stock No.:
- 274-5347
- Mfr. Part No.:
- RACM130E-12SK/OF
- Brand:
- Recom
Bulk discount available
Subtotal (1 tray of 9 units)*
£252.57
(exc. VAT)
£303.08
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 02 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 - 4 | £252.57 | £28.063 |
| 5 - 9 | £244.99 | £27.221 |
| 10 - 24 | £237.42 | £26.38 |
| 25 - 49 | £229.84 | £25.538 |
| 50 + | £222.26 | £24.696 |
*price indicative
- RS Stock No.:
- 274-5347
- Mfr. Part No.:
- RACM130E-12SK/OF
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Maximum Input Voltage | 264V ac | |
| Product Type | AC/DC Converter | |
| Maximum Output Voltage | 12V dc | |
| Output Power | 130W | |
| Mount Type | Chassis | |
| Maximum Output Current | 1.08A | |
| Package Type | Open Frame | |
| Minimum Input Voltage | 85V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 30°C | |
| Length | 101.6mm | |
| Height | 32mm | |
| Standards/Approvals | EN62368‑1, EN60335‑1, CE, LPS & reinforced Class II insulation, EN60601‑1‑2, REACH & RoHS, EN55032 Class B EMC, CB, UL62368‑1 | |
| Series | RACM130E | |
| Minimum Output Voltage | 12V dc | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Maximum Input Voltage 264V ac | ||
Product Type AC/DC Converter | ||
Maximum Output Voltage 12V dc | ||
Output Power 130W | ||
Mount Type Chassis | ||
Maximum Output Current 1.08A | ||
Package Type Open Frame | ||
Minimum Input Voltage 85V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 30°C | ||
Length 101.6mm | ||
Height 32mm | ||
Standards/Approvals EN62368‑1, EN60335‑1, CE, LPS & reinforced Class II insulation, EN60601‑1‑2, REACH & RoHS, EN55032 Class B EMC, CB, UL62368‑1 | ||
Series RACM130E | ||
Minimum Output Voltage 12V dc | ||
Automotive Standard No | ||
The Recom AC/DC power supply provides up to 130W output to drive dynamic loads and is certified to safety standards for the medical, ITE, industrial and household markets. The input is wide-range for nominal and the output is tightly regulated.
Most versatile
Easy system integration
