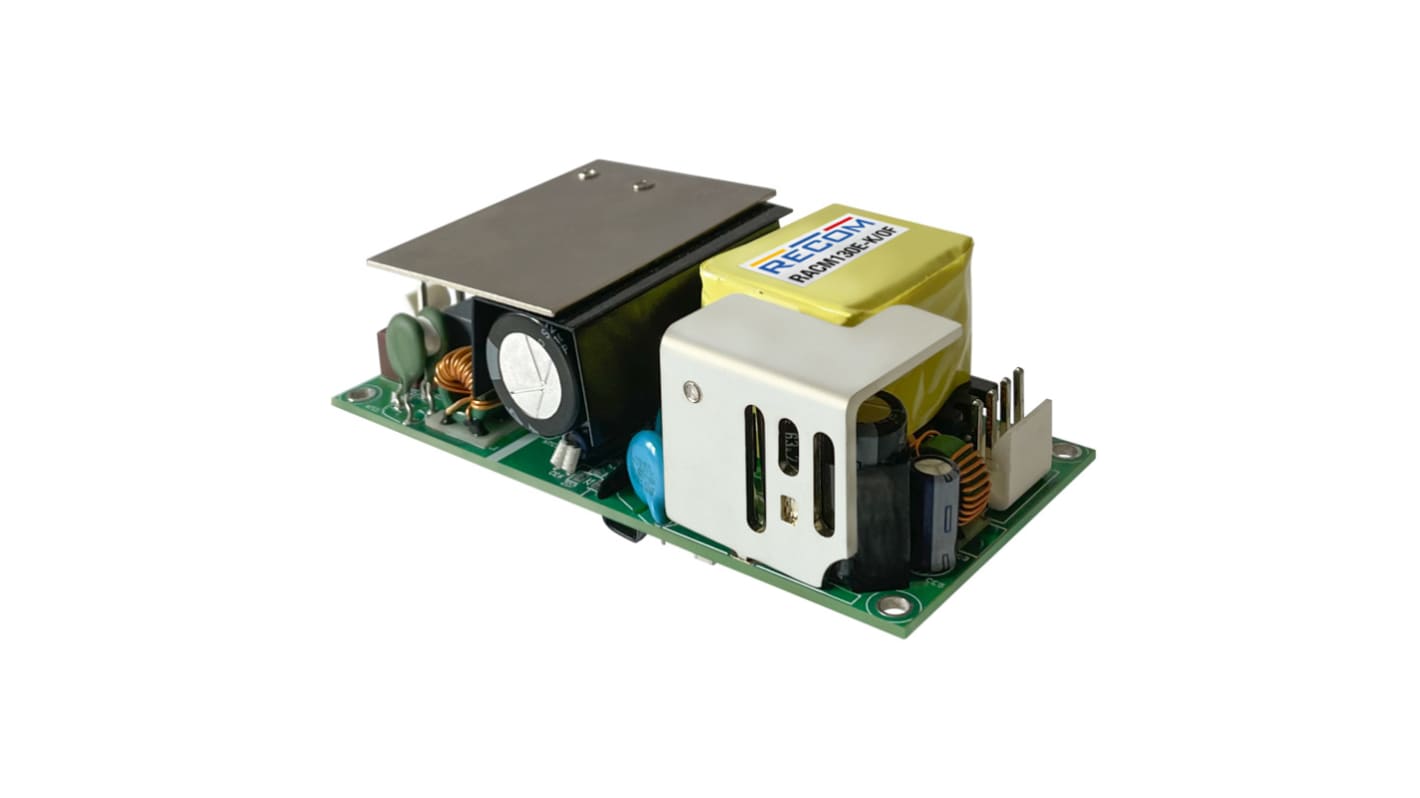

Recom, AC/DC Converter 5.42 A, 24V dc, 24 V dc, Open Frame RACM130E-24SK/OF
- RS Stock No.:
- 274-5356
- Mfr. Part No.:
- RACM130E-24SK/OF
- Brand:
- Recom
Get a bulk buy discount
Add 5 more to save £34.70
View bulk pricing optionsSubtotal (1 tray of 9 units)*
£231.33
(exc. VAT)
£277.60
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 11 May 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* | Saving |
|---|---|---|---|
| 1 - 4 | £231.33 | £25.703 | - |
| 5 - 9 | £224.39 | £24.932 | £34.70 |
| 10 - 24 | £217.45 | £24.161 | £138.80 |
| 25 - 49 | £210.51 | £23.39 | £520.50 |
| 50 + | £203.57 | £22.619 | £1,388.00 |
*price indicative
- RS Stock No.:
- 274-5356
- Mfr. Part No.:
- RACM130E-24SK/OF
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Product Type | AC/DC Converter | |
| Maximum Input Voltage | 264V ac | |
| Maximum Output Voltage | 24V dc | |
| Mount Type | Chassis | |
| Output Power | 130W | |
| Maximum Output Current | 5.42A | |
| Package Type | Open Frame | |
| Minimum Input Voltage | 85V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 50°C | |
| Height | 32mm | |
| Length | 50.8mm | |
| Standards/Approvals | UL62368‑1, EN60601‑1‑2, REACH & RoHS, EN62368‑1, EN60335‑1, LPS & reinforced Class II insulation, CB, EN55032 Class B EMC, CE | |
| Width | 101.6mm | |
| Series | RACM130E | |
| Automotive Standard | No | |
| Minimum Output Voltage | 24V dc | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Product Type AC/DC Converter | ||
Maximum Input Voltage 264V ac | ||
Maximum Output Voltage 24V dc | ||
Mount Type Chassis | ||
Output Power 130W | ||
Maximum Output Current 5.42A | ||
Package Type Open Frame | ||
Minimum Input Voltage 85V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 50°C | ||
Height 32mm | ||
Length 50.8mm | ||
Standards/Approvals UL62368‑1, EN60601‑1‑2, REACH & RoHS, EN62368‑1, EN60335‑1, LPS & reinforced Class II insulation, CB, EN55032 Class B EMC, CE | ||
Width 101.6mm | ||
Series RACM130E | ||
Automotive Standard No | ||
Minimum Output Voltage 24V dc | ||
- COO (Country of Origin):
- CN
The Recom AC/DC power supply provides up to 130W output to drive dynamic loads and is certified to safety standards for the medical, ITE, industrial and household markets. The input is wide-range for nominal and the output is tightly regulated.
Most versatile
Easy system integration
