Recom, AC/DC Converter 8.66 A, 15V dc, 15 V dc, Open Frame
- RS Stock No.:
- 274-5352
- Mfr. Part No.:
- RACM130E-15SK/OF
- Brand:
- Recom
Bulk discount available
View bulk pricing optionsSubtotal (1 tray of 9 units)*
£212.91
(exc. VAT)
£255.49
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 - 4 | £212.91 | £23.657 |
| 5 - 9 | £207.00 | £23.00 |
| 10 - 24 | £201.41 | £22.379 |
| 25 - 49 | £196.11 | £21.79 |
| 50 + | £191.08 | £21.231 |
*price indicative
- RS Stock No.:
- 274-5352
- Mfr. Part No.:
- RACM130E-15SK/OF
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Product Type | AC/DC Converter | |
| Maximum Input Voltage | 264V ac | |
| Maximum Output Voltage | 15V dc | |
| Output Power | 130W | |
| Mount Type | Chassis | |
| Maximum Output Current | 8.66A | |
| Package Type | Open Frame | |
| Minimum Input Voltage | 85V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 40°C | |
| Standards/Approvals | CB, EN62368‑1, EN60335‑1, LPS & reinforced Class II insulation, CE, EN60601‑1‑2, UL62368‑1, REACH & RoHS, EN55032 Class B EMC | |
| Width | 50.8mm | |
| Series | RACM130E | |
| Length | 101.6mm | |
| Height | 32mm | |
| Minimum Output Voltage | 15V dc | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Product Type AC/DC Converter | ||
Maximum Input Voltage 264V ac | ||
Maximum Output Voltage 15V dc | ||
Output Power 130W | ||
Mount Type Chassis | ||
Maximum Output Current 8.66A | ||
Package Type Open Frame | ||
Minimum Input Voltage 85V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 40°C | ||
Standards/Approvals CB, EN62368‑1, EN60335‑1, LPS & reinforced Class II insulation, CE, EN60601‑1‑2, UL62368‑1, REACH & RoHS, EN55032 Class B EMC | ||
Width 50.8mm | ||
Series RACM130E | ||
Length 101.6mm | ||
Height 32mm | ||
Minimum Output Voltage 15V dc | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN

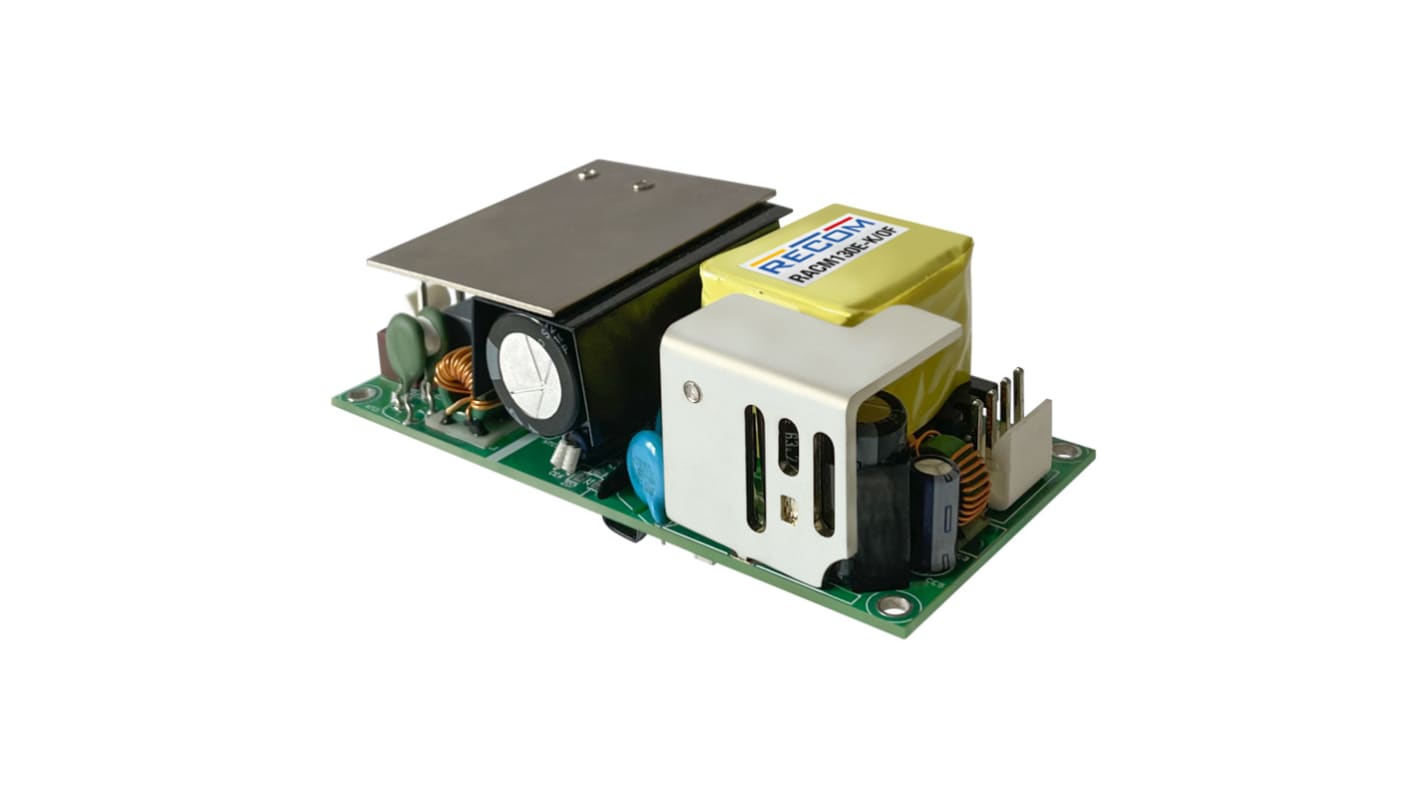

The Recom AC/DC power supply provides up to 130W output to drive dynamic loads and is certified to safety standards for the medical, ITE, industrial and household markets. The input is wide-range for nominal and the output is tightly regulated.
Most versatile
Easy system integration
