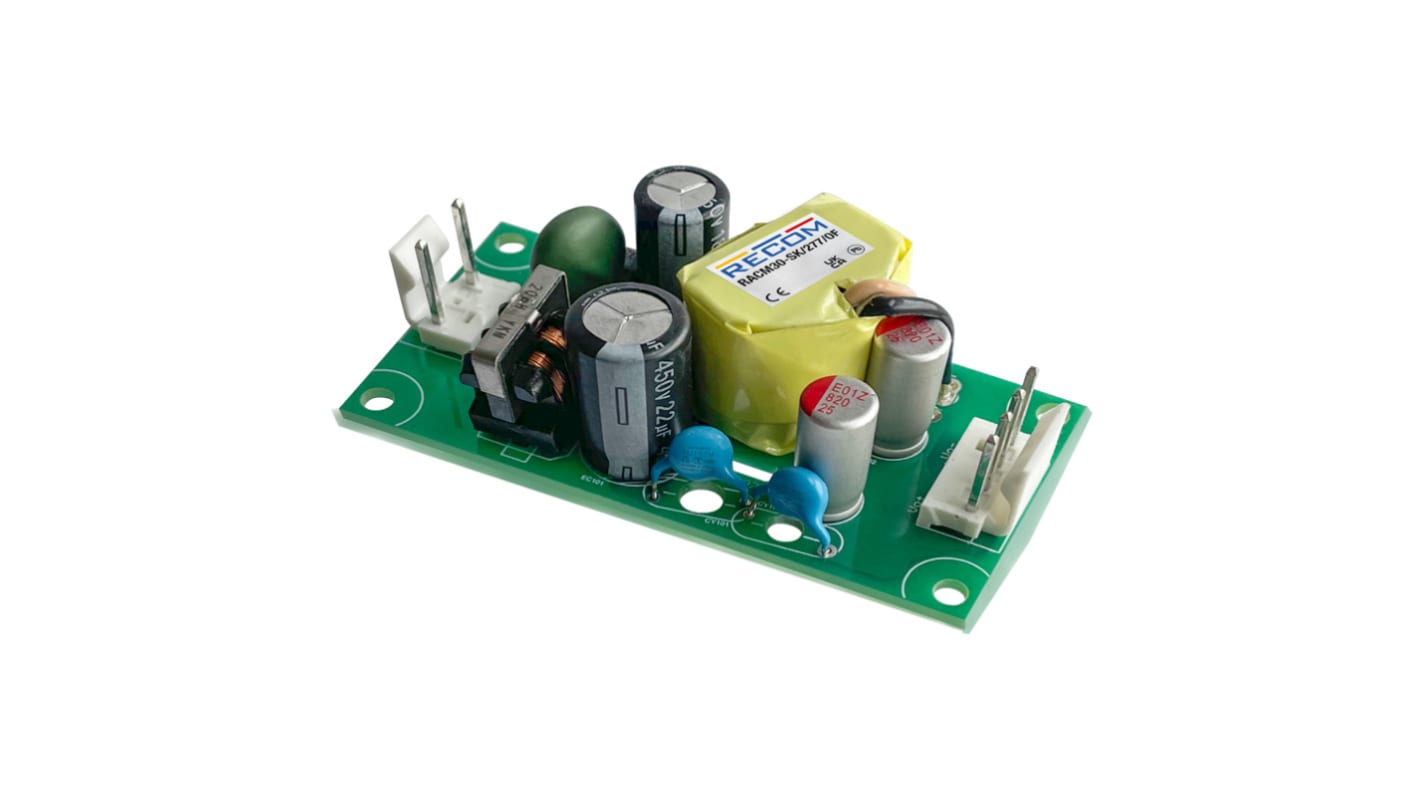

Recom, AC/DC Converter 2 A, 15 V dc, 15 V dc 3-Pin, Open Frame

View all AC-DC Converters

Subtotal (1 tray of 12 units)*

£142.60

(exc. VAT)

£171.12

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 02 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s)
Per Tray
Per unit*
1 +£142.60£11.883

*price indicative

RS Stock No.:
274-3479
Mfr. Part No.:
RACM30-15SK/277/OF
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Maximum Input Voltage

305V dc

Product Type

AC/DC Converter

Maximum Output Voltage

15V dc

Mount Type

Panel

Output Power

30W

Switching Frequency

100kHz

Pin Count

3

Maximum Output Current

2A

Package Type

Open Frame

Minimum Input Voltage

85V ac

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

60°C

Length

76.2mm

Series

RACM30

Standards/Approvals

CAN/CSA-C22.2 No. 60601-1, EN60601-1, EN62233, EN IEC 61204-3, EN61558-1, EN60335-1, EN55032 Class B, RoHS2, EN62368-1, EN61010-1, IEC61010-1, EN61000-4-2/3/4/5/6/8/11, EN55014-1/2, ANSI/AAMI ES60601-1, IEC62368-1, IEC61558-1, EN55035

Height

25mm

Minimum Output Current

2000mA

Supply Current

650mA

Minimum Output Voltage

15V dc

RoHS Status: Not Applicable

The Recom AC/DC module provide a leading thermally effective power yield of 9.2 Watts per inch³ at 60°C still air for continuous loads of 30 Watts plus additional peak capability. These Modules operate in a temperature range of -40° to 90°C in compliance with safety standards of medical MOPP,household, industrial, and measurement markets.

3 years warranty

Reduced load rating to 90 degree Celsius

Meets EN55032 B in PELV configuration
