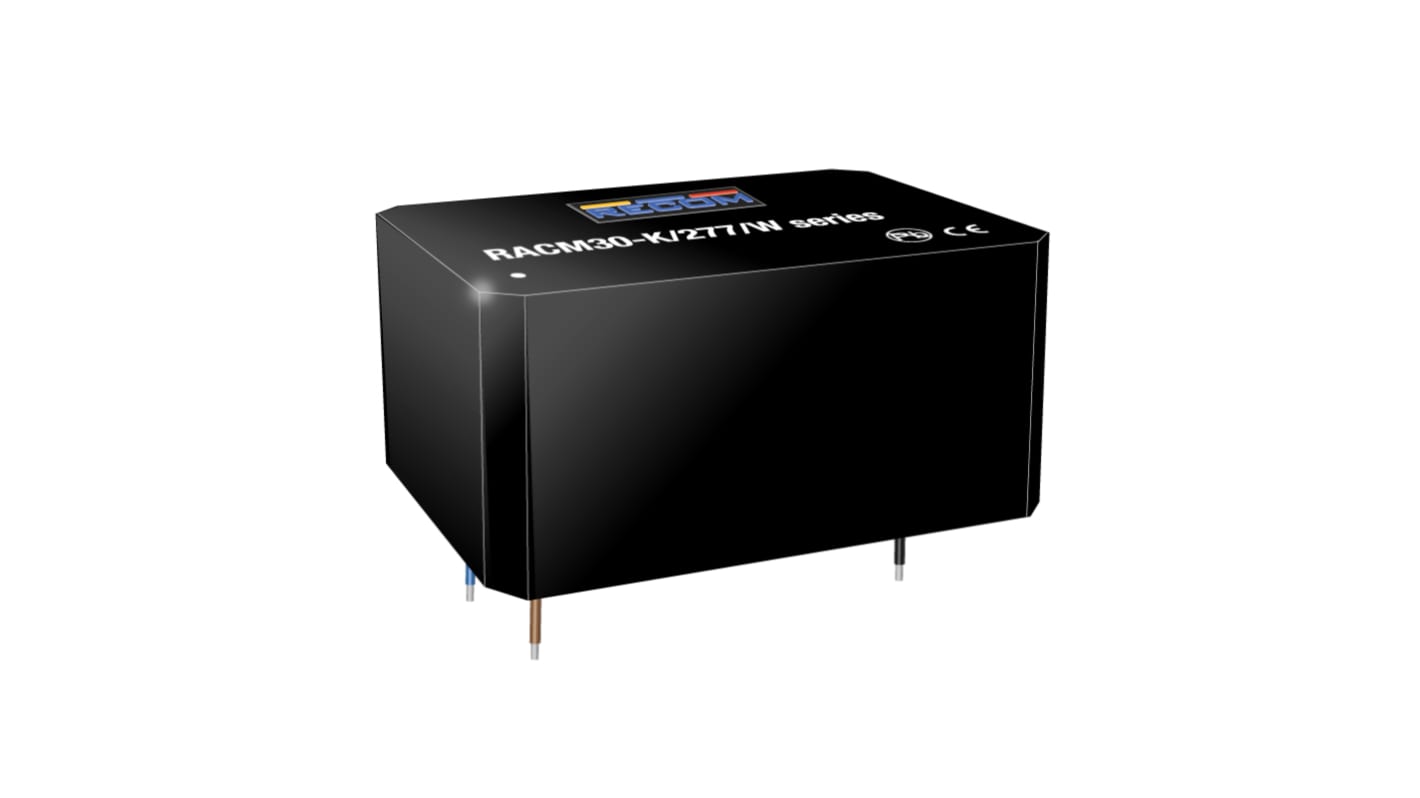

Recom, AC/DC Converter 2 A, 15V dc, 15 V dc, Potted
- RS Stock No.:
- 274-5384
- Mfr. Part No.:
- RACM30-15SK/277/W
- Brand:
- Recom
Bulk discount available
Subtotal (1 tray of 24 units)*
£343.94
(exc. VAT)
£412.73
(inc. VAT)
Stock information currently inaccessible - Please check back later
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 - 3 | £343.94 | £14.331 |
| 4 - 7 | £326.05 | £13.585 |
| 8 + | £309.20 | £12.883 |
*price indicative
- RS Stock No.:
- 274-5384
- Mfr. Part No.:
- RACM30-15SK/277/W
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Product Type | AC/DC Converter | |
| Maximum Input Voltage | 305V ac | |
| Maximum Output Voltage | 15V dc | |
| Mount Type | Through Hole | |
| Output Power | 30W | |
| Maximum Output Current | 2A | |
| Package Type | Potted | |
| Minimum Input Voltage | 85V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 60°C | |
| Height | 25.5mm | |
| Standards/Approvals | CB, EN55032 Class B EMC, EN60335‑1, REACH & RoHS, LPS & reinforced Class II insulation, EN60601‑1‑2, UL62368‑1, CE, EN62368‑1 | |
| Series | RACM30 | |
| Length | 52.5mm | |
| Minimum Output Voltage | 15V dc | |
| Automotive Standard | No | |
| Minimum Output Current | 2000mA | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Product Type AC/DC Converter | ||
Maximum Input Voltage 305V ac | ||
Maximum Output Voltage 15V dc | ||
Mount Type Through Hole | ||
Output Power 30W | ||
Maximum Output Current 2A | ||
Package Type Potted | ||
Minimum Input Voltage 85V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 60°C | ||
Height 25.5mm | ||
Standards/Approvals CB, EN55032 Class B EMC, EN60335‑1, REACH & RoHS, LPS & reinforced Class II insulation, EN60601‑1‑2, UL62368‑1, CE, EN62368‑1 | ||
Series RACM30 | ||
Length 52.5mm | ||
Minimum Output Voltage 15V dc | ||
Automotive Standard No | ||
Minimum Output Current 2000mA | ||
The Recom AC/DC Converter provide a leading thermally effective Power yield of 9.2 Watts for continuous loads of 30 Watts plus additional peak capability. It provides ease system implementation for quick time-to-market without additional external circuitr
Maximum flexibility
LPS limited power source
