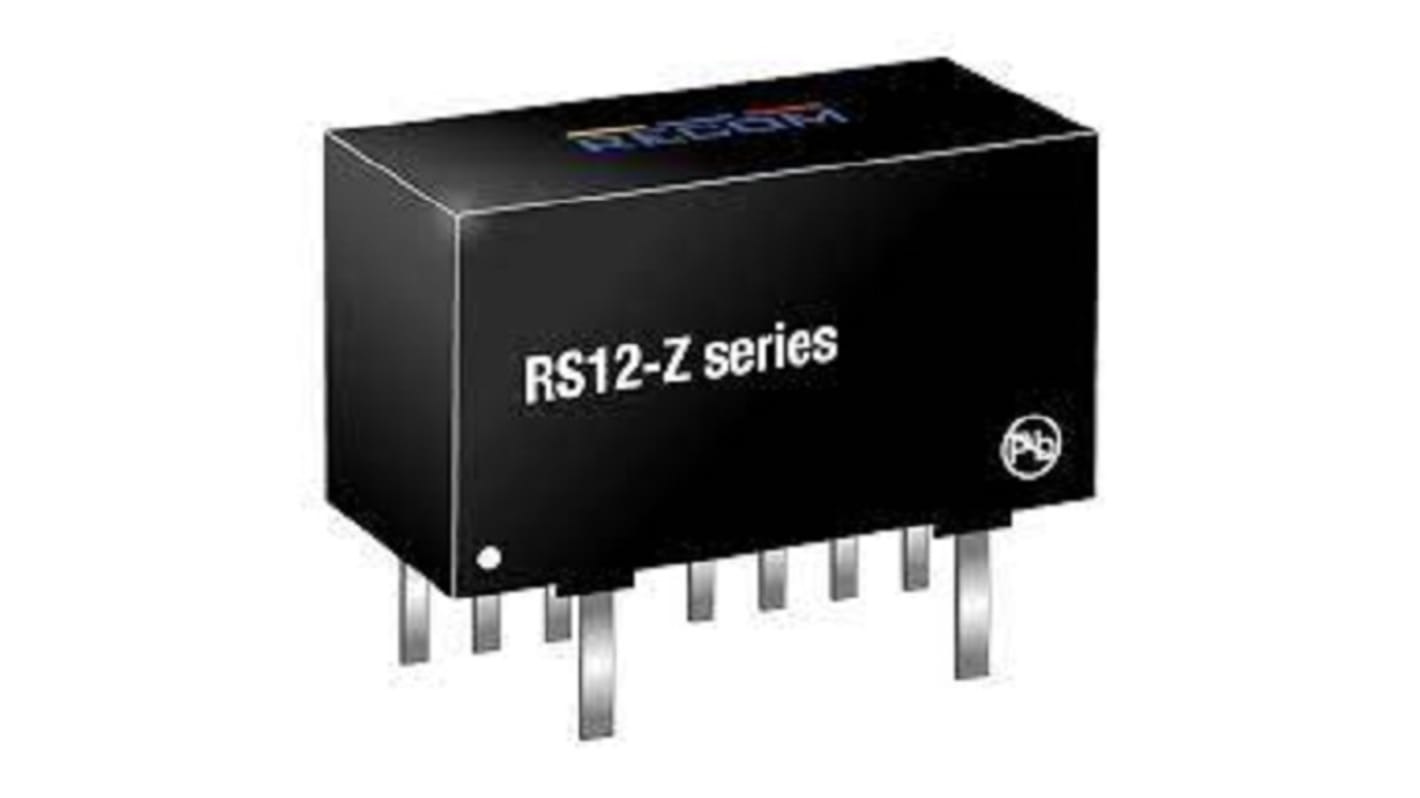

Recom, AC/DC Converter 0 mA, 16.5V, 15 V 8-Pin RS12-2415SZ
- RS Stock No.:
- 249-8871
- Mfr. Part No.:
- RS12-2415SZ
- Brand:
- Recom
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 22 units)*
£749.09
(exc. VAT)
£898.91
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 27 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £749.09 | £34.05 |
| 5 - 9 | £726.61 | £33.028 |
| 10 - 24 | £704.66 | £32.03 |
| 25 - 49 | £686.12 | £31.187 |
| 50 + | £668.53 | £30.388 |
*price indicative
- RS Stock No.:
- 249-8871
- Mfr. Part No.:
- RS12-2415SZ
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Maximum Input Voltage | 36V | |
| Product Type | AC/DC Converter | |
| Maximum Output Voltage | 16.5V | |
| Mount Type | Through Hole | |
| Pin Count | 8 | |
| Switching Frequency | 500kHz | |
| Maximum Output Current | 0mA | |
| Minimum Input Voltage | 9V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 75°C | |
| Series | RS12-Z | |
| Standards/Approvals | REACH, CSA/CAN No. 62368-1, CB Report, UL62368-1, IEC/EN62368-1, RoHS2+ | |
| Width | 12.1mm | |
| Height | 9.6mm | |
| Length | 21.8mm | |
| Supply Current | 580mA | |
| Automotive Standard | No | |
| Minimum Output Voltage | 15V | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Maximum Input Voltage 36V | ||
Product Type AC/DC Converter | ||
Maximum Output Voltage 16.5V | ||
Mount Type Through Hole | ||
Pin Count 8 | ||
Switching Frequency 500kHz | ||
Maximum Output Current 0mA | ||
Minimum Input Voltage 9V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 75°C | ||
Series RS12-Z | ||
Standards/Approvals REACH, CSA/CAN No. 62368-1, CB Report, UL62368-1, IEC/EN62368-1, RoHS2+ | ||
Width 12.1mm | ||
Height 9.6mm | ||
Length 21.8mm | ||
Supply Current 580mA | ||
Automotive Standard No | ||
Minimum Output Voltage 15V | ||
- COO (Country of Origin):
- TW
The Recom makes advanced DC to DC converter that uses planar transformer technology to offer a very high power density. The additional features included in power supply are UVLO, CTRL pin, trimmable outputs and simple EMC filtering round off this versatile DC/DC converter.
It provides 4:1 input voltage
Temperature range of -40°C to +75°C
regulated DC output with 3kVDC isolation
Continuous short -circuit protection
Dimensions are 21.8 x 12.1x 9.6mm
