Recom, AC/DC Converter 2.5 A, 15V, 15 V 8-Pin, SIP
- RS Stock No.:
- 249-8826
- Mfr. Part No.:
- RAC10E-15SK/277
- Brand:
- Recom
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£8.67
(exc. VAT)
£10.40
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £8.67 |
| 5 - 9 | £8.41 |
| 10 - 24 | £8.15 |
| 25 - 49 | £7.88 |
| 50 + | £7.63 |
*price indicative
- RS Stock No.:
- 249-8826
- Mfr. Part No.:
- RAC10E-15SK/277
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Maximum Input Voltage | 305V | |
| Product Type | AC/DC Converter | |
| Maximum Output Voltage | 15V | |
| Mount Type | Through Hole | |
| Pin Count | 8 | |
| Switching Frequency | 80kHz | |
| Maximum Output Current | 2.5A | |
| Package Type | SIP | |
| Minimum Input Voltage | 85V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 65°C | |
| Series | RAC10E-K | |
| Length | 45.7mm | |
| Standards/Approvals | RoHS 2, REACH, UL 62368-1, EN 55032, CE, CB, EN 60601-1-2, EN 62368-1 | |
| Width | 25.4mm | |
| Height | 21.5mm | |
| Minimum Output Voltage | 15V | |
| Minimum Output Current | 666mA | |
| Automotive Standard | No | |
| Supply Current | 200mA | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Maximum Input Voltage 305V | ||
Product Type AC/DC Converter | ||
Maximum Output Voltage 15V | ||
Mount Type Through Hole | ||
Pin Count 8 | ||
Switching Frequency 80kHz | ||
Maximum Output Current 2.5A | ||
Package Type SIP | ||
Minimum Input Voltage 85V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 65°C | ||
Series RAC10E-K | ||
Length 45.7mm | ||
Standards/Approvals RoHS 2, REACH, UL 62368-1, EN 55032, CE, CB, EN 60601-1-2, EN 62368-1 | ||
Width 25.4mm | ||
Height 21.5mm | ||
Minimum Output Voltage 15V | ||
Minimum Output Current 666mA | ||
Automotive Standard No | ||
Supply Current 200mA | ||

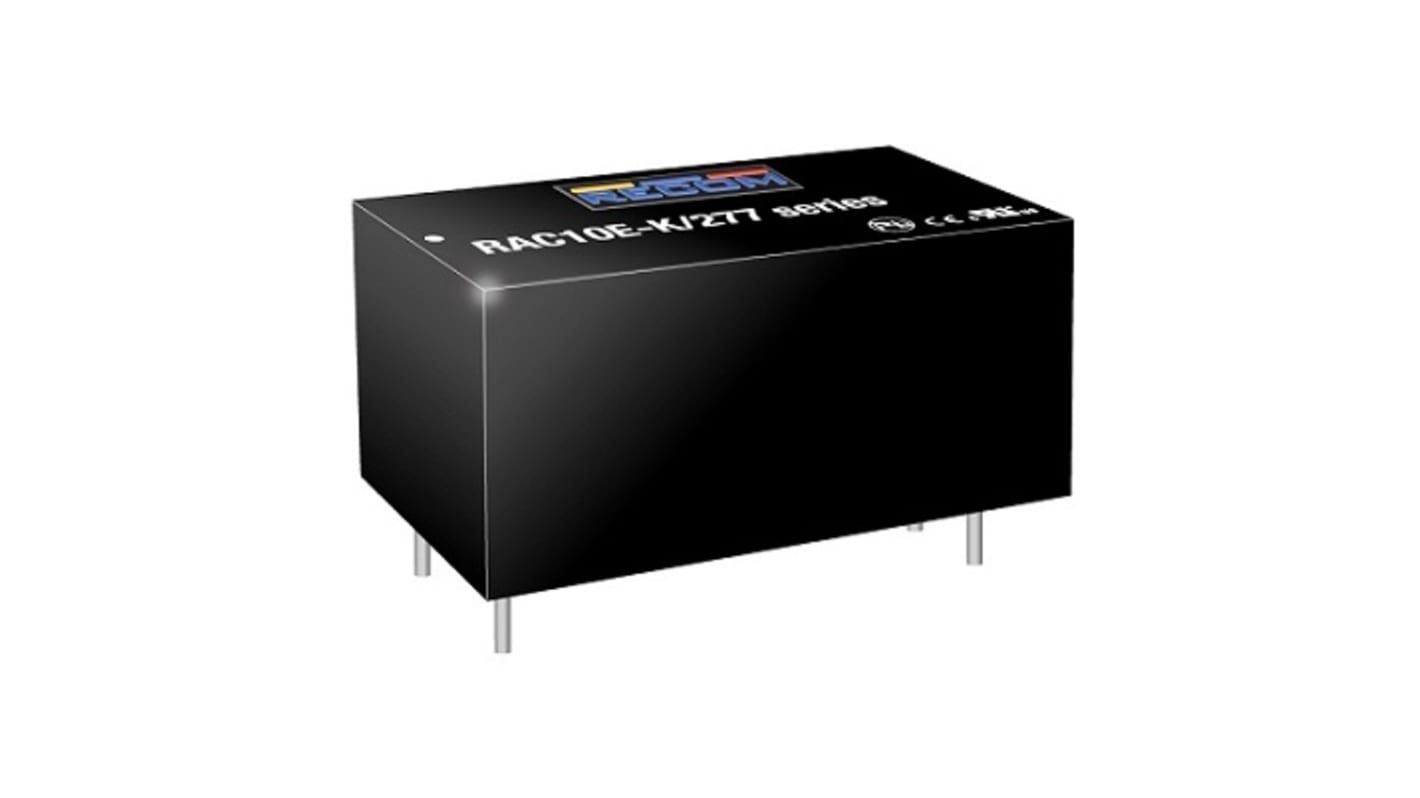

RECOM AC-DC Converter, SIP Package, 8 Pins - RAC10E-K Series - RAC10E-15SK/277
Push past power issues with this AC-DC converter from RECOM. It takes AC voltages and outputs a steady supply up to 15V DC, giving appliances the power they need to keep working without a hitch. Since it can handle inputs between 85 and 305V AC, this unit's a go-to choice for adapting standard power supplies. You can start up your application in a flash thanks to this converter's quick 50ms activation time. As it's protected against high EMI levels, this is a safe option for environments where disruption from electrical noise can be a problem.
Features & Benefits
• Simple through-hole mounting for speedy installation
• Converts 83% of voltage inputs, dialling down on power loss to make for an energy-efficient supply
• Comes with built-in overvoltage, overcurrent and short-circuit protection that automatically resets after faults, minimising downtime
• Insulating plastic and silicone body to cut exposure to dangerous electrical loads
Applications
• Portable equipment
• Retail units
• Logistics industry
How precise are the output voltages from this AC-DC converter?
This product has an output accuracy of ±2%, so you can rest assured it's a consistent performer.
