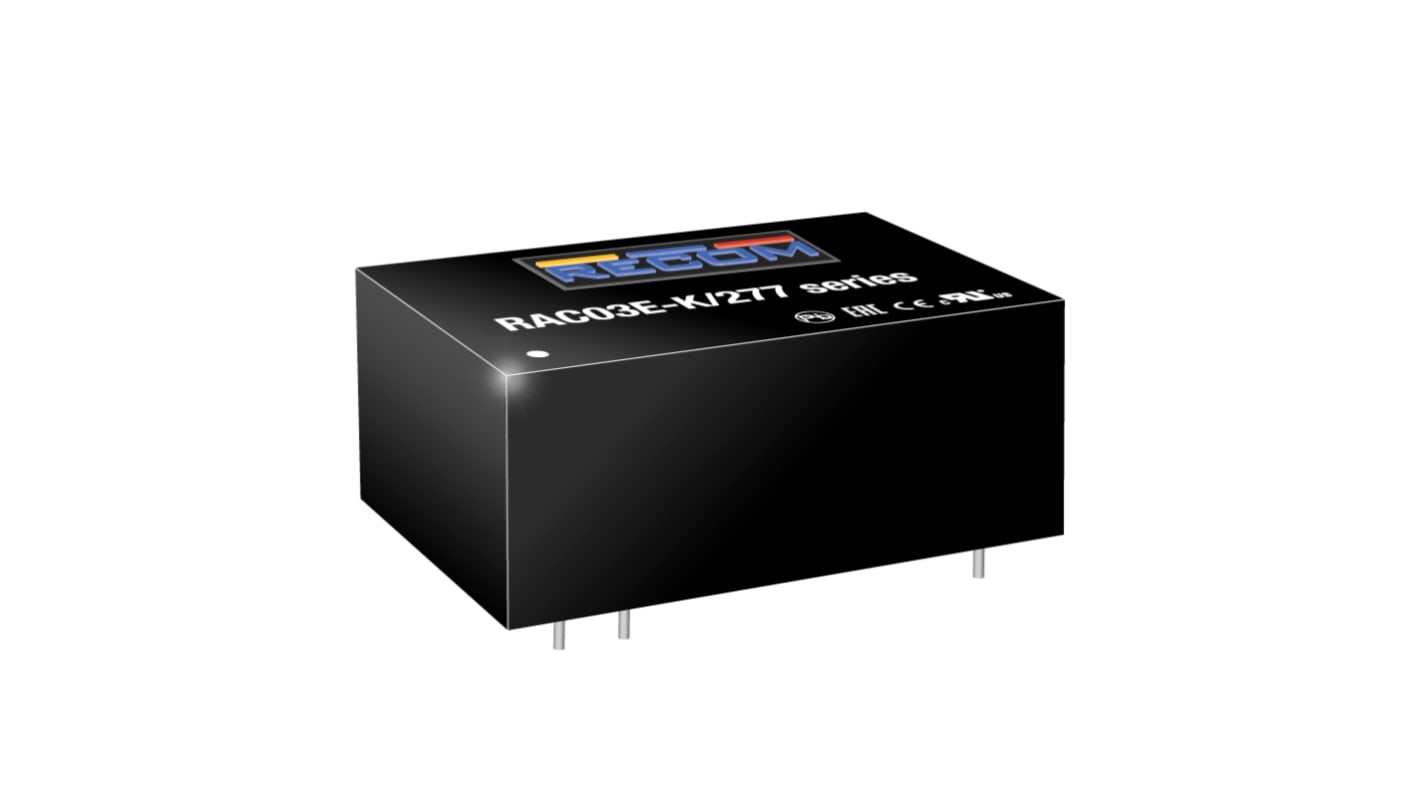

Recom, AC/DC Converter 200 mA, 15V dc, 15 V dc 5-Pin, 1.45 x 0.95 in
- RS Stock No.:
- 274-5211
- Mfr. Part No.:
- RAC03E-15SK/277
- Brand:
- Recom
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 12 units)*
£65.10
(exc. VAT)
£78.12
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £65.10 | £5.425 |
| 5 - 9 | £63.29 | £5.274 |
| 10 - 24 | £61.58 | £5.132 |
| 25 - 49 | £59.96 | £4.997 |
| 50 + | £58.42 | £4.868 |
*price indicative
- RS Stock No.:
- 274-5211
- Mfr. Part No.:
- RAC03E-15SK/277
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Maximum Input Voltage | 305V ac | |
| Product Type | AC/DC Converter | |
| Maximum Output Voltage | 15V dc | |
| Mount Type | Through Hole | |
| Output Power | 3W | |
| Pin Count | 5 | |
| Maximum Output Current | 200mA | |
| Package Type | 1.45 x 0.95 in | |
| Minimum Input Voltage | 85V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | CB, EN60601‑1‑2, UL62368‑1, LPS & reinforced Class II insulation, CE, EN60335‑1, REACH & RoHS, EN55032 Class B EMC, EN62368‑1 | |
| Width | 23mm | |
| Height | 15.4mm | |
| Series | RAC03E | |
| Length | 37mm | |
| Minimum Output Current | 200mA | |
| Minimum Output Voltage | 15V dc | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Maximum Input Voltage 305V ac | ||
Product Type AC/DC Converter | ||
Maximum Output Voltage 15V dc | ||
Mount Type Through Hole | ||
Output Power 3W | ||
Pin Count 5 | ||
Maximum Output Current 200mA | ||
Package Type 1.45 x 0.95 in | ||
Minimum Input Voltage 85V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals CB, EN60601‑1‑2, UL62368‑1, LPS & reinforced Class II insulation, CE, EN60335‑1, REACH & RoHS, EN55032 Class B EMC, EN62368‑1 | ||
Width 23mm | ||
Height 15.4mm | ||
Series RAC03E | ||
Length 37mm | ||
Minimum Output Current 200mA | ||
Minimum Output Voltage 15V dc | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The Recom AC/DC Converter delivers an uncompromising 3 watts of output power with tightly regulated outputs. It is a encapsulated print-mountable module in an industry-standard which pinout deliver full output power. It holds international safety certific
Low profile
Easy to use
