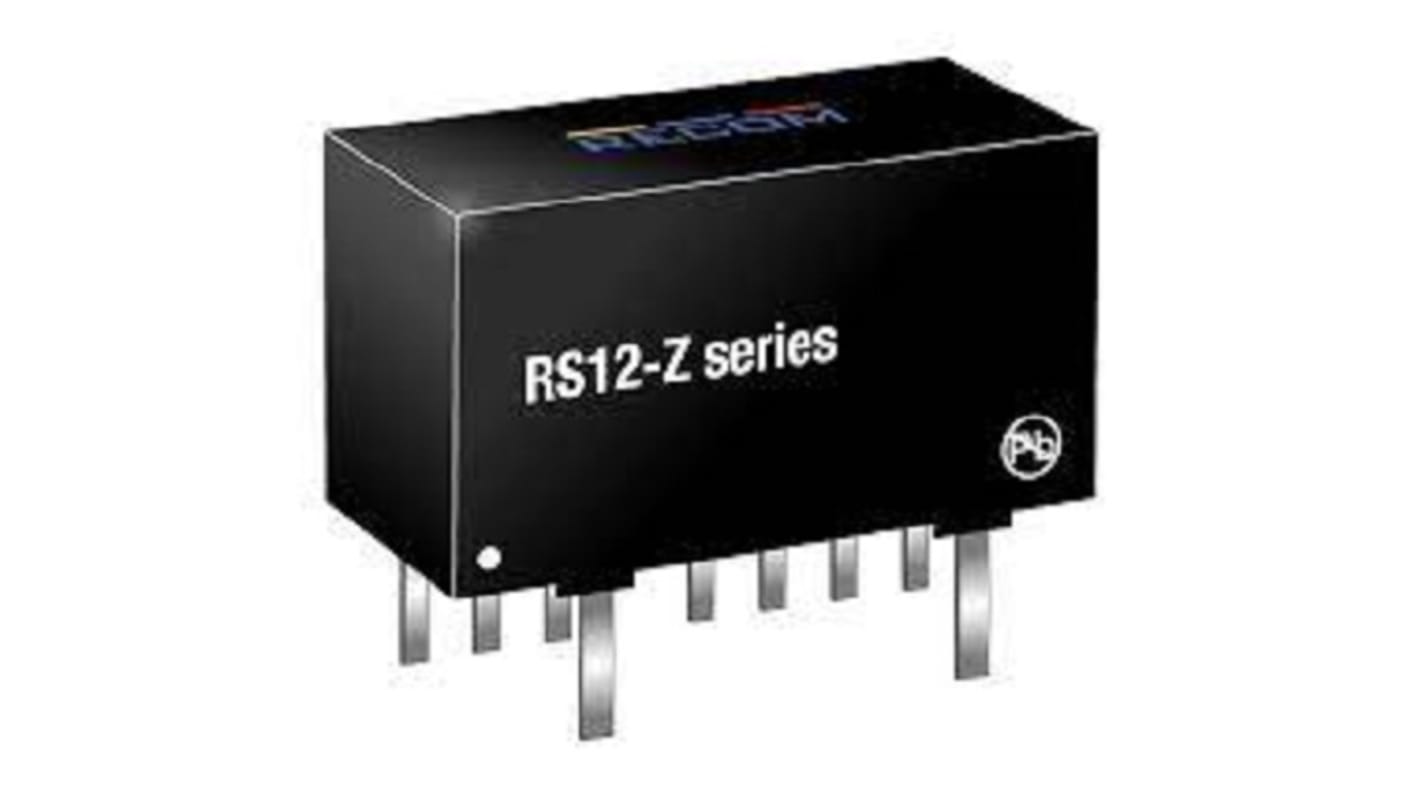

Recom, AC-DC Converter 8-Pin, SIP RS12-2412SZ
- RS Stock No.:
- 249-8868
- Mfr. Part No.:
- RS12-2412SZ
- Brand:
- Recom
Bulk discount available
Subtotal (1 tube of 22 units)*
£611.96
(exc. VAT)
£734.35
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £611.96 | £27.816 |
| 5 - 9 | £593.62 | £26.983 |
| 10 - 24 | £575.26 | £26.148 |
| 25 - 49 | £556.89 | £25.313 |
| 50 + | £538.54 | £24.479 |
*price indicative
- RS Stock No.:
- 249-8868
- Mfr. Part No.:
- RS12-2412SZ
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Maximum Input Voltage | 36V | |
| Maximum Output Voltage | 13.2V | |
| Mounting Type | Through Hole | |
| Pin Count | 8 | |
| Dimensions | 21.8 x 12.1x 9.6mm | |
| Package Type | SIP | |
| Current Limit | 7mA | |
Select all | ||
|---|---|---|
Brand Recom | ||
Maximum Input Voltage 36V | ||
Maximum Output Voltage 13.2V | ||
Mounting Type Through Hole | ||
Pin Count 8 | ||
Dimensions 21.8 x 12.1x 9.6mm | ||
Package Type SIP | ||
Current Limit 7mA | ||
- COO (Country of Origin):
- TW
The Recom RS12 is an advanced DC to DC converter that uses planar transformer technology to offer a very high power density. The additional features included in power supply are UVLO, CTRL pin, trimmable outputs and simple EMC filtering round off this versatile DC/DC converter.
It provides 4:1 input voltage
Temperature range of -40°C to +75°C
regulated DC output with 3kVDC isolation
Continuous short -circuit protection
Dimensions are 21.8 x 12.1x 9.6mm
Temperature range of -40°C to +75°C
regulated DC output with 3kVDC isolation
Continuous short -circuit protection
Dimensions are 21.8 x 12.1x 9.6mm
