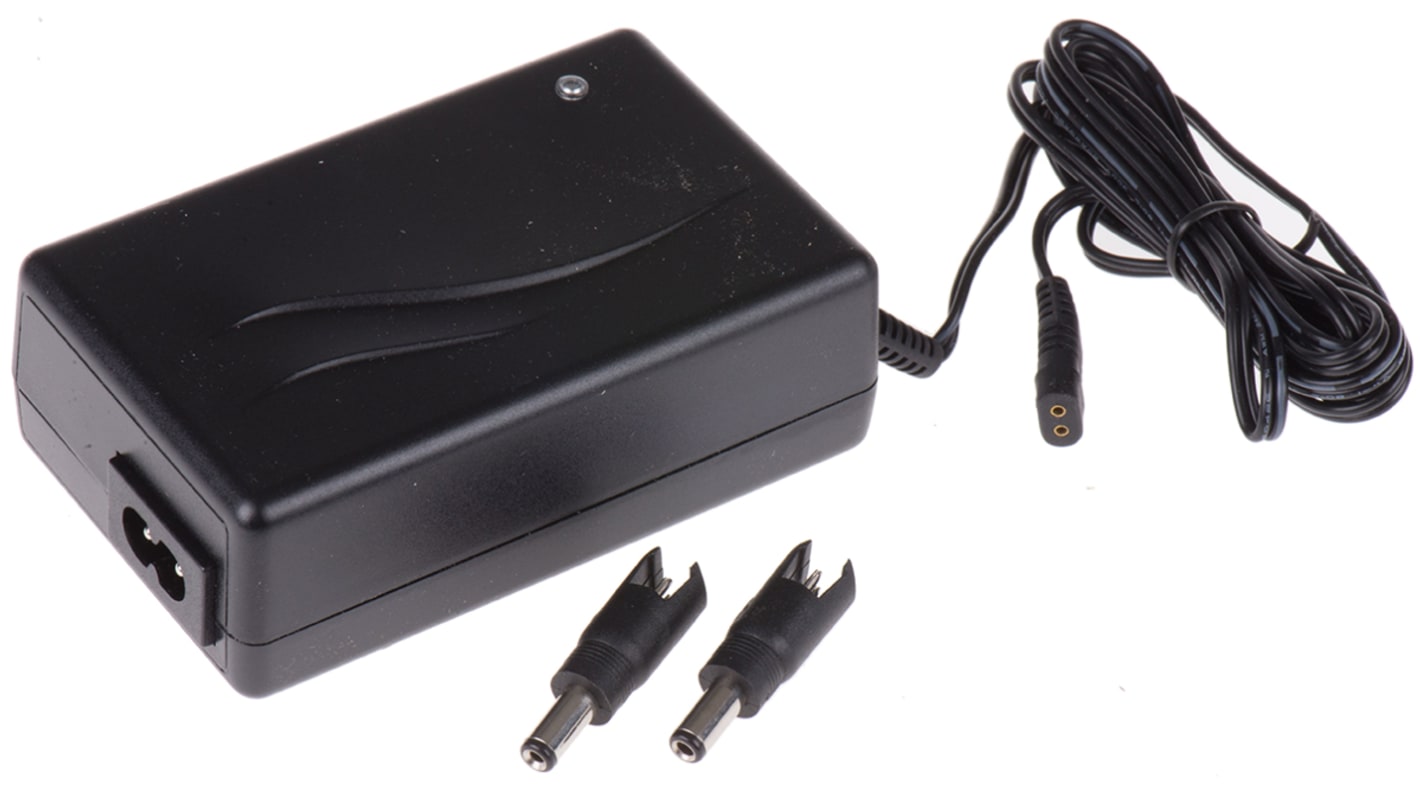

Mascot 40W Power Brick AC/DC Adapter 24V dc Output, 1.6A Output
- RS Stock No.:
- 423-7925
- Mfr. Part No.:
- 9921000056
- Brand:
- Mascot
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£56.85
(exc. VAT)
£68.22
(inc. VAT)
- RS Stock No.:
- 423-7925
- Mfr. Part No.:
- 9921000056
- Brand:
- Mascot
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Mascot | |
| Adapter Type | Power Brick Adapter | |
| Plug Type | 2-Pin IEC | |
| Output Voltage | 24V dc | |
| Input Voltage | 100 → 240V ac | |
| Output Current | 1.6A | |
| Maximum Temperature | +40°C | |
| Output Connector | 2.1 x 5.5 x 12 mm Female Coaxial Plug with Snap-Lock, 2.5 x 5.5 x 12 mm Female Coaxial Plug with Snap-Lock | |
| Input Connector | IEC 320 | |
| Number of Outputs | 1 | |
| Power Rating | 40W | |
| Cable Length | 1800mm | |
| Medical Approved | Yes | |
| MTBF | 100000h | |
| Efficiency | 85% | |
| Width | 67mm | |
| Line Regulation Range | ±0.5% | |
| Load Regulation | ±1% | |
| Minimum Temperature | -20°C | |
| Depth | 36.5mm | |
| Length | 107mm | |
Select all | ||
|---|---|---|
Brand Mascot | ||
Adapter Type Power Brick Adapter | ||
Plug Type 2-Pin IEC | ||
Output Voltage 24V dc | ||
Input Voltage 100 → 240V ac | ||
Output Current 1.6A | ||
Maximum Temperature +40°C | ||
Output Connector 2.1 x 5.5 x 12 mm Female Coaxial Plug with Snap-Lock, 2.5 x 5.5 x 12 mm Female Coaxial Plug with Snap-Lock | ||
Input Connector IEC 320 | ||
Number of Outputs 1 | ||
Power Rating 40W | ||
Cable Length 1800mm | ||
Medical Approved Yes | ||
MTBF 100000h | ||
Efficiency 85% | ||
Width 67mm | ||
Line Regulation Range ±0.5% | ||
Load Regulation ±1% | ||
Minimum Temperature -20°C | ||
Depth 36.5mm | ||
Length 107mm | ||
