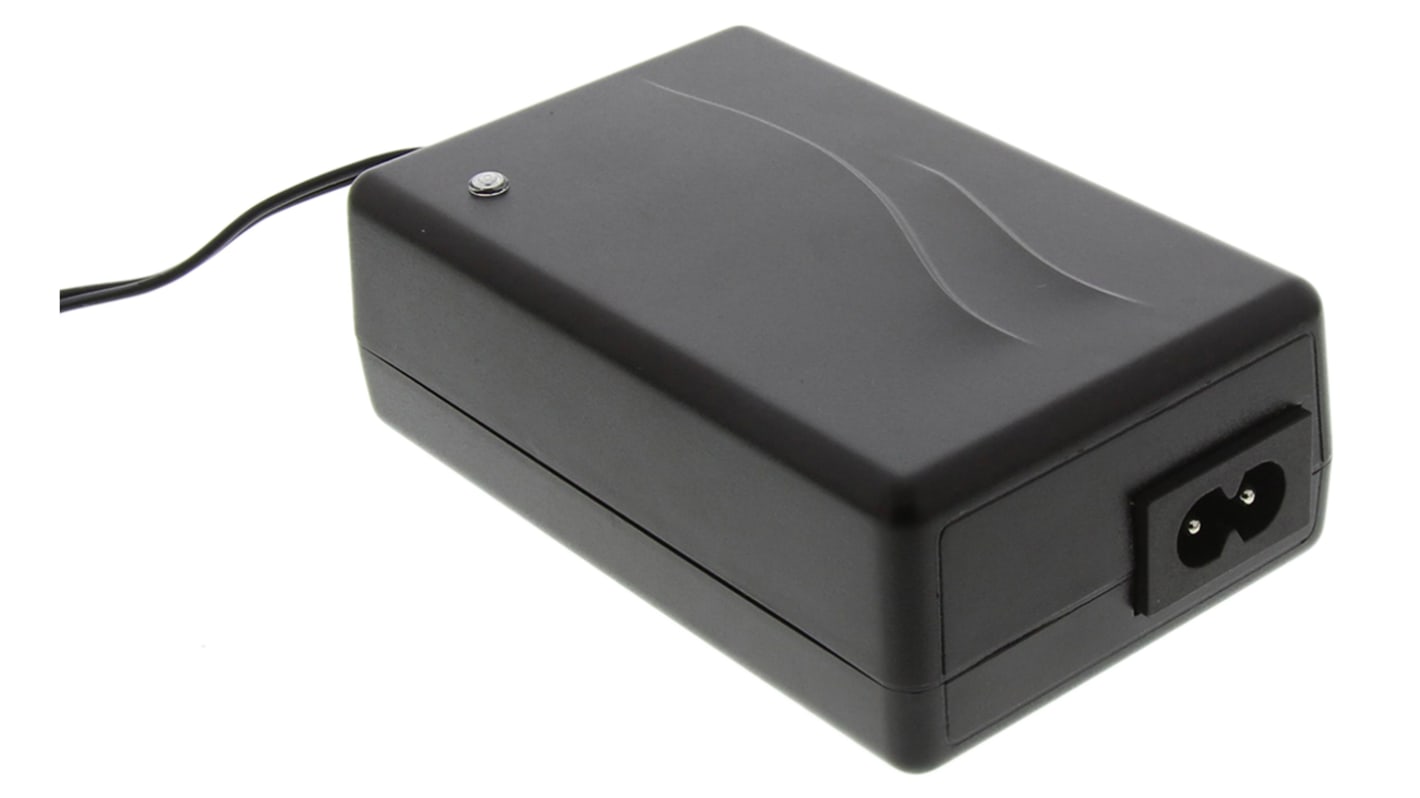

Mascot 40W Power Brick AC/DC Adapter 12V dc Output, 3A Output
- RS Stock No.:
- 423-7919
- Mfr. Part No.:
- 9921000055
- Brand:
- Mascot
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 423-7919
- Mfr. Part No.:
- 9921000055
- Brand:
- Mascot
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Mascot | |
Adapter Type | Power Brick Adapter | |
Plug Type | 2-Pin IEC | |
Output Voltage | 12V dc | |
Input Voltage | 100 → 240V ac | |
Output Current | 3A | |
Maximum Temperature | +40°C | |
Output Connector | 2.1 x 5.5 x 12 mm Female Coaxial Plug with Snap-Lock, 2.5 x 5.5 x 12 mm Female Coaxial Plug with Snap-Lock | |
Input Connector | IEC 320 | |
Number of Outputs | 1 | |
Power Rating | 40W | |
Cable Length | 1800mm | |
Medical Approved | Yes | |
MTBF | 100000h | |
Efficiency | 85% | |
Width | 67mm | |
Line Regulation Range | ±0.5% | |
Load Regulation | ±1% | |
Length | 107mm | |
Depth | 36.5mm | |
Minimum Temperature | -20°C | |
Select all | ||
---|---|---|
Brand Mascot | ||
Adapter Type Power Brick Adapter | ||
Plug Type 2-Pin IEC | ||
Output Voltage 12V dc | ||
Input Voltage 100 → 240V ac | ||
Output Current 3A | ||
Maximum Temperature +40°C | ||
Output Connector 2.1 x 5.5 x 12 mm Female Coaxial Plug with Snap-Lock, 2.5 x 5.5 x 12 mm Female Coaxial Plug with Snap-Lock | ||
Input Connector IEC 320 | ||
Number of Outputs 1 | ||
Power Rating 40W | ||
Cable Length 1800mm | ||
Medical Approved Yes | ||
MTBF 100000h | ||
Efficiency 85% | ||
Width 67mm | ||
Line Regulation Range ±0.5% | ||
Load Regulation ±1% | ||
Length 107mm | ||
Depth 36.5mm | ||
Minimum Temperature -20°C | ||
- COO (Country of Origin):
- NO
Mascot 9W to 60W Medical Approved Single Output Switch Mode Desktop Power Supply
Medically approved (EN 60601) external switch mode power supplies
High efficiency
Fully regulated output
Over voltage and short circuit protection
Isolation 4kV input/output
EMC immunity to EN 50082-1, medical EN 60601-1-2
1.8m (approx.) output lead with polarity inverter
2-pin or 3-pin IEC320 input connection
High efficiency
Fully regulated output
Over voltage and short circuit protection
Isolation 4kV input/output
EMC immunity to EN 50082-1, medical EN 60601-1-2
1.8m (approx.) output lead with polarity inverter
2-pin or 3-pin IEC320 input connection
Note
Non Compliant For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
Standards
EN 60950 EN 60601 (UL 2601-1)
Approvals
UL recognised component for Canada and US (12 & 24V only)
Supplied with
2 loose connectors with snap-lock feature, allowing 4 connection options, 2.1x5.5x12mm and 2.5x5.5x12mm female co-ax plugs.
