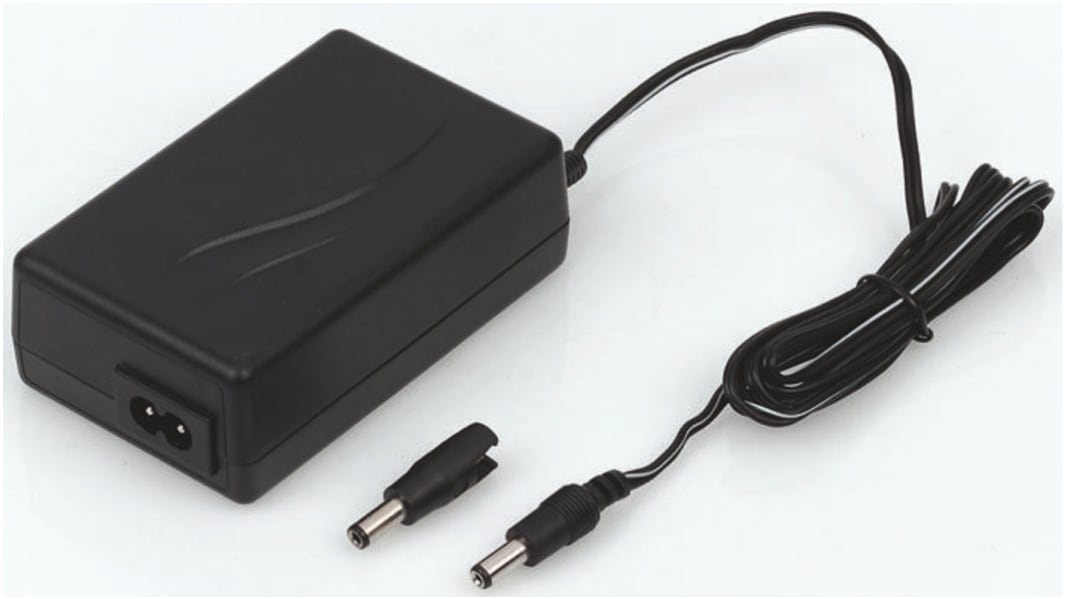

Mascot 40W Power Brick AC/DC Adapter 9V dc Output, 3A Output
- RS Stock No.:
- 423-7896
- Mfr. Part No.:
- 9921000054
- Brand:
- Mascot
Image representative of range
Bulk discount available
Subtotal (1 unit)*
£56.76
(exc. VAT)
£68.11
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £56.76 |
5 - 9 | £55.05 |
10 - 24 | £53.35 |
25 - 49 | £51.65 |
50 + | £49.94 |
*price indicative
- RS Stock No.:
- 423-7896
- Mfr. Part No.:
- 9921000054
- Brand:
- Mascot
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Mascot | |
Adapter Type | Power Brick Adapter | |
Plug Type | 2-Pin IEC | |
Output Voltage | 9V dc | |
Input Voltage | 100 → 240V ac | |
Output Current | 3A | |
Maximum Temperature | +40°C | |
Output Connector | 2.1 x 5.5 x 12 mm Female Coaxial Plug with Snap-Lock, 2.5 x 5.5 x 12 mm Female Coaxial Plug with Snap-Lock | |
Input Connector | IEC 320 | |
Number of Outputs | 1 | |
Power Rating | 40W | |
Cable Length | 1800mm | |
Medical Approved | Yes | |
Efficiency | 85% | |
MTBF | 100000h | |
Depth | 36.5mm | |
Width | 67mm | |
Length | 107mm | |
Load Regulation | ±1% | |
Line Regulation Range | ±0.5% | |
Minimum Temperature | -20°C | |
Select all | ||
---|---|---|
Brand Mascot | ||
Adapter Type Power Brick Adapter | ||
Plug Type 2-Pin IEC | ||
Output Voltage 9V dc | ||
Input Voltage 100 → 240V ac | ||
Output Current 3A | ||
Maximum Temperature +40°C | ||
Output Connector 2.1 x 5.5 x 12 mm Female Coaxial Plug with Snap-Lock, 2.5 x 5.5 x 12 mm Female Coaxial Plug with Snap-Lock | ||
Input Connector IEC 320 | ||
Number of Outputs 1 | ||
Power Rating 40W | ||
Cable Length 1800mm | ||
Medical Approved Yes | ||
Efficiency 85% | ||
MTBF 100000h | ||
Depth 36.5mm | ||
Width 67mm | ||
Length 107mm | ||
Load Regulation ±1% | ||
Line Regulation Range ±0.5% | ||
Minimum Temperature -20°C | ||
- COO (Country of Origin):
- NO
Mascot 9W to 60W Medical Approved Single Output Switch Mode Desktop Power Supply
Medically approved (EN 60601) external switch mode power supplies
High efficiency
Fully regulated output
Over voltage and short circuit protection
Isolation 4kV input/output
EMC immunity to EN 50082-1, medical EN 60601-1-2
1.8m (approx.) output lead with polarity inverter
2-pin or 3-pin IEC320 input connection
High efficiency
Fully regulated output
Over voltage and short circuit protection
Isolation 4kV input/output
EMC immunity to EN 50082-1, medical EN 60601-1-2
1.8m (approx.) output lead with polarity inverter
2-pin or 3-pin IEC320 input connection
Note
Non Compliant For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
Standards
EN 60950 EN 60601 (UL 2601-1)
Approvals
UL recognised component for Canada and US (12 & 24V only)
Supplied with
2 loose connectors with snap-lock feature, allowing 4 connection options, 2.1x5.5x12mm and 2.5x5.5x12mm female co-ax plugs.
