StarTech.com Terminal Block (2 Wire), Terminal Block (3 Wire) AC-DC Power Adapter AC/DC Adapter 2-Pin 65 W 20V dc

View all AC/DC Adapters

Subtotal (1 unit)*

£96.22

(exc. VAT)

£115.46

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 87 unit(s) ready to ship
  • Plus 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£96.22

*price indicative

RS Stock No.:
248-3065
Distrelec Article No.:
302-52-551
Mfr. Part No.:
ITB20D3250
Brand:
StarTech.com
Find similar products by selecting one or more attributes.
Select all

Brand

StarTech.com

Sub Type

AC-DC Power Adapter

Product Type

AC/DC Adapter

Plug Type

2-Pin

Output Voltage

20V dc

Power

65W

Output Connector Type

Terminal Block (2 Wire), Terminal Block (3 Wire)

Cable Length

1.8m

Number of Outputs

1

Adapter Current

3.25A

Minimum Operating Temperature

0°C

Maximum Operating Temperature

40°C

Width

53mm

Standards/Approvals

CE

Length

115mm

Depth

37mm

Maximum Input Voltage

240V ac

Minimum Input Voltage

110V ac

Series

ITB20D3250

COO (Country of Origin):
CN

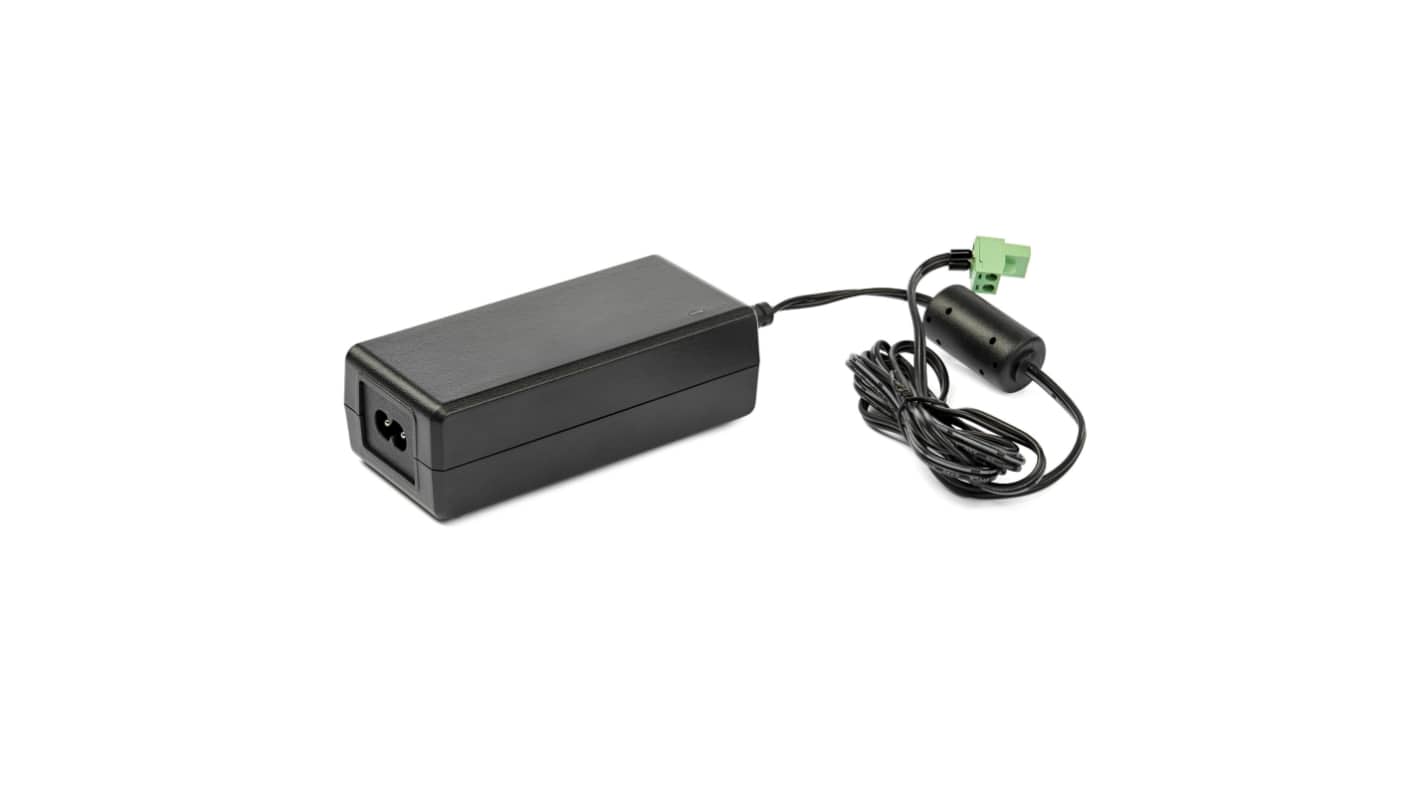

StarTech.com ITB20D3250 Series AC/DC Adapter, 65W Power, 20V Output Voltage - ITB20D3250


This AC/DC adapter converts mains supply to a stable 20V DC output for industrial and equipment power needs. It accepts a wide-range input voltage suited to global installations and provides a single output via Terminal Block connections for integration into control systems and devices.

Features and Benefits:


• 3.25A output current supports steady device operation • 65W power capacity accommodates moderate-load applications • Terminal Block outputs enable secure wiring and quick termination • 110-240V input range allows use on varied mains supplies • 1.8m cable offers flexible placement without extension

Applications


• Suitable for powering automation controllers and PLC interfaces • Ideal for small motor drives requiring a 20V supply • Used with sensor hubs and industrial I/O modules • Can be used for bench test equipment in workshops

What connector options are available for wiring to equipment?


It provides Terminal Block outputs in 2‑wire and 3‑wire formats for direct hardwired connections to control panels and devices.

How does the adapter handle operating temperatures in plant environments?


It is rated for operation between 0°C and 40°C, matching typical indoor industrial ambient ranges.

What approvals indicate suitability for regulated installations?


It has CE and RoHS approvals, demonstrating compliance with relevant European safety and restricted‑substance requirements.

What form factor and plug type should I expect for installation?


The unit uses a 2‑pin plug and a Compact housing with dimensions of 115mm length, 53mm width and 37mm depth to fit constrained spaces.
