RS PRO 140W Plug-In AC/DC Adapter 20V dc Output, 0 → 7A Output
- RS Stock No.:
- 175-2799
- Brand:
- RS PRO
2 In stock - FREE next working day delivery available
3 available from Europe for delivery within 1 working day(s).
Added
Price Each
£78.01
(exc. VAT)
£93.61
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £78.01 |
| 5 - 9 | £75.67 |
| 10 - 24 | £73.33 |
| 25 - 49 | £70.99 |
| 50 + | £68.65 |
- RS Stock No.:
- 175-2799
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

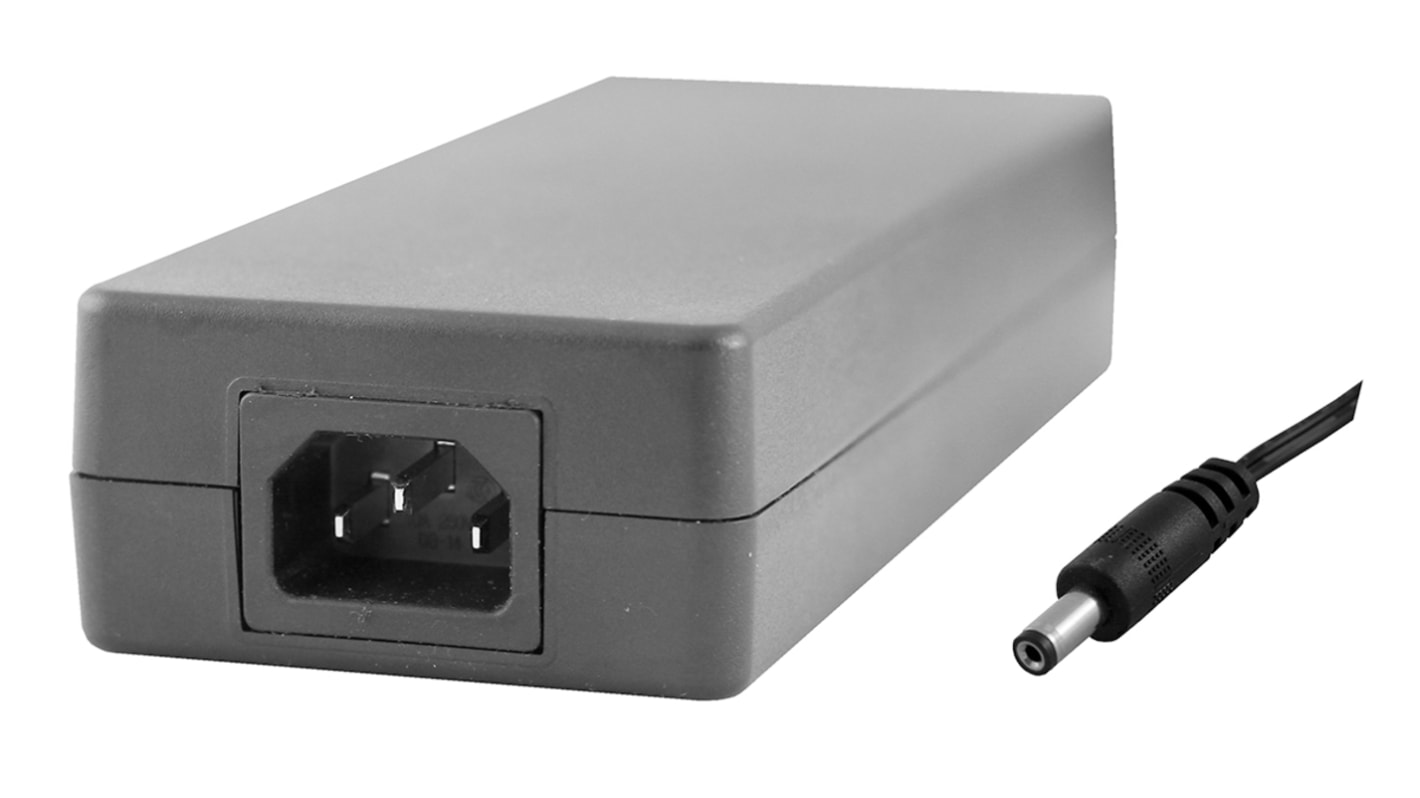

RS PRO 20 V DC Power Supply, 140 W, 0 → 7 A, 3-Pin IEC Connector
This compact switch-mode power supply (SMPS) from RS PRO transforms AC power into a stable output voltage of 20 V DC. It provides 140 W of continuous current, letting you run DC-powered electronic devices through the mains.
The unit consumes minimal power when plugged in but turned off for greater energy savings. To ensure your safety and the longevity of your device, it's equipped with short-circuit and over-voltage protection. This power supply also complies with EN (European Standards/Norms) 55032 for safe emissions and voltage in multimedia equipment.
The unit consumes minimal power when plugged in but turned off for greater energy savings. To ensure your safety and the longevity of your device, it's equipped with short-circuit and over-voltage protection. This power supply also complies with EN (European Standards/Norms) 55032 for safe emissions and voltage in multimedia equipment.
Features and Benefits
• Cable length of 1.2 m
• Efficiency of 88%
• IEC C14 input connector
• Dimensions of 173 (L) x 71 (W) x 37 mm (D)
• Input voltage range of 100 to 240 V AC
• Output current range of 0 to 7 A
• One output
• 2.5 x 5.5 mm output connector
• Operating temperature range of 0°C to +40°C
• Load regulation range of ±5%
• 3-pin IEC plug type
• Efficiency of 88%
• IEC C14 input connector
• Dimensions of 173 (L) x 71 (W) x 37 mm (D)
• Input voltage range of 100 to 240 V AC
• Output current range of 0 to 7 A
• One output
• 2.5 x 5.5 mm output connector
• Operating temperature range of 0°C to +40°C
• Load regulation range of ±5%
• 3-pin IEC plug type
Specifications
Attribute | Value |
|---|---|
| Adapter Type | Plug-In Adapter |
| Plug Type | 3-Pin IEC |
| Output Voltage | 20V dc |
| Input Voltage | 80 → 264V ac |
| Output Current | 0 → 7A |
| Output Connector | 2.5 x 5.5 |
| Input Connector | IEC C14 |
| Number of Outputs | 1 |
| Power Rating | 140W |
| Cable Length | 1.2m |
| Efficiency | 88% |
| Minimum Temperature | 0°C |
| Load Regulation | ±5% |
| Width | 71mm |
| Length | 173mm |
