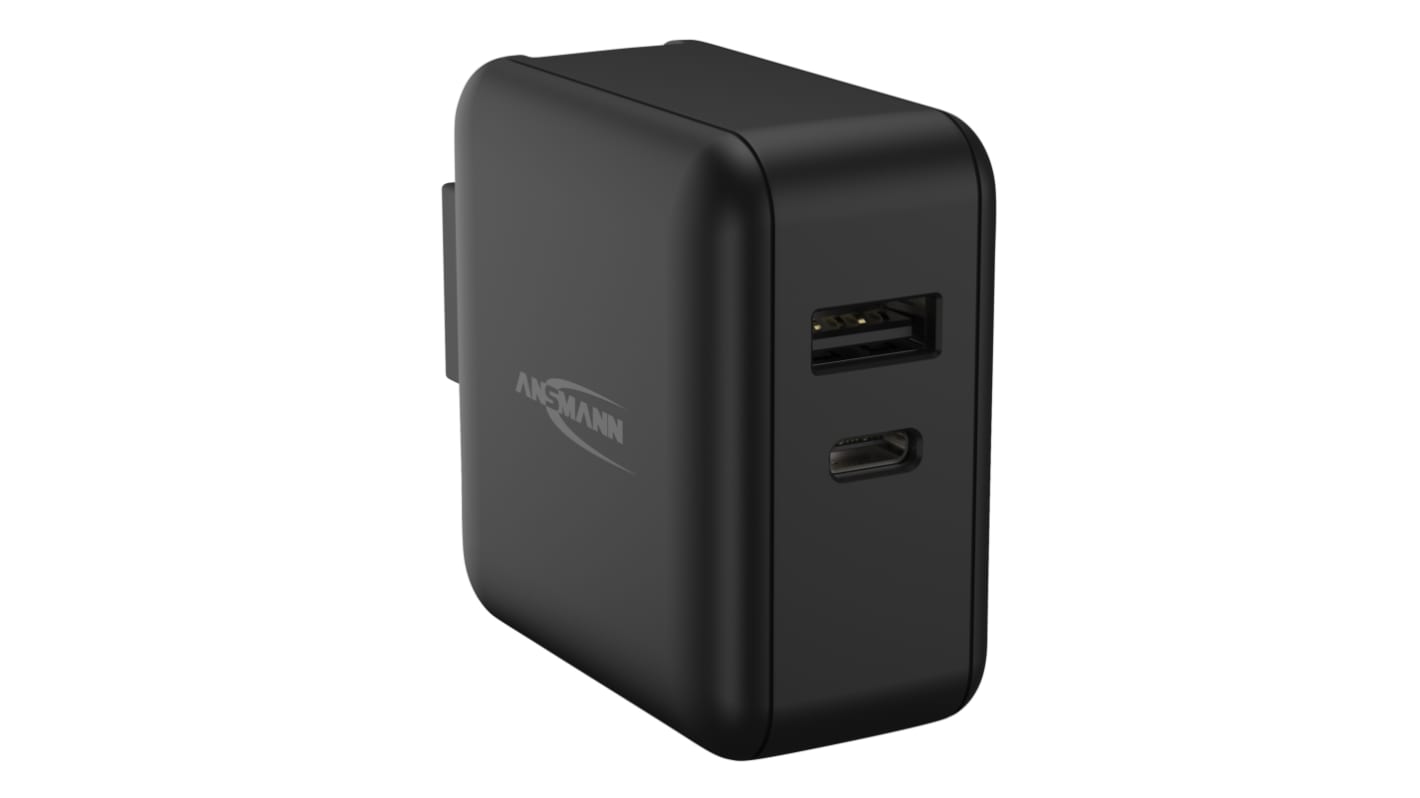

Ansmann 30W Plug-In AC/DC Adapter 5 ⭢ 20V dc Output, 1.5 A, 2.5 A, 2 A, 3 A Output
- RS Stock No.:
- 152-273
- Mfr. Part No.:
- 1001-0140-520
- Brand:
- Ansmann
Subtotal (1 unit)*
£25.55
(exc. VAT)
£30.66
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 25 unit(s) shipping from 22 October 2025
- Plus 30 unit(s) shipping from 19 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £25.55 |
*price indicative
- RS Stock No.:
- 152-273
- Mfr. Part No.:
- 1001-0140-520
- Brand:
- Ansmann
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ansmann | |
Adapter Type | Plug-In Adapter | |
Plug Type | European Plug, UK, US | |
Output Voltage | 5 ⭢ 20V dc | |
Input Voltage | 100 → 240V | |
Output Current | 1.5 A, 2.5 A, 2 A, 3 A | |
Output Connector | USB, USB-C | |
Number of Outputs | 2 | |
Power Rating | 30W | |
Select all | ||
---|---|---|
Brand Ansmann | ||
Adapter Type Plug-In Adapter | ||
Plug Type European Plug, UK, US | ||
Output Voltage 5 ⭢ 20V dc | ||
Input Voltage 100 → 240V | ||
Output Current 1.5 A, 2.5 A, 2 A, 3 A | ||
Output Connector USB, USB-C | ||
Number of Outputs 2 | ||
Power Rating 30W | ||
- COO (Country of Origin):
- CN
TC230PD USB Charger
The TC230PD offers convenience and flexibility to those who need mains power for USB devices. Featuring a fold-out USA plug which doubles as the contacts for other plugs, this item is ideally suited for people travelling thanks to its compact design. The charger features both a smart USB-A port and a more powerful USB-C PD port for compatibility with a broad range of devices.
Features & Benefits
30W maximum output power
2 output ports
USB-A Output: 5V 2.1A max.
USB-C Output: 5-20V, 1.5-3A max.
Protected against Short Circuits, Over Current and Over Voltage
Lightweight and compact form factor for easy carrying
Features fold-out USA mains connection
2 output ports
USB-A Output: 5V 2.1A max.
USB-C Output: 5-20V, 1.5-3A max.
Protected against Short Circuits, Over Current and Over Voltage
Lightweight and compact form factor for easy carrying
Features fold-out USA mains connection
The Ansmann AC/DC Adapter has Extendable US plug and attachable EU and UK plugs with Input voltage of 100 V to 240 V. its No-load power consumption is less than 0.30 W.
CE Approvals
Housing material is PC
Housing material is PC
Note
Includes UK and EU removable mains plugs plus USA plug built-in
