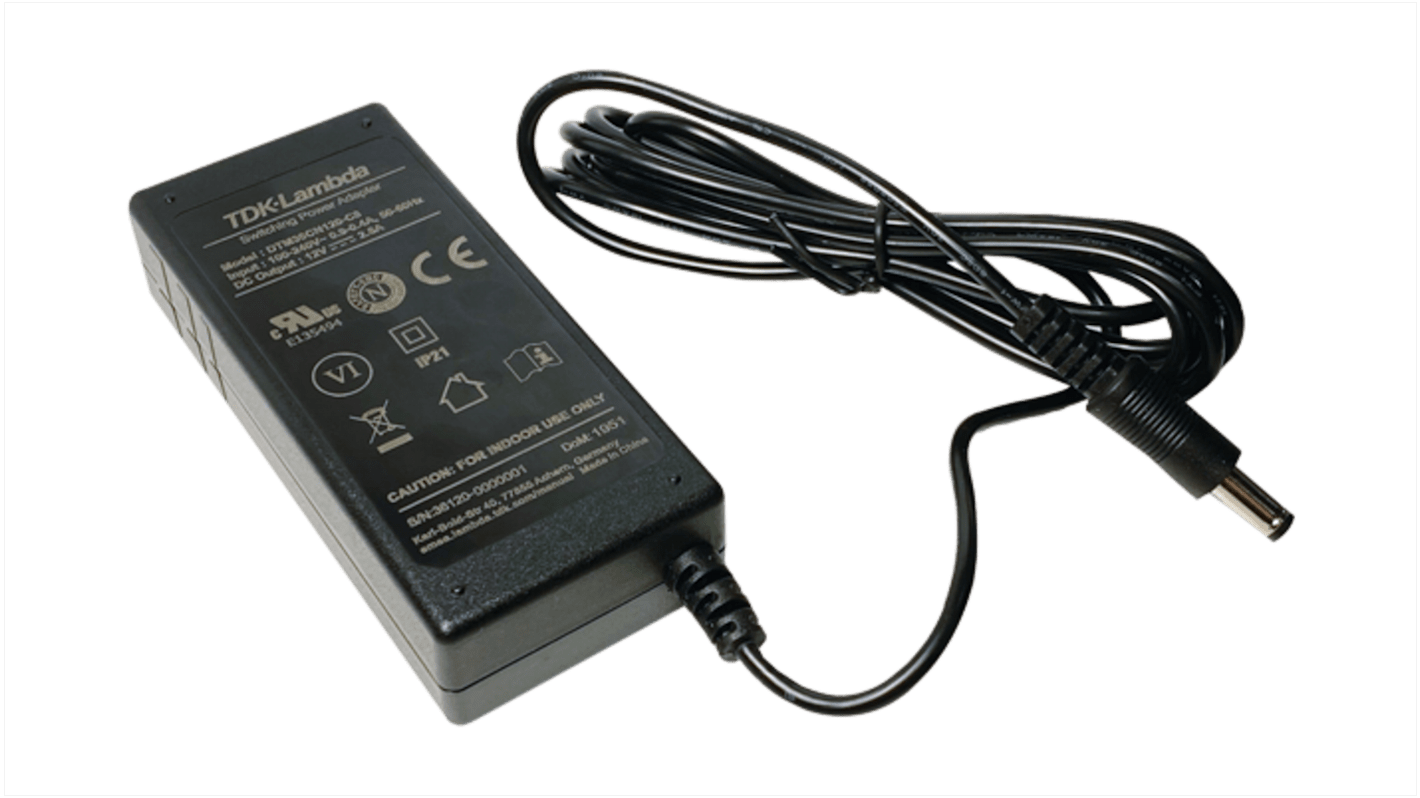

TDK-Lambda 36 W Linear Power Supply AC/DC Adapter IEC 320 C8 24 V dc Output, 5 A
- RS Stock No.:
- 222-8188
- Mfr. Part No.:
- DTM36CN240-C8
- Brand:
- TDK-Lambda
Bulk discount available
Subtotal (1 unit)*
£19.98
(exc. VAT)
£23.98
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £19.98 |
| 5 - 9 | £19.38 |
| 10 - 24 | £18.79 |
| 25 - 49 | £18.18 |
| 50 + | £17.58 |
*price indicative
- RS Stock No.:
- 222-8188
- Mfr. Part No.:
- DTM36CN240-C8
- Brand:
- TDK-Lambda
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK-Lambda | |
| Product Type | AC/DC Adapter | |
| Sub Type | Linear Power Supply | |
| Plug Type | IEC 320 C8 | |
| Output Voltage | 24 V dc | |
| Power | 36W | |
| Output Connector Type | See Model Selector (Options) | |
| Cable Length | 1.8m | |
| Number of Outputs | 5 | |
| Minimum Operating Temperature | -30°C | |
| Input Connector Type | IEC 320-C8 | |
| Adapter Current | 5A | |
| Maximum Operating Temperature | 60°C | |
| Length | 100mm | |
| Depth | 22.5mm | |
| Width | 45 mm | |
| Standards/Approvals | IEC/ES/EN60601-1, IEC61000-3-2, IEC60335-1, EN60601-1-11 | |
| Maximum Input Voltage | 370, 264V dc | |
| Minimum Input Voltage | 127, 90V dc | |
| Series | DTM36-C8 | |
| Select all | ||
|---|---|---|
Brand TDK-Lambda | ||
Product Type AC/DC Adapter | ||
Sub Type Linear Power Supply | ||
Plug Type IEC 320 C8 | ||
Output Voltage 24 V dc | ||
Power 36W | ||
Output Connector Type See Model Selector (Options) | ||
Cable Length 1.8m | ||
Number of Outputs 5 | ||
Minimum Operating Temperature -30°C | ||
Input Connector Type IEC 320-C8 | ||
Adapter Current 5A | ||
Maximum Operating Temperature 60°C | ||
Length 100mm | ||
Depth 22.5mm | ||
Width 45 mm | ||
Standards/Approvals IEC/ES/EN60601-1, IEC61000-3-2, IEC60335-1, EN60601-1-11 | ||
Maximum Input Voltage 370, 264V dc | ||
Minimum Input Voltage 127, 90V dc | ||
Series DTM36-C8 | ||
- COO (Country of Origin):
- TW
The TDK-Lambda DTM36-C8 Series are external power supplies certified to IEC or ES or EN60601-1 and EN60601-1-11, are compliant to EN60601-1-2 and designed to meet IEC60335-1 that is Household Appliances. Requiring no earth ground, the DTM series is ideally suited for medical, clinical and home healthcare applications.
Medical Safety Certifications and Immunity
Class II Input
4kV Input to Output Isolation
Alternative Connectors and Cable Assemblies
