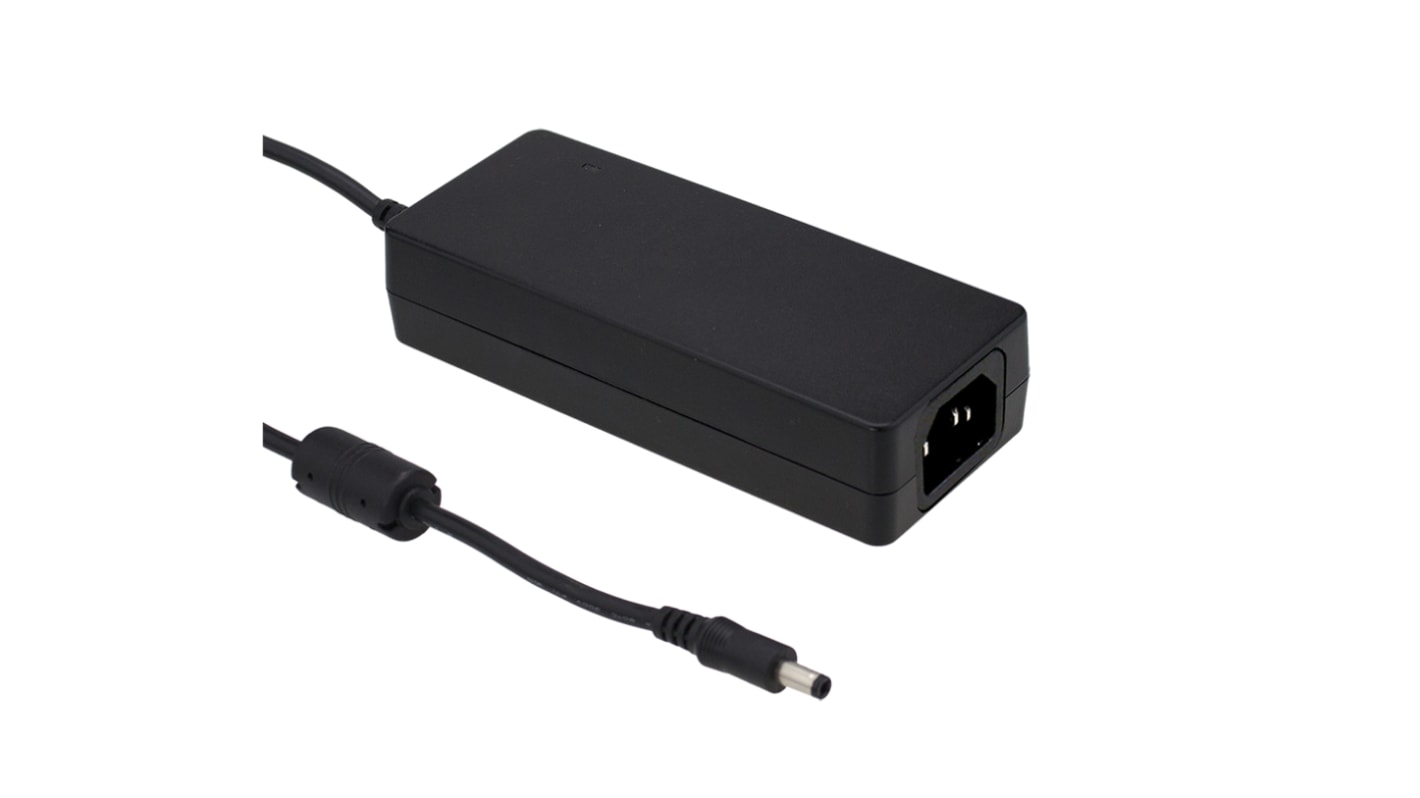

MEAN WELL 90W Power Brick AC/DC Adapter 15V dc Output, 6A Output
- RS Stock No.:
- 189-5021
- Distrelec Article No.:
- 302-96-385
- Mfr. Part No.:
- GSM90A15-P1M
- Brand:
- MEAN WELL
Currently unavailable
Sorry, we don't know when this will be back in stock.
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 189-5021
- Distrelec Article No.:
- 302-96-385
- Mfr. Part No.:
- GSM90A15-P1M
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Adapter Type | Power Brick Adapter | |
| Plug Type | C14 | |
| Output Voltage | 15V dc | |
| Input Voltage | 90 → 264V ac | |
| Output Current | 6A | |
| Maximum Temperature | +70°C | |
| Input Connector | IEC 320-C14 | |
| Number of Outputs | 1 | |
| Power Rating | 90W | |
| Cable Length | 1m | |
| Medical Approved | Yes | |
| Better World Verification | UL Energy Verified | |
| Better World Product | Yes | |
| Efficiency | (Typical) 89% | |
| Minimum Temperature | -30°C | |
| Series | GSM90A | |
| Energy Efficiency Level | VI | |
| Load Regulation | ±5% | |
| Length | 146mm | |
| Width | 60mm | |
| Depth | 32mm | |
Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Adapter Type Power Brick Adapter | ||
Plug Type C14 | ||
Output Voltage 15V dc | ||
Input Voltage 90 → 264V ac | ||
Output Current 6A | ||
Maximum Temperature +70°C | ||
Input Connector IEC 320-C14 | ||
Number of Outputs 1 | ||
Power Rating 90W | ||
Cable Length 1m | ||
Medical Approved Yes | ||
Better World Verification UL Energy Verified | ||
Better World Product Yes | ||
Efficiency (Typical) 89% | ||
Minimum Temperature -30°C | ||
Series GSM90A | ||
Energy Efficiency Level VI | ||
Load Regulation ±5% | ||
Length 146mm | ||
Width 60mm | ||
Depth 32mm | ||
- COO (Country of Origin):
- CN
AC-DC Medical desktop adaptor, Output 15Vdc at 6.0A, AC 3 pole inlet, 2xMOPP, Output connector DIN 4 pole
3 pole AC inlet Class I power unit
Extremely low leakage current
No load power consumption<0.15W
-30∼+70°C wide range working temperature
Protections: Short circuit / Overload / Over voltage / Over temperature
LED indicator for power on
Lifetime > 130 K hours
3 years warranty
Medical computer monitor
Applications
Mobile clinical workstation
Oral irrigator
Portable hemodialysis machine
Breath Machine
Medical computer monitor
Extremely low leakage current
No load power consumption<0.15W
-30∼+70°C wide range working temperature
Protections: Short circuit / Overload / Over voltage / Over temperature
LED indicator for power on
Lifetime > 130 K hours
3 years warranty
Medical computer monitor
Applications
Mobile clinical workstation
Oral irrigator
Portable hemodialysis machine
Breath Machine
Medical computer monitor
