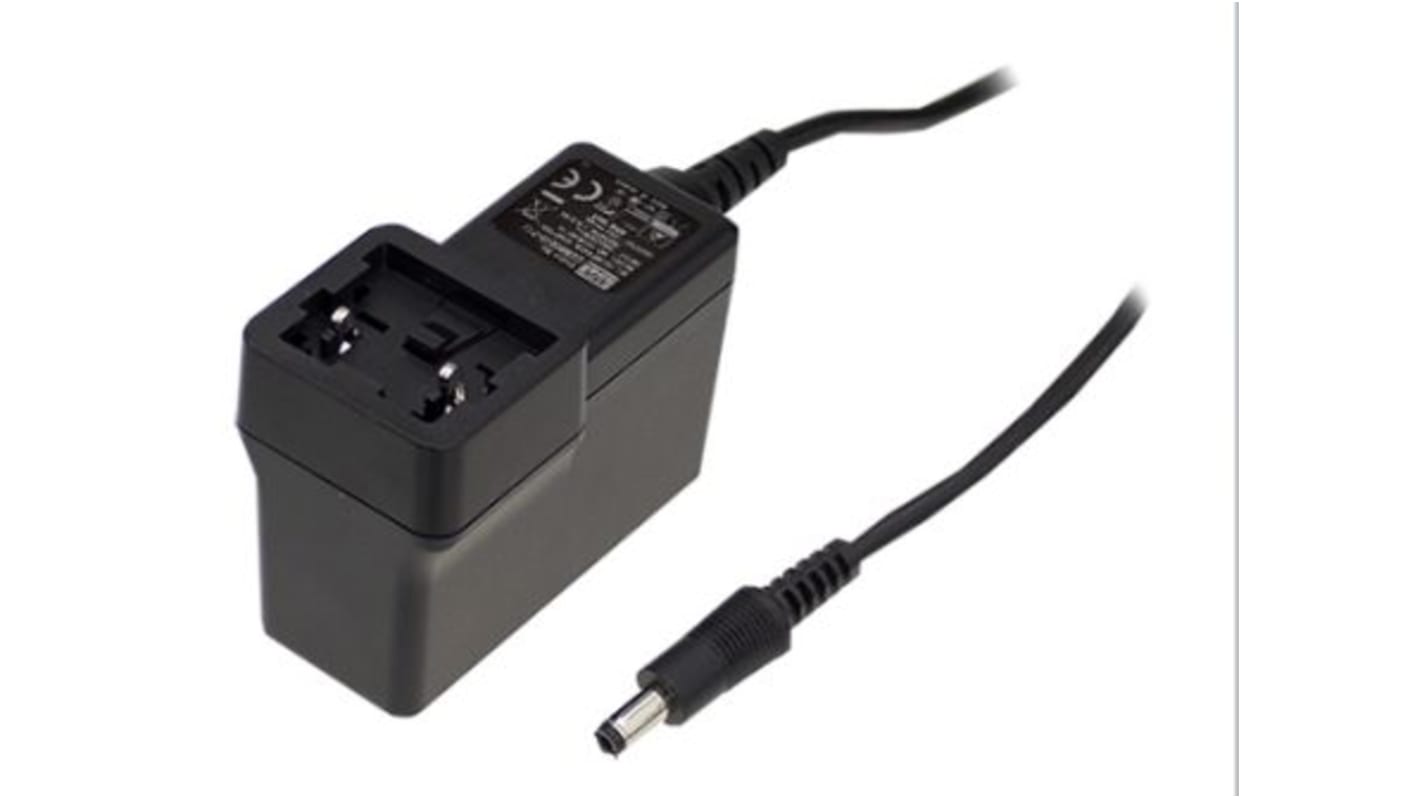

MEAN WELL 30W Plug-In AC/DC Adapter 5V dc Output, 6A Output

RS Stock No.:: 179-2824
Distrelec Article No.:: 303-85-954
Mfr. Part No.:: GEM60I05-P1J
Brand:: MEAN WELL

MEAN WELL 30W Plug-In AC/DC Adapter 5V dc Output, 6A Output

Bulk discount available

Subtotal (1 unit)*

£33.16

(exc. VAT)

£39.79

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

10 unit(s) ready to ship
Plus 1 unit(s) ready to ship from another location
Plus 7 unit(s) shipping from 28 October 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£33.16
5 - 9	£32.17
10 - 24	£31.17
25 - 49	£30.18
50 +	£29.18

*price indicative

RS Stock No.:: 179-2824
Distrelec Article No.:: 303-85-954
Mfr. Part No.:: GEM60I05-P1J
Brand:: MEAN WELL

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	MEAN WELL
	Adapter Type	Plug-In Adapter
	Plug Type	Australia, European, UK, US
	Output Voltage	5V dc
	Input Voltage	100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac
	Output Current	6A
	Maximum Temperature	+70°C
	Output Connector	2.1 x 5.5 x 11 mm Centre Positive
	Input Connector	Universal Plug
	Number of Outputs	1
	Power Rating	30W
	Cable Length	1m
	Medical Approved	Yes
	MTBF	400kh
	Standards Met	CB, CE, cURus, EAC, EN60601, FCC, IEC60601-1, VI
	Length	75.5mm
	Type	AC/DC Adapter
	Series	GEM60I
	Depth	56.2mm
	Energy Efficiency Level	VI
	Width	39.1mm
	Load Regulation	±5%
	Minimum Temperature	-30°C

	Select all
	Brand MEAN WELL
	Adapter Type Plug-In Adapter
	Plug Type Australia, European, UK, US
	Output Voltage 5V dc
	Input Voltage 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac
	Output Current 6A
	Maximum Temperature +70°C
	Output Connector 2.1 x 5.5 x 11 mm Centre Positive
	Input Connector Universal Plug
	Number of Outputs 1
	Power Rating 30W
	Cable Length 1m
	Medical Approved Yes
	MTBF 400kh
	Standards Met CB, CE, cURus, EAC, EN60601, FCC, IEC60601-1, VI
	Length 75.5mm
	Type AC/DC Adapter
	Series GEM60I
	Depth 56.2mm
	Energy Efficiency Level VI
	Width 39.1mm
	Load Regulation ±5%
	Minimum Temperature -30°C

Datasheet

COO (Country of Origin):: CN

Mean Well GEM60I Series Global Plug In Power Supply

The Mean Well GEM series of plug-in power supplies are highly reliable wall-mounted single output green medical adapters. Housed in a flame retardant 94V-0 plastic case, these plug-in power supplies effectively protect users from electrical hazards. The GEM series has been designed with convenience in mind, and its compact size makes transportation simple.

The series is compatible with 4 interchangeable AC plug types:
• European (136-1335),
• UK(136-1333),
• US (136-1336)
• Australian (136-1332)

The GEM series accepts a wide input range of 80 V ac to 264 V ac, enabling these plug-in power supplies to cater to modern medical demands. The GEM series also offers high efficiency ratings of up to 90.5% (depending on model), coupled with an extremely low no-load power consumption below 0.1 W. Mean Well has also integrated a 'supreme' feature into the GEM series, enabling the power supply to save energy when it is either under operating mode or standby mode.

Features and Benefits:

Rated power options between 12 W and 40 W Compliant with EISA 2007/DoE and EU ErP
Interchangeable AC plug (sold separately)
2 x MOPP medical safety approved
Less than 100 μA leakage current
Industry standard protection features such as short circuit, overload and over voltage protection
Class II power (without earth pin)
Fully enclosed plastic casing
Level VI energy efficiency
Optional DC type plug

Product Applications:

This series of plug-in power supplies have medical safety approvals. Suitable applications include blood glucose meters, blood pressure meters, inhalers and nebulisers, sleep apnea devices and portable medical devices.

Standards

Safety: ANSI/AAMI ES60601-1 / 60601-1-11, TUV EN60601-1 / 60601-1-11 approved
EMC Emission: Compliance to EN55011 class B, EN61000-3-2,3, FCC PART 15 / CISPR22 class B
EMC Immunity: Compliance to EN61000-4,-2,3,4,5,6,8,11, light industry level, criteria A
