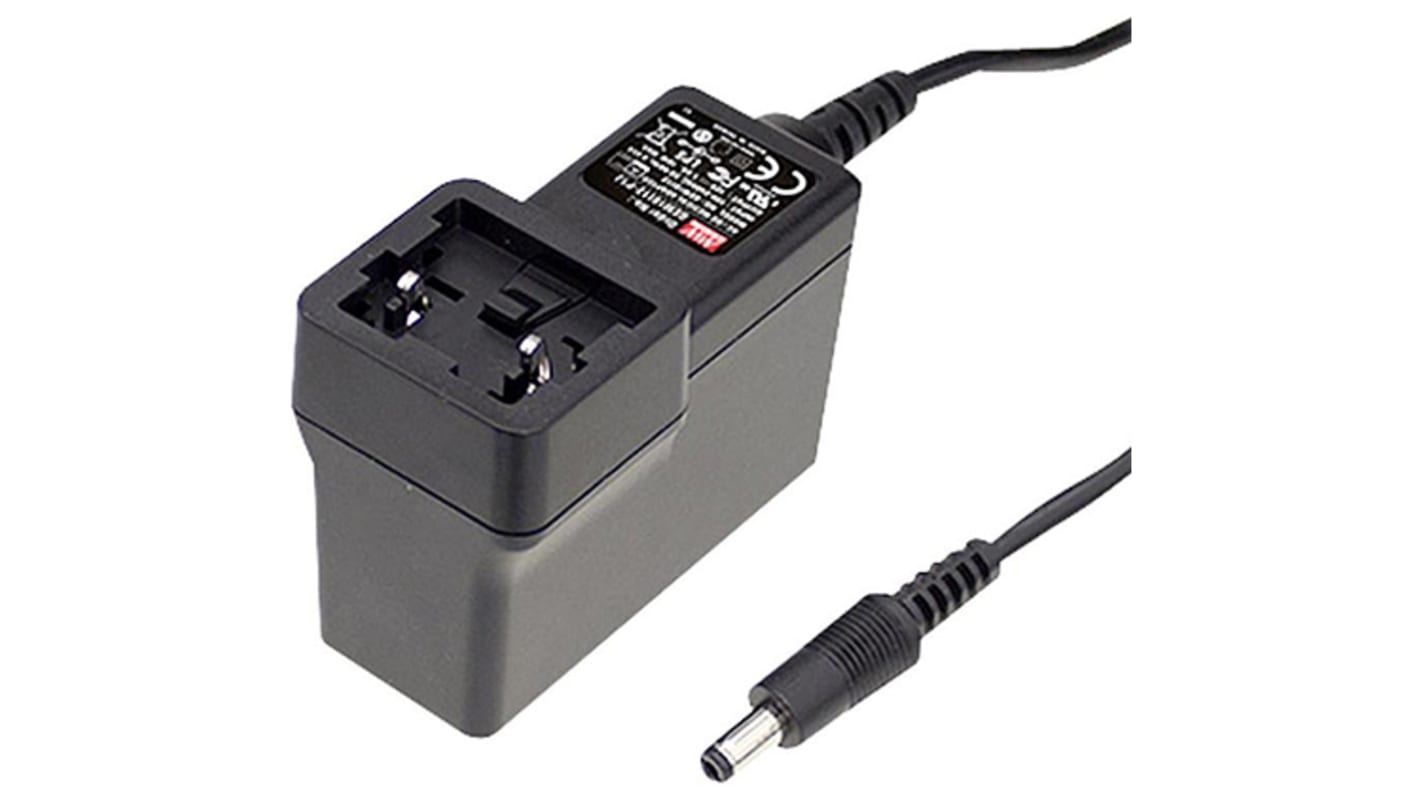

MEAN WELL AC/DC Adapter Australia, EU, UK, US 264V ac Output 1660 mA, 24 V dc

RS Stock No.:: 123-5016
Mfr. Part No.:: GEM40I24-P1J
Brand:: MEAN WELL

MEAN WELL AC/DC Adapter Australia, EU, UK, US 264V ac Output 1660 mA, 24 V dc

Bulk discount available

Subtotal (1 unit)*

£45.07

(exc. VAT)

£54.08

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

11 unit(s) ready to ship from another location
Plus 8 unit(s) shipping from 06 August 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£45.07
5 - 9	£43.72
10 - 24	£42.37
25 - 49	£41.01
50 +	£39.67

*price indicative

RS Stock No.:: 123-5016
Mfr. Part No.:: GEM40I24-P1J
Brand:: MEAN WELL

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	MEAN WELL
	Product Type	AC/DC Adapter
	Plug Type	Australia, EU, UK, US
	Maximum Output Current	1660mA
	Overall Length	39.1mm
	Cable Length	1.5m
	Input Connector Type	Universal Plug
	Maximum Operating Temperature	70°C
	Standards/Approvals	IEC 60950-1, CE, UL 60950-1
	Overall Width	75.5mm
	Maximum Input Voltage	264V ac
	Minimum Output Voltage	24V dc
	Overall Depth	56.2 mm
	Series	GEM40I
	Minimum Input Voltage	100V ac

	Select all
	Brand MEAN WELL
	Product Type AC/DC Adapter
	Plug Type Australia, EU, UK, US
	Maximum Output Current 1660mA
	Overall Length 39.1mm
	Cable Length 1.5m
	Input Connector Type Universal Plug
	Maximum Operating Temperature 70°C
	Standards/Approvals IEC 60950-1, CE, UL 60950-1
	Overall Width 75.5mm
	Maximum Input Voltage 264V ac
	Minimum Output Voltage 24V dc
	Overall Depth 56.2 mm
	Series GEM40I
	Minimum Input Voltage 100V ac

Mean Well GEM40I Series Datasheet

COO (Country of Origin):: CN

Mean Well GEM Series Global Plug In Power Supply

The Mean Well GEM series of plug-in power supplies are highly reliable wall-mounted single output green medical adapters. Housed in a flame retardant 94V-0 plastic case, these plug-in power supplies effectively protect users from electrical hazards. The GEM series has been designed with convenience in mind, and its compact size makes transportation simple.

The series is compatible with 4 interchangeable AC plug types:

• European (136-1335),

• UK(136-1333),

• US (136-1336)

• Australian (136-1332)

The GEM series accepts a wide input range of 80 V ac to 264 V ac, enabling these plug-in power supplies to cater to modern medical demands. ;The GEM series also offers high efficiency ratings of up to 90.5% (depending on model), coupled with an extremely low no-load power consumption below 0.1 W. Mean Well has also integrated a 'supreme' feature into the GEM series, enabling the power supply to save energy when it is either under operating mode or standby mode.

Features and Benefits:

Rated power options between 12 W and 40 W;Compliant with EISA 2007/DoE and EU ErP;Interchangeable AC plug (sold separately);2 x MOPP medical safety approved;Less than 100 μA leakage current;Industry standard protection features such as short circuit, overload and over voltage protection;Class II power (without earth pin);Fully enclosed plastic casing;Level VI energy efficiency;Optional DC type plug

Product Applications:

This series of plug-in power supplies have medical safety approvals. Suitable applications include blood glucose meters, blood pressure meters, inhalers and nebulisers, sleep apnea devices and portable medical devices.

Switch Mode - Mean Well

Standards

Safety: ANSI/AAMI ES60601-1 / 60601-1-11, TUV EN60601-1 / 60601-1-11 approved
EMC Emission: Compliance to EN55011 class B, EN61000-3-2,3, FCC PART 15 / CISPR22 class B
EMC Immunity: Compliance to EN61000-4,-2,3,4,5,6,8,11, light industry level, criteria A
