RS PRO 2.1 x 5.5 x 12 mm Centre Positive - Straight AC-DC Converter Power Supplies AC/DC Adapter 42 W 12V dc Output, 3.5
- RS Stock No.:
- 175-3277
- Brand:
- RS PRO
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£33.10
(exc. VAT)
£39.72
(inc. VAT)
- RS Stock No.:
- 175-3277
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Outputs | 1 | |
| Output Connector Type | 2.1 x 5.5 x 12 mm Centre Positive - Straight | |
| Sub Type | AC-DC Converter Power Supplies | |
| Product Type | AC/DC Adapter | |
| Power | 42 W | |
| Output Voltage | 12 V dc | |
| Adapter Current | 3.5 A | |
| Cable Length | 1.5 m | |
| Depth | 35 mm | |
| Efficiency | 87.66 % | |
| Energy Efficiency Level | VI | |
| Input Connector Type | IEC 320-C14 | |
| Length | 118.5 mm | |
| Load Regulation | ±5 %, ±5 % | |
| Maximum Input Voltage | 240 V ac | |
| Maximum Operating Temperature | 40 °C | |
| Minimum Input Voltage | 90 V ac | |
| Minimum Operating Temperature | 0 °C | |
| Regulated/Unregulated | Regulated | |
| Series | RS PRO | |
| Standards/Approvals | CE, EN 60950-1 | |
| Width | 48.5 mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Outputs 1 | ||
Output Connector Type 2.1 x 5.5 x 12 mm Centre Positive - Straight | ||
Sub Type AC-DC Converter Power Supplies | ||
Product Type AC/DC Adapter | ||
Power 42 W | ||
Output Voltage 12 V dc | ||
Adapter Current 3.5 A | ||
Cable Length 1.5 m | ||
Depth 35 mm | ||
Efficiency 87.66 % | ||
Energy Efficiency Level VI | ||
Input Connector Type IEC 320-C14 | ||
Length 118.5 mm | ||
Load Regulation ±5 %, ±5 % | ||
Maximum Input Voltage 240 V ac | ||
Maximum Operating Temperature 40 °C | ||
Minimum Input Voltage 90 V ac | ||
Minimum Operating Temperature 0 °C | ||
Regulated/Unregulated Regulated | ||
Series RS PRO | ||
Standards/Approvals CE, EN 60950-1 | ||
Width 48.5 mm | ||
- COO (Country of Origin):
- CN

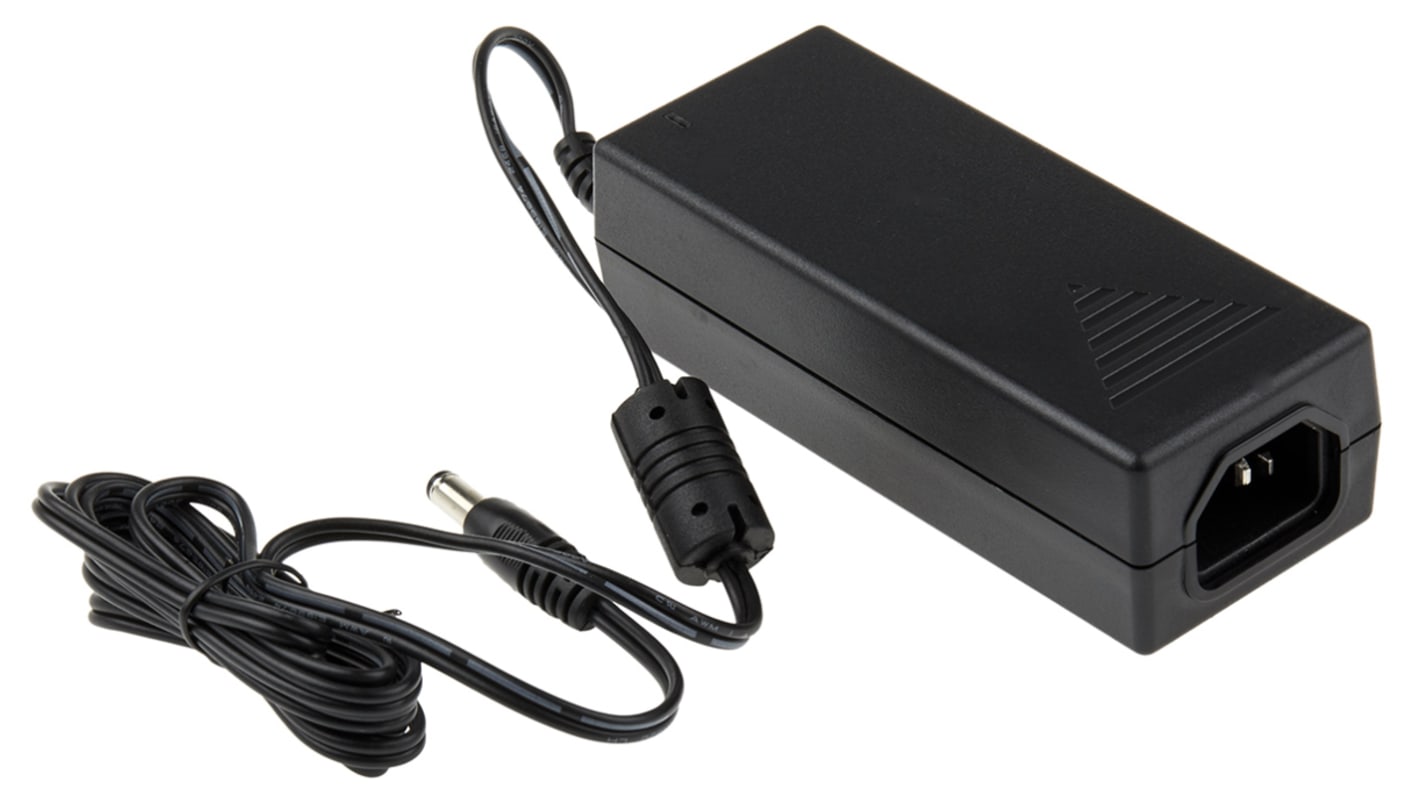

RS PRO 12 V DC Power Supply, 42 W, 3.5 A
This 42 W RS PRO switch-mode power supply (SMPS) offers a reliable way to keep your DC-compatible equipment running. It supports input voltages from 100 to 240 V AC so that you can use it in many countries worldwide.
The power supply's 1.5-metre cable lets you power devices in spaces with limited socket access. The unit's also designed to protect against overload, over-voltage and short circuits to ensure your safety and that of the device.
This product has been built to comply with RoHS (Restriction of Hazardous Substances) safety standards, so it contains only minimal levels of any restricted hazardous materials. You can use it with items like games consoles and laptops.
Features and Benefits
• Efficiency of 87.66%
• Energy Efficiency Level VI
• Input frequency range of 50 to 60 Hz
• Line regulation range of ±5%
• Load regulation range of ±5%
• Maximum input current of 500 mA
• Operating temperature range of 0°C to +40°C
• Output current range of 3.5 A
• Output voltage rating of 12 V DC
• Length of 118.5 mm
• Width of 48.5 mm
• Depth of 35 mm
• Ripple and noise of 150 mV
• Desktop mounting type
• Single output
• C14 series
